Falcon™ 4-CLHS Series Technical Specifications  101

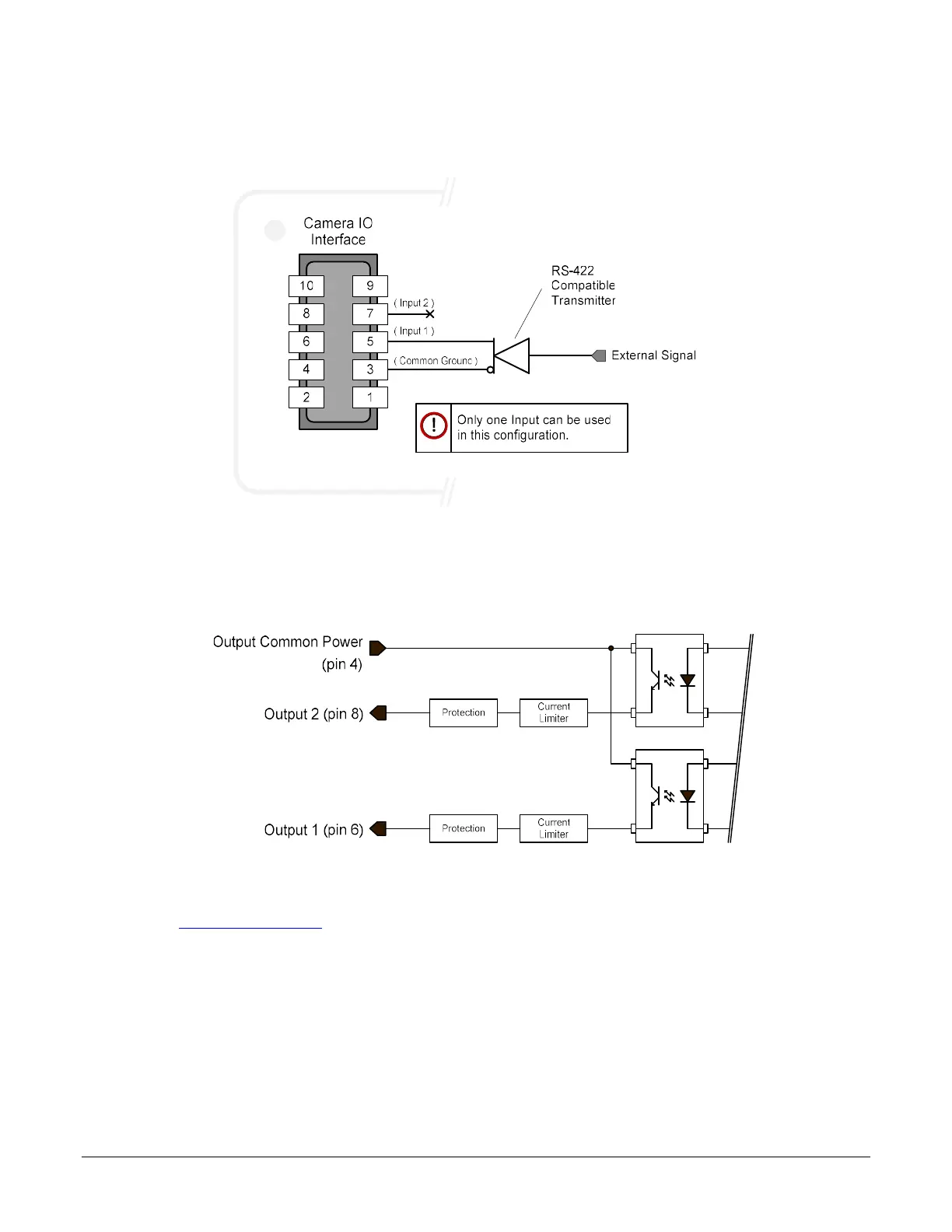

External Inputs: Using a Balanced Driver
 Warning: Only one External Signal can be used (input 1 or input 2).
Output Signals Electrical Specifications
External Outputs Block Diagram
External Output Details and DC Characteristics
 Programmable output mode such as strobe, event notification, etc.
(see outputLineSource feature)
 Outputs are open on power-up with the default factory settings
 A software reset will not reset the outputs to the open state if the outputs are closed
 A user setup configured to load on boot will not reset the outputs to the open state if the
outputs are closed
 No output signal glitch on power-up or polarity reversal
 Typical Operating Common Power Voltage Range: +3V to 28Vdc at 24mA
 Maximum Common Power Voltage Range : ±30Vdc
 Maximum Output Current: 36mA
