Dalsa Falcon 4-CLHS Series User Manual
4
of 1
of 1 rating
124 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
34
Operational
Reference
Falcon™ 4-CLHS
Series

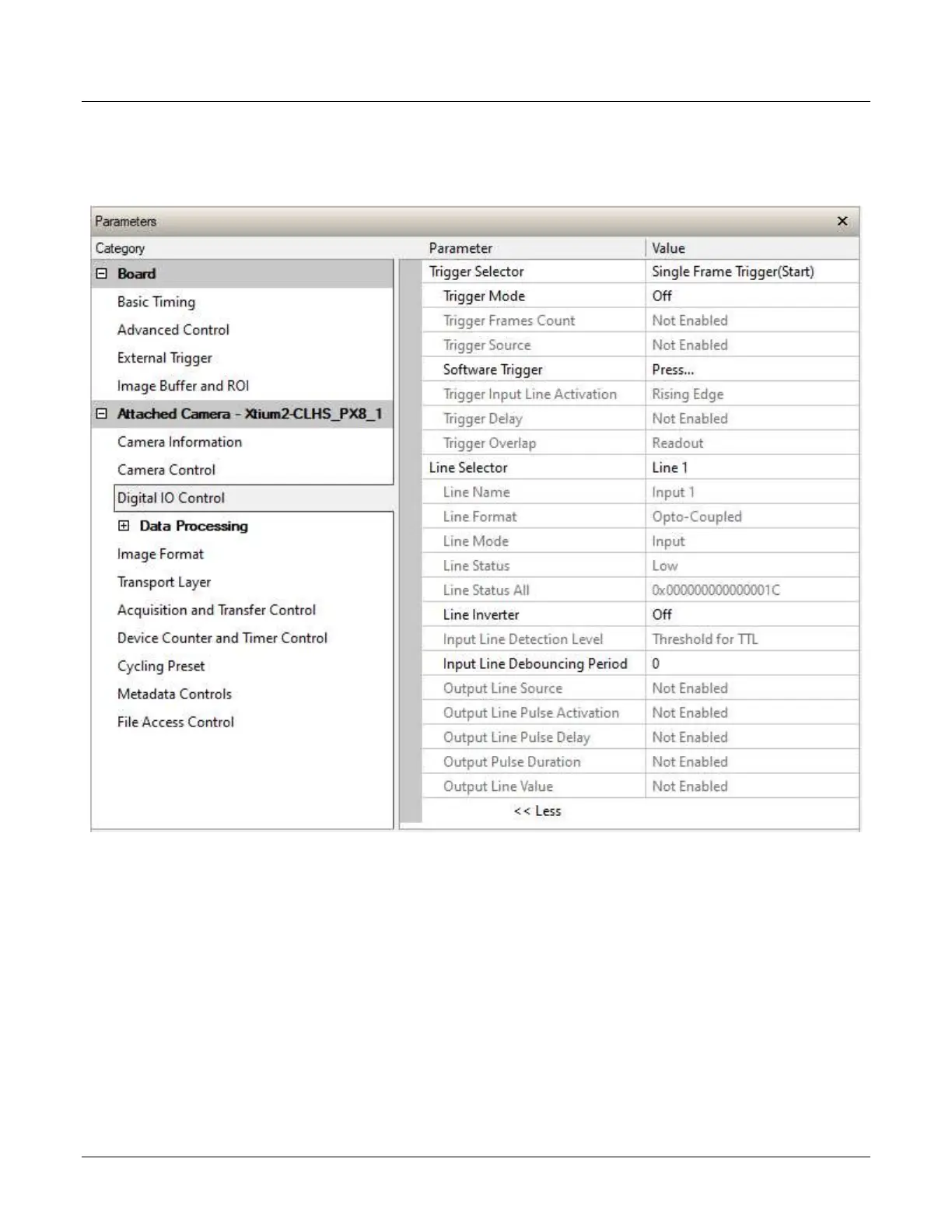

Digital IO Control Category
The Digital I
O Cont
rol cat
egory, as
shown b
y Cam
Expert, gr
oups f
eatures
used to c
onfigu
re
acquisition
action
s base
d on those i
nputs.
35
37
Table of Contents
Table of Contents
3
Series Overview
7
Description
7
Falcon4-CLHS Overview
7
Model Part Numbers
8
Monochrome Cameras
8
Supported Teledyne DALSA Frame Grabbers
8
Camera Firmware
8
Accessories
9
Hardware and Software Environments
10
Mounting
10
Frame Grabbers and Cabling
10
Software Platforms
10
Development Software for Camera Control
10
Falcon4-Clhs Specifications
11
Common Specifications
11
Sensor Cosmetic Specifications
12
Falcon4-CLHS Specifications: M4480, M4400
13
Quantum Efficiency Curves M4480, M4400
14
Spectral Responsivity
14
Effective Quantum Efficiency
14
Falcon4-CLHS Specifications: M8200
15
Quantum Efficiency Curves M8200
16
Spectral Responsivity
16
Effective Quantum Efficiency
16
Installation
17
Requirements
17
Frame Grabber and Cables
17
Camera Link HS Cables
17
Camera Power
17
Software, Firmware and Device Driver Downloads
18
Quick Start (Using a Teledyne DALSA Frame Grabber)
19
Installation Details
20
Sapera LT Installation
20
Board Driver Installation
20
Testing Acquisition
21
Start Camexpert
21
Upload Camera Firmware
21
Verify Basic Acquisition
22
Falcon4-CLHS Connectors and Status LED
23
Connectors
23
LED Indicators
24
Camera Status LED Indicator
24
Preventing Operational Faults Due to Esd
25
Operational Reference
26
Using Camexpert with Falcon4-CLHS
26
Camexpert Panes
26
Camexpert View Parameters Option
27
Camera Feature Categories
28
Camera Information Category
29
Camera Information Feature Descriptions
29
Power-Up Configuration Dialog
32
Camera Power-Up Configuration
32
Load / Save Configuration
32
Camera Control Category
33
Camera Control Feature Descriptions
33
Long Exposure Mode, Time Exposure, Fast Readout Mode, and Gain
35
Digital Io Control Category
36
Digital IO Control Feature Descriptions
37
I/O Module Block Diagram
39
Trigger Mode Details
40
Trigger Source Types (Trigger Mode = On)
40
Trigger Overlap: Feature Details
41
Data Processing Category
42
Data Processing Feature Descriptions
43
FPN Correction
44
Performing an FPN Setup Via Sapera Camexpert
45
FPN Correction
45
Defective Pixel Replacement
49
Example User Defective Pixel Map XML File
49
Monochrome Defective Pixel Replacement Algorithm Description
50
Lens Shading Correction Category
51
Lens Shading Correction Feature Descriptions
51
Lens Shading Calibration
52
Lut Category
53
LUT Feature Description
53
Lookup Table (LUT) Overview
54
LUT Size Vs. Pixel Format
54
Image Format Control Category
55
Image Format Control Feature Description
56
Width and Height Features for Partial Scan Control
58
Vertical Cropping (Partial Scan)
58
Maximum Frame Rate Examples
59
Horizontal Cropping (Partial Scan)
59
Multiple Rois
61
Binning Function
62
Internal Test Pattern Generator
63
Transport Layer Category
64
Transport Layer Feature Descriptions
64
Acquisition and Transfer Control Category
65
Acquisition and Transfer Feature Descriptions
65
Acquisition Buffering
66
Features that Cannot be Changed During a Transfer
66
Device Counter and Timer Control Category
67
Device Counter and Timer Control Feature Descriptions
68
Counter and Timer Group Block Diagram
71
Example: Counter Start Source = off
72
Example: Counter Start Source = Counterend (Itself)
72
Example: Counterstartsource = EVENT and Signal (Edge Base)
73
Example: Counterstartsource = Line (Edge Base) Example
73
Cycling Preset Category
74
Cycling Preset Mode Feature Description
74
Using Cycling Presets-A Simple Example
77
Multi-Exposure Cycling Example Setup
77
Cycling Reset Timing Details
78
Case 1: Cycling with Internal Synchronous Increment
78
Case 2: Cycling with External Asynchronous Increment
79
Using Cycling Presets with Output Controls
80
Feature Settings for this Example
80
Cycling Mode Constraints with Changing Rois
81
Metadata Controls Category
82
Metadata Controls Feature Description
82
Extracting Metadata Stored in a Sapera Buffer
83
Metadata Structure
83
Metadata Availability
85
Digital Gain (Raw)
85
Analog Gain (Raw)
86
File Access Control Category
87
File Access Control Feature Descriptions
87
Updating Firmware Via File Access in Camexpert
89
Implementing Trigger-To-Image Reliability
90
Overview
90
T2IR with Falcon4-CLHS
90
Features for T2Ir Monitoring
91
Technical Specifications
92
Falcon4-CLHS Identification and Mechanical
92
Temperature Management
92
Mechanical Specifications with M42 Mount
93
Sensor Alignment Specification
95
Connectors
96
Camera Link HS (CX4)
96
10-Pin I/O Connector Details
96
Pinout Details for FA-HM00-M4485
97
Pinout Details for FA-HM10-M4485, FA-HM11-M4405, FA-HM10-M8205
97
Camera DC Power Characteristics
97
I/O Mating Connector Specifications & Sources
98
Input Signals Electrical Specifications
100
External Input Details
100
External Input DC Characteristics
100
External Input AC Timing Characteristics
101
External Inputs: Using TTL/LVTTL Drivers
101
External Inputs: Using Common Collector NPN Drivers
102
External Inputs: Using Common Emitter NPN Driver
102
External Inputs: Using a Balanced Driver
103
Output Signals Electrical Specifications
103
External Output Details and DC Characteristics
103
External Output AC Timing Characteristics
104
External Outputs: Using External TTL/LVTTL Drivers
106
External Outputs: Using External LED Indicators
106
Using Falcon4 Outputs to Drive Other Falcon4 Inputs
108
Declarations of Conformity
109
FCC Statement of Conformance
109
FCC Class a Product
109
EU and UKCA Declaration of Conformity
109
Additional Reference Information
110
Choosing a Lens with the Correct Image Circle
110
Lens Options for Models with M42 Mounts
110
Additional Lens Parameters (Application Specific)
111
Optical Considerations
112
Illumination
112
Light Sources
112
Back Focal Variance When Using any Filter
113
Lens Modeling
114
Magnification and Resolution
114
Sensor Handling Instructions
115
Electrostatic Discharge and the Sensor
115
Protecting against Dust, Oil and Scratches
115
Cleaning the Sensor Window
116
I/O Cable Accessories
117
Cable Manufacturers Contact Information
117
Cable Assembly G5-AIOC-BLUNT2M
118
Generic Power Supply with no I/O
120
Troubleshooting
121
Overview
121
Problem Type Summary
121
Before Contacting Technical Support
121
Device Available with Operational Issues
121
Firmware Updates
121
Power Failure During a Firmware Update-Now What
122
Cabling and Communication Issues
122
Camera Is Functional, Frame Rate Is as Expected, but Image Is Black
122
Revision History
123
Contact Information
124
Sales Information
124
Technical Support
124
