104  Technical Specifications Falcon™ 4-CLHS Series

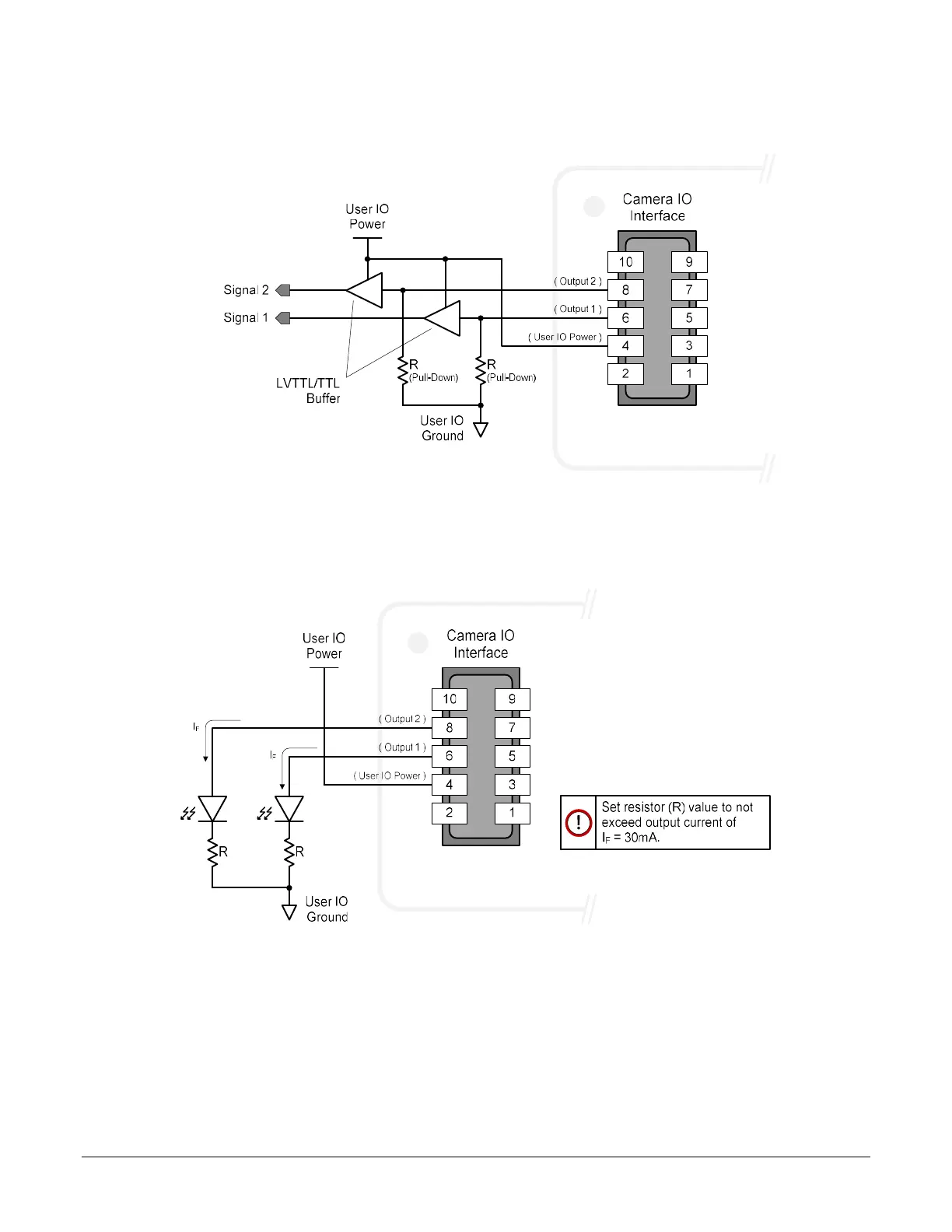

External Outputs: Using External TTL/LVTTL Drivers

External Outputs: Using External LED Indicators

 Two external LEDs can be connected in the Common Cathode configuration.
