Falcon™ 4-CLHS Series Installation  21

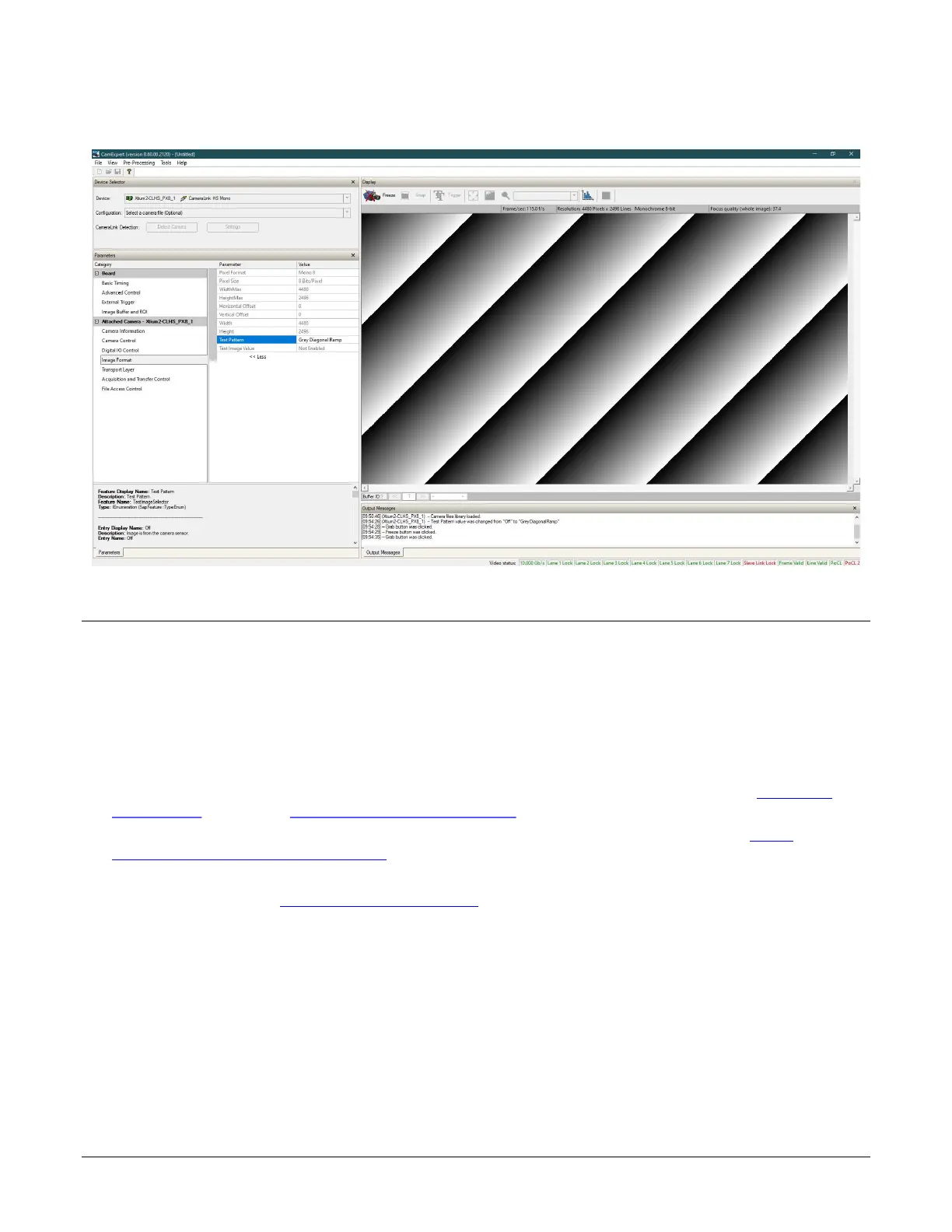

 Click Grab to view the diagonal ramp acquisition.
Falcon4-CLHS Connectors and Status LED
Connectors
The Falcon4-CLHS has connectors for CX4 data/control and I/O:
 A 10 pin I/O (Samtec) connector for camera power, trigger, strobe and general I/O signals.
The connector supports a retention latch, while additionally the case supports an I/O cable with
locking thumbscrews. Teledyne DALSA provides optional cables for purchase (see I/O Cable
Accessories). Also see 10-pin I/O Connector Details for pin out specifications.
 A CX4 cable connector supporting the CLHS data output and control signals. See Cable
Manufacturers Contact Information for a variety of CX4 cables.
The following figure of the Falcon4-CLHS back shows connector and LED locations along with
identification labels. See Mechanical Specifications for details on the connectors and camera
mounting dimensions.
