Dalsa Falcon 4-CLHS Series User Manual

Falcon™ 4-CLHS Series Operational Reference  51
LUT Category

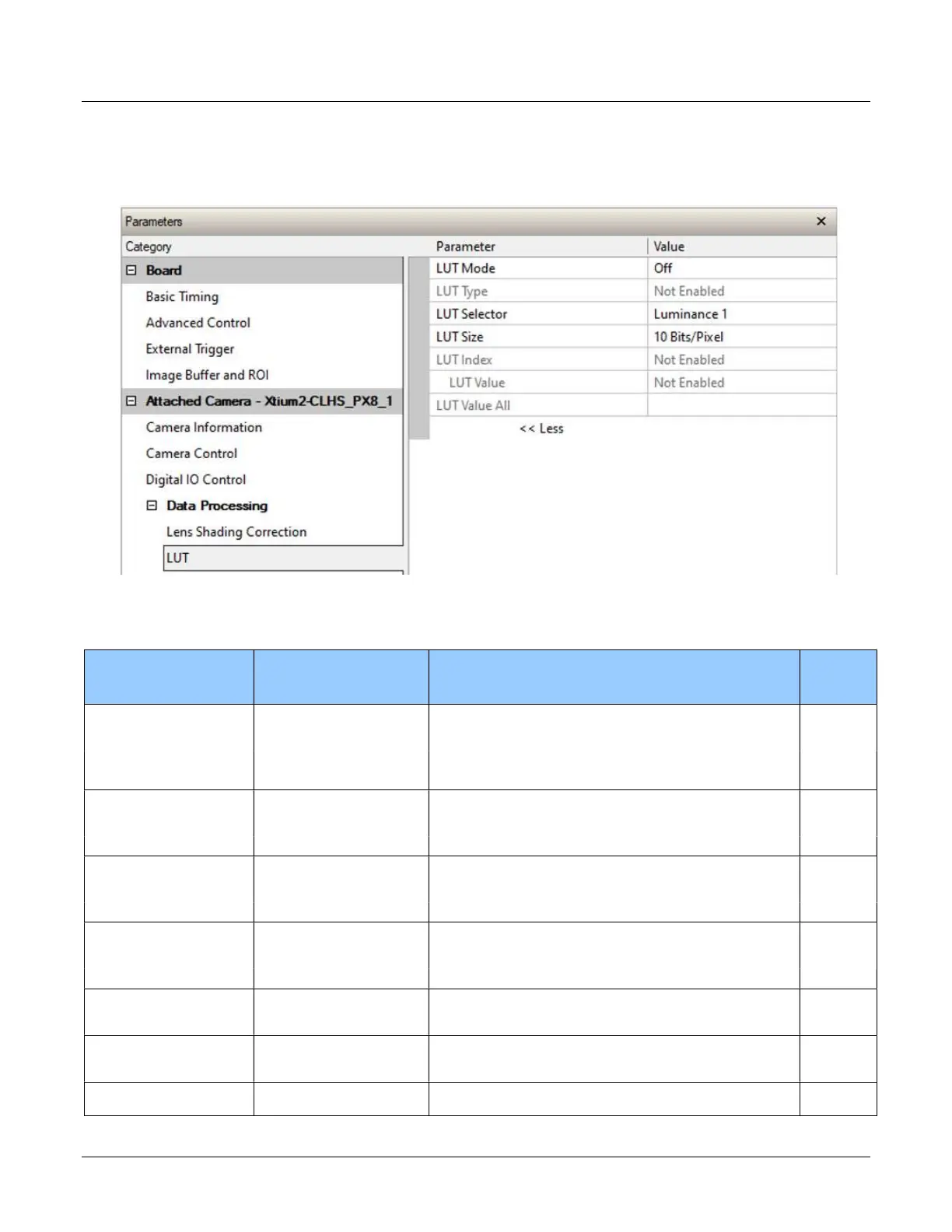

The LUT category, as shown by CamExpert, groups parameters used to configure LUT mode
controls on monochrome cameras.
LUT Feature Description
Display Name Feature & Values Description
Device
Version
& View
LUT Mode lutMode Sets the enable state of the LUT module (Lookup Table). 1.02
Expert
DFNC
Off Off Disables the LUT.
Active Active Enables the LUT module.
LUT Type lutType Displays the LUT type of the currently selected Lookup Table.
1.02
Expert
DFNC
User Defined UserDefined Uses the user programmable LUT.
LUT Selector LUTSelector Selects which LUT to control and adjust features. 1.02
Guru
DFNC
Luminance 1 Luminance1 Luminance 1 is under control.
LUT Size lutSize Specify the LUT size of the selected LUT (Lookup Table). 1.02
Gugu
DFNC
10 Bits/Pixel Bpp10 10 bits per pixel.
LUT Index LUTIndex Select the LUT index.
1.02
Guru
DFNC
LUT Value LUTValue Returns the value at specified LUT index entry of the LUT
selected by the LUT Selector feature.
1.02
Guru
DFNC
LUT Value All LUTValueAll Accesses all the LUT coefficients in a single access without using
individual LUT indices.
1.02
Guru
