Cycling Reset Timing Details
This section describes the cycling function with two cycling feature configurations. These
configurations (or cases) are dependent on the cycling preset increment source as follows:
 Internal Synchronous Increment: the preset increment source is either a Start of Frame or
Valid Frame Trigger event (cyclingPresetIncrementalSource = StartOfFrame or
ValidFrameTrigger).
 External Asynchronous Increment: the preset increment source is either a Counter 1 End
event, a Line2 signal, or None (cyclingPresetIncrementalSource = Counter1End or Line2 or
cyclingPresetCurrentActiveSet).
Case 1: Cycling with Internal Synchronous Increment

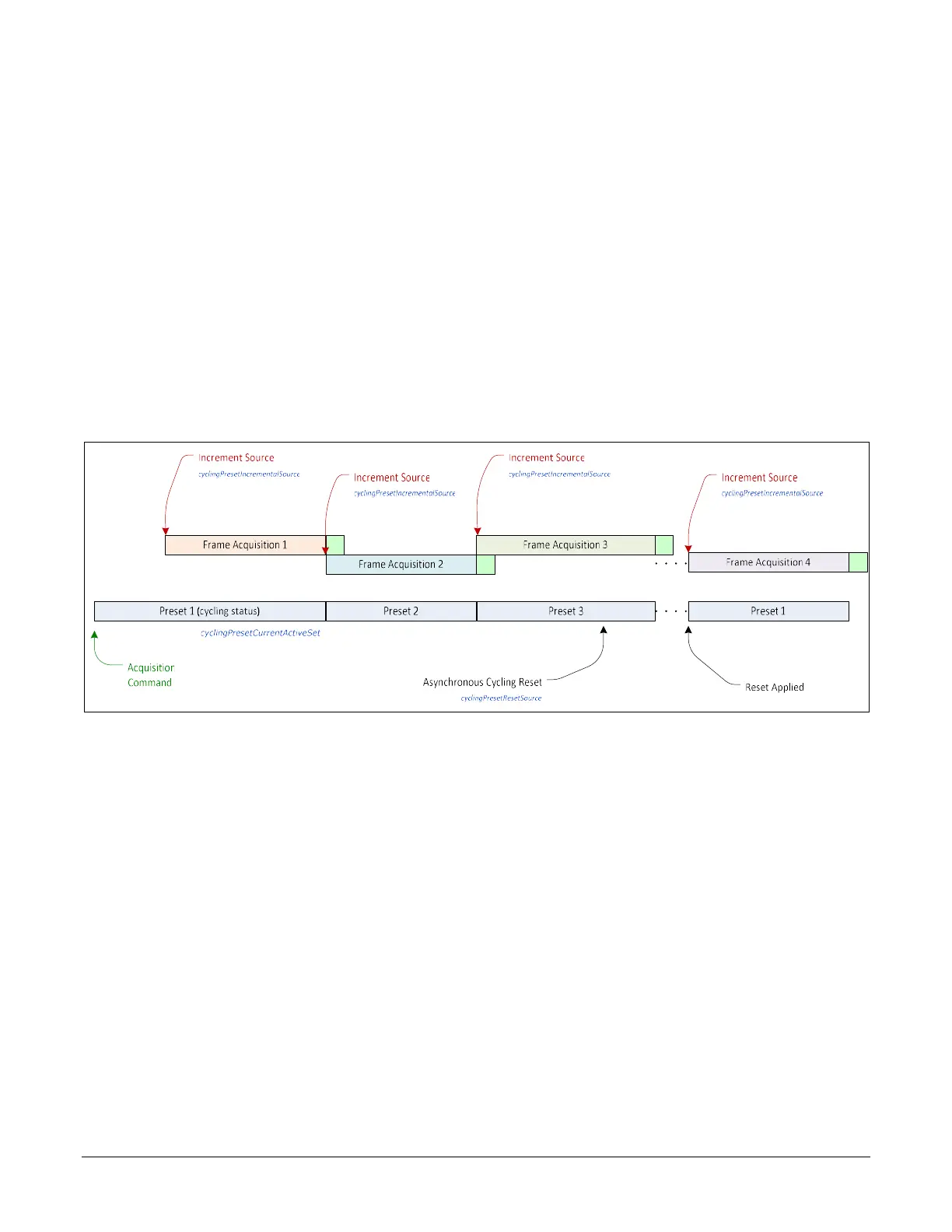

With an Internal Synchronous Cycling Increment, a cycling reset command will execute on the next
cycling increment event.
