Dalsa Falcon 4-CLHS Series User Manual

Falcon™ 4-CLHS Series Technical Specifications  93
Sensor Alignment Specification

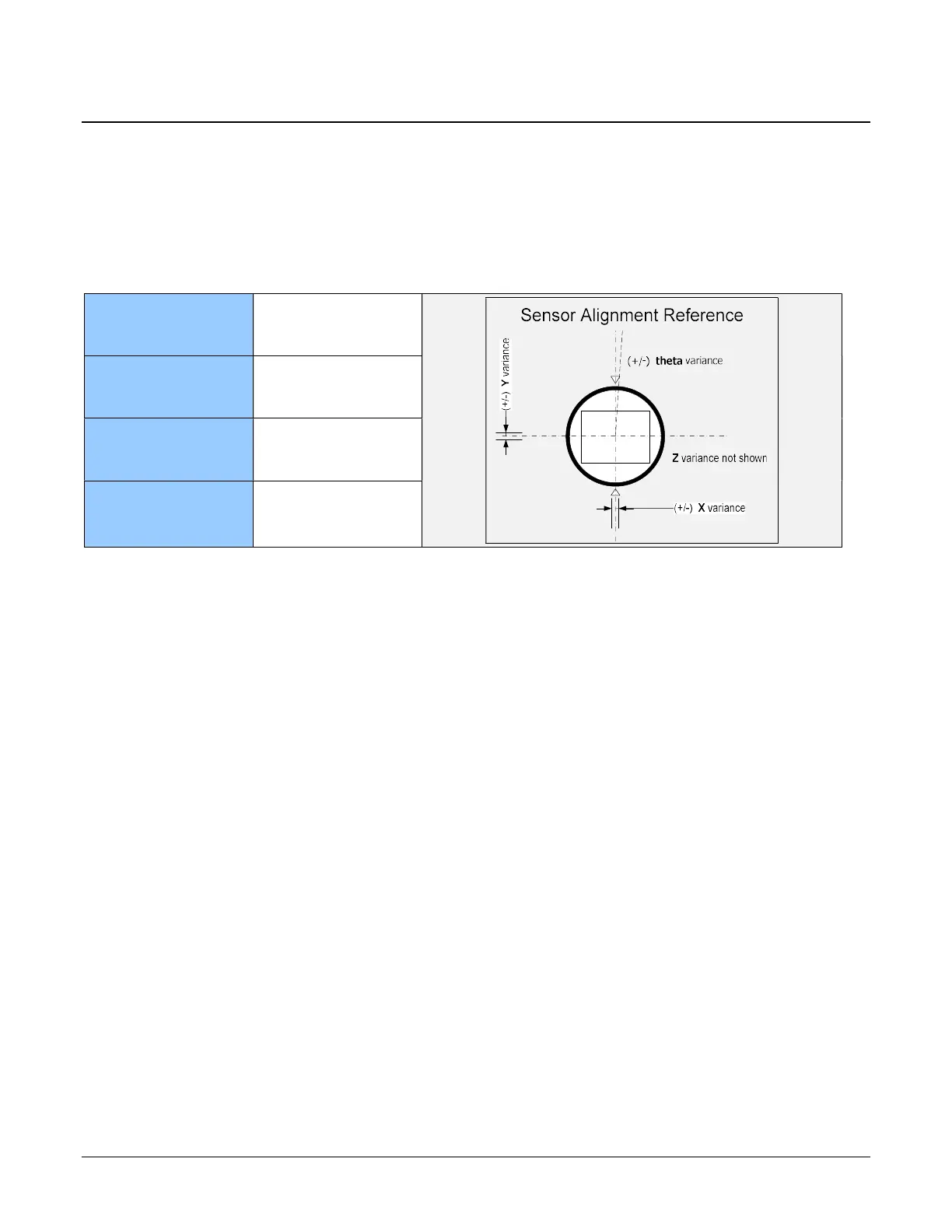

The following figure specifies sensor alignment for Falcon4 where all specifications define the
absolute maximum tolerance allowed for production cameras. Dimensions X, Y, Z, are in microns
and referenced to the Falcon4 mechanical body or the optical focal plane (for the Z-axis
dimension). Theta specifies the sensor rotation relative to the sensor’s center and Falcon4
mechanical.
X variance
+/- 100 microns
Y variance
+/- 100 microns
Z variance
+/- 300 microns
Theta variance
+/- 1 degree
