20  Installation Falcon™ 4-CLHS Series

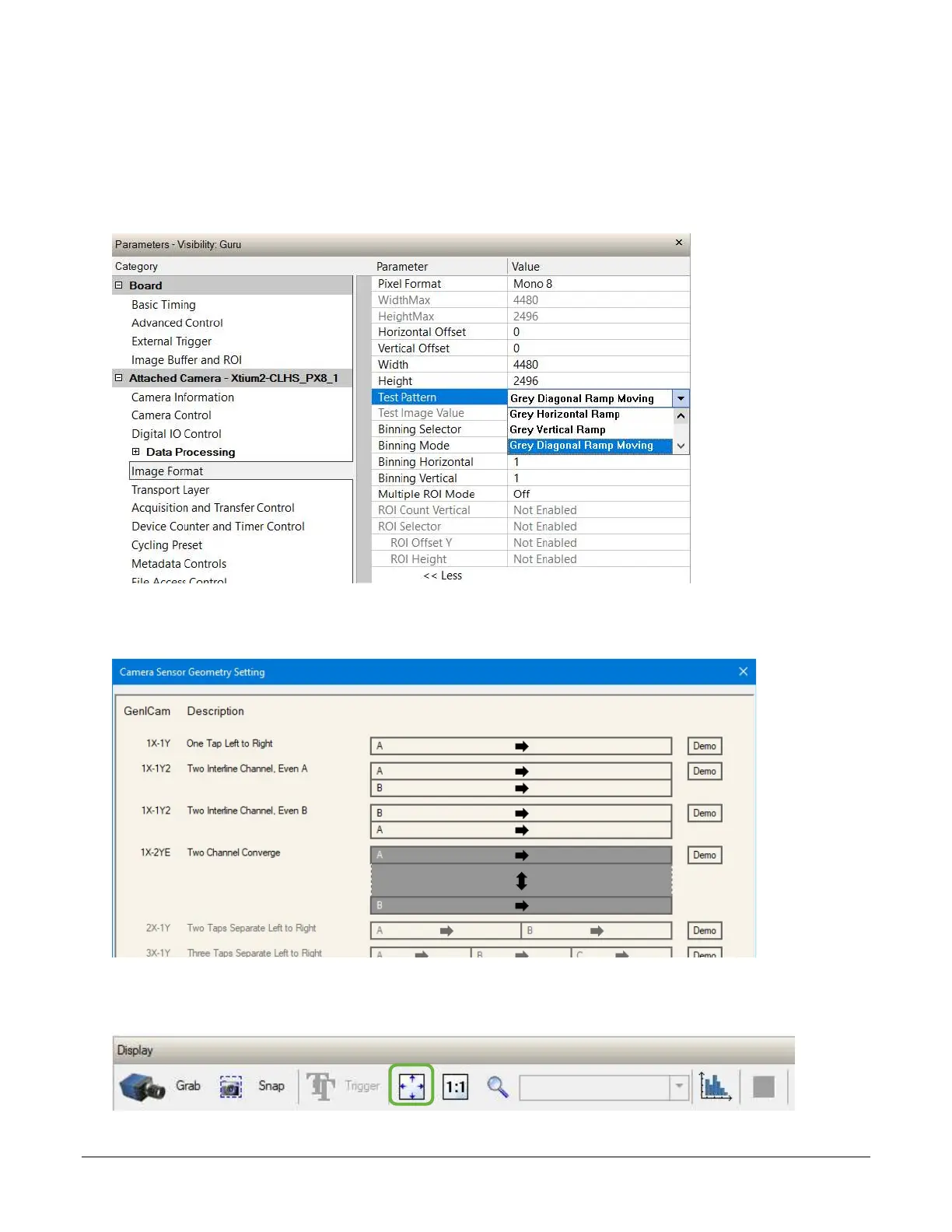

Verify Basic Acquisition
To verify basic acquisition, the camera can output a test pattern to validate that parameter settings
are correctly configured between the camera and frame grabber.
 In the Image Format category, select Test Pattern – Grey Diagonal Ramp Moving.
 (For model M8200 only) In the Basic Timing board category, click the Camera Sensor Geometry
Setting value, and select 1X-2YE Two Channel Converge as depicted.
 On the Display toolbar, click Fit to Screen to view the complete acquisition in the display
window (the actual acquisition data is unmodified).
