Dalsa Falcon 4-CLHS Series User Manual

Falcon™ 4-CLHS Series Operational Reference  69
Timer Duration timerDuration Sets the duration (in microseconds) of the timer pulse.
1.00
Beginner
DFNC
Timer Value timerValue Reads the current value (in microseconds) of the selected
timer.
1.00
Beginner
DFNC
Timer Reset timerReset
Resets the timer to 0 while timerStatus=TimerActive.
Timer then waits for the next timerStartSource event.
1.00
Beginner
DFNC

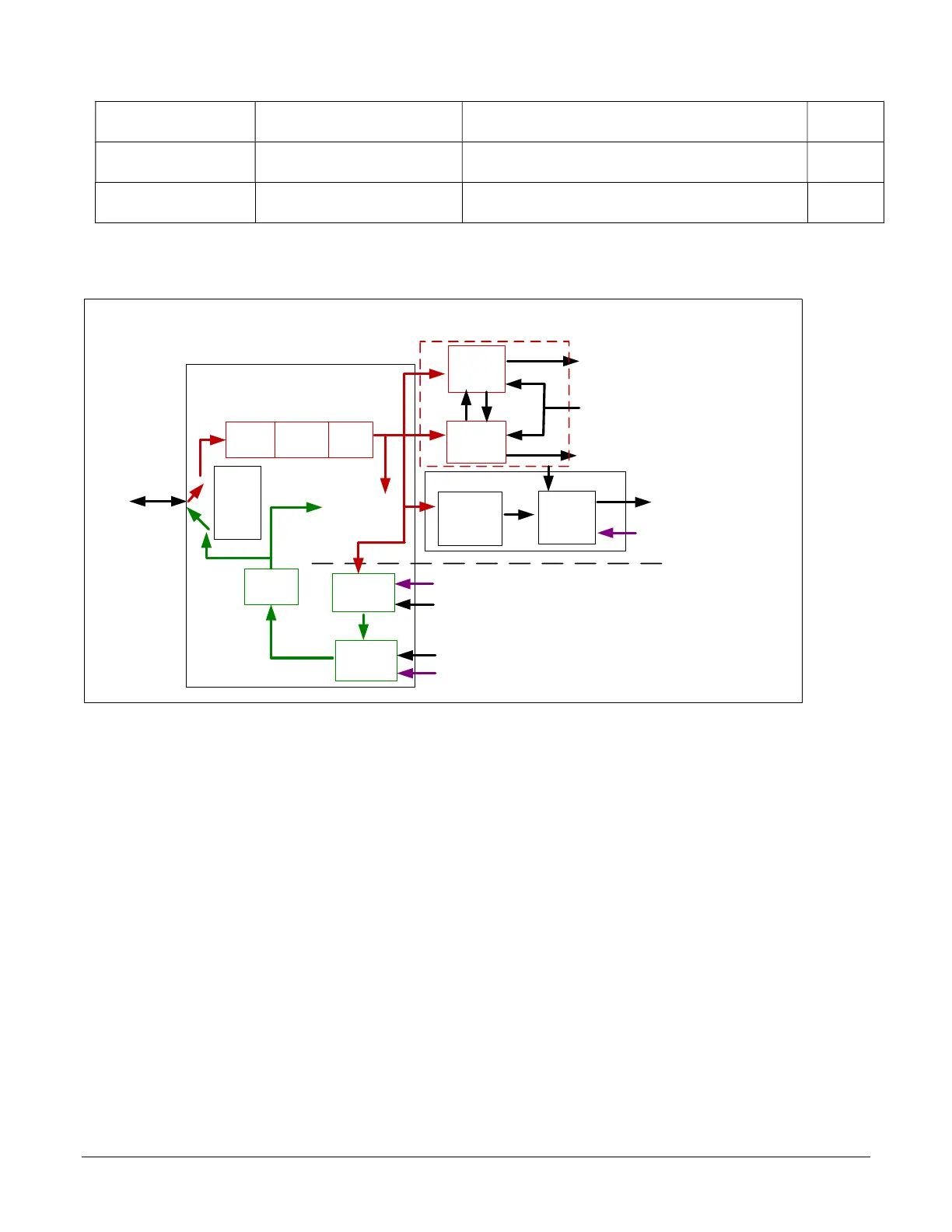

Counter and Timer Group Block Diagram
Line Selector =
Line 1 to 5
Physical
Line
Event Driven
Input
Inverter
Output
inverter
Software Driven
Pulse
Generator
LineStatus
Trigger
Line
Activation
Trigger Signal
Timer
TimerEnd Event
CounterEnd Event
Software Trigger
Cmd
Line
Mode
Input
or
Output
Input
Output
Timer and Counter Module
Counter
Line
Debouncer
Event Driven
Trigger
Source
Trigger Module
Output
Line
Source
Signal Driven
Software Driven
Line
Detection
Level
