70  Operational Reference Falcon™ 4-CLHS Series

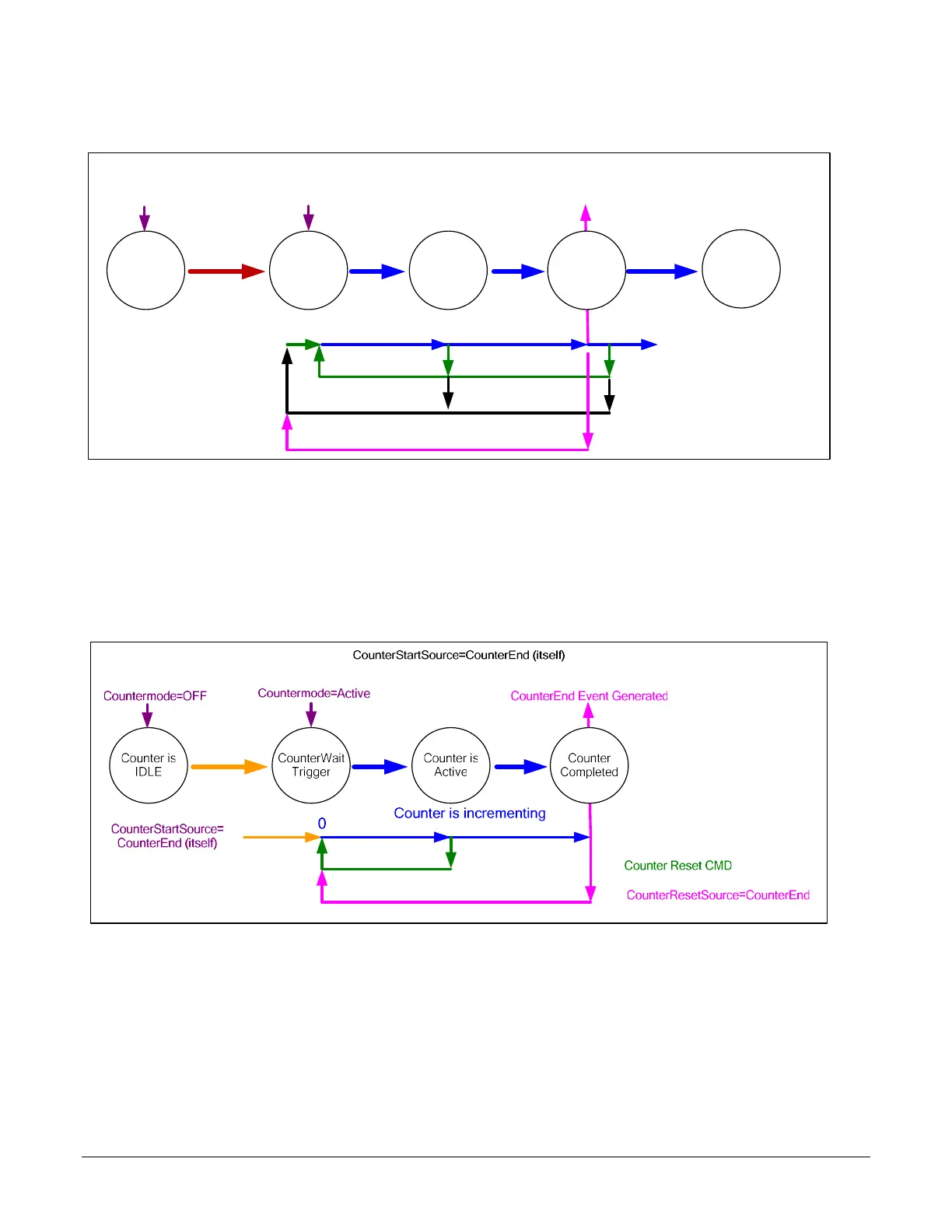

Example: Counter Start Source = OFF
Countermode = OFF
Counter is
IDLE
Counter
Overflow
CounterEnd Event Generated
Counter is
Active
CounterStartSource = OFF
Counter
Trigger Wait
Counter is incrementing
Countermode = Active
CounterResetSource = OFF
CounterResetSource = Event
Counter Reset CMD
Counter
Completed
CounterResetSource = CounterEnd
CounterStartSource = OFF
0
 The counter starts on the counterReset Cmd.
 The counter continues unless a new counterReset Cmd is received, which then restarts the
counter at 00.
 When Counter Reset Source = ‘Event’ or ‘CounterEnd’ the counter is reset to 00 but does
not restart counting, until the next CounterReset Cmd.
Example: Counter Start Source = CounterEnd (itself)
 Counter starts when Counter Mode is set to Active.
 A Counter Reset CMD will reset the counter to 00 and it then continues counting.
 counterResetSource must be set to CounterEnd. When the counterValue feature reaches the
counterDuration value an event is generated and the counter is reset to 00, then continues.
