Dalsa Xtium-CL MX4 - Block Diagram: Connecting External Drivers to General Inputs on J1 or J4; Figure 29:Rev A2: External Signals Connection Diagram

100 • Technical Specifications Xtium-CL MX4 User's Manual
Block Diagram: Connecting External Drivers to General Inputs on J1 or J4
J1: External Signals Connector
(DH60-27P)
Reserved
4
External Signals Xtium-CL MX4 rev. A2
26
27
:
:
V (+)
3
V (+)
2
V (+)
1
V (+)
Differential
Driver
User Signal Ground
25 :
24 :
23 :
General Output 422 :
General Output 321 :
19
20
:
:
18 :
17 :
General Input 4 (+)16 :
General Input 3 (+)15 :
Power Output (12 Volts)14 :
Ground13 :
General Output 2 / Strobe 212 :
General Output 1 / Strobe 111 :
Ground10 :
General Input 2 / Trigger 2 (+)9 :
General Input 1 / Trigger 1 (+)8 :
7 :
Shaft Encoder B (+)6 :
Shaft Encoder B (-)5 :
Ground4 :
Shaft Encoder A (+)3 :
Shaft Encoder A (-)2 :
Ground1 :
Differential
Driver
Differential
Driver
Differential
Driver
General Input 1 / Trigger 1 (-)
General Input 4 (-)
General Input 3 (-)
Power Output (5 Volts)
General Input 2 / Trigger 2 (-)
General Output 5
General Output 6
General Output 7
General Output 8

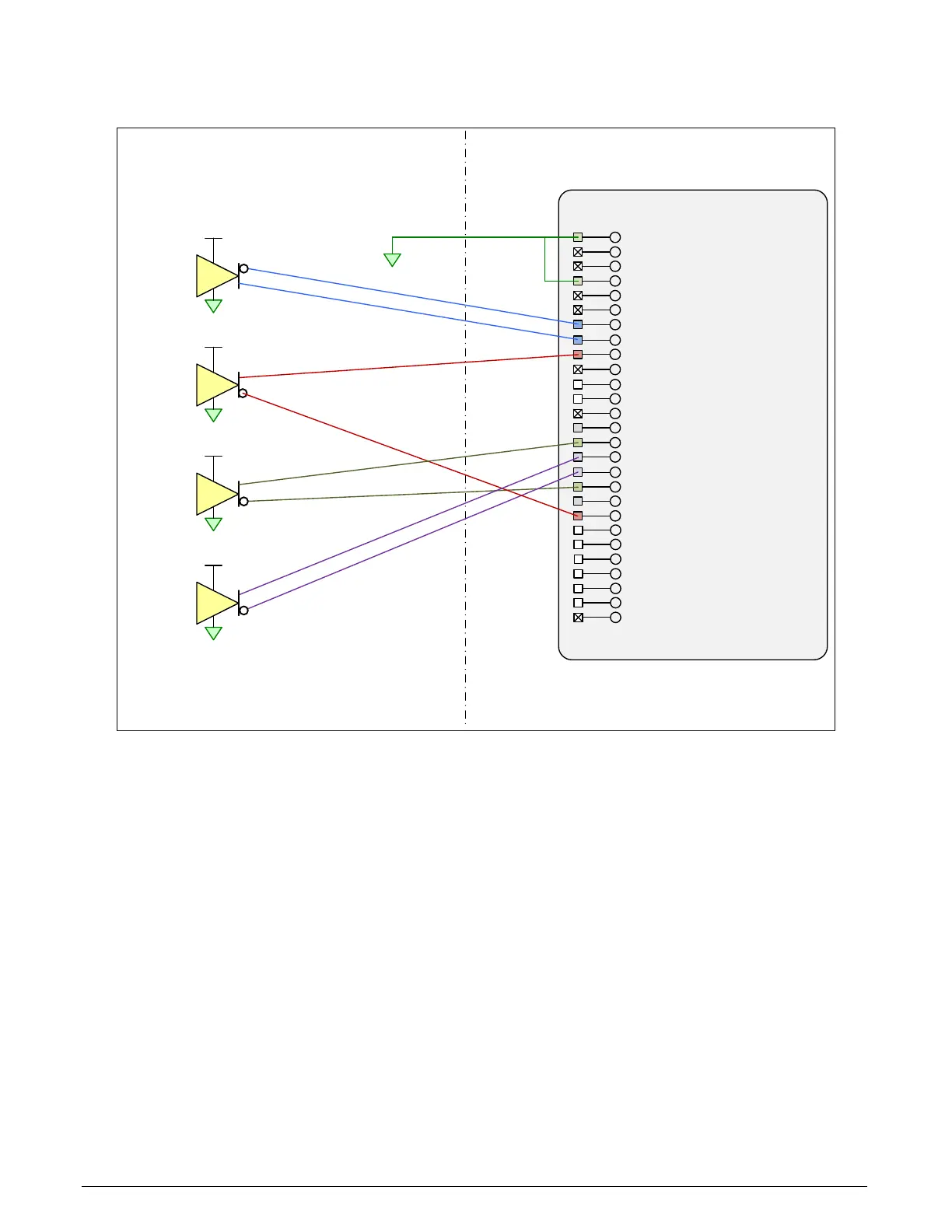

Figure 29:Rev A2: External Signals Connection Diagram
