Xtium-CL MX4 User's Manual Installing Xtium-CL MX4 • 23
Displaying Xtium-CL MX4 Board Information
The Device Manager program also displays information about the Xtium-CL MX4 boards installed in
the system. To view board information run the program via the Windows Start Menu shortcut Start
• Programs • Teledyne DALSA • Xtium-CL MX4 Device Driver • Device Manager.
Device Manager – Board Viewer

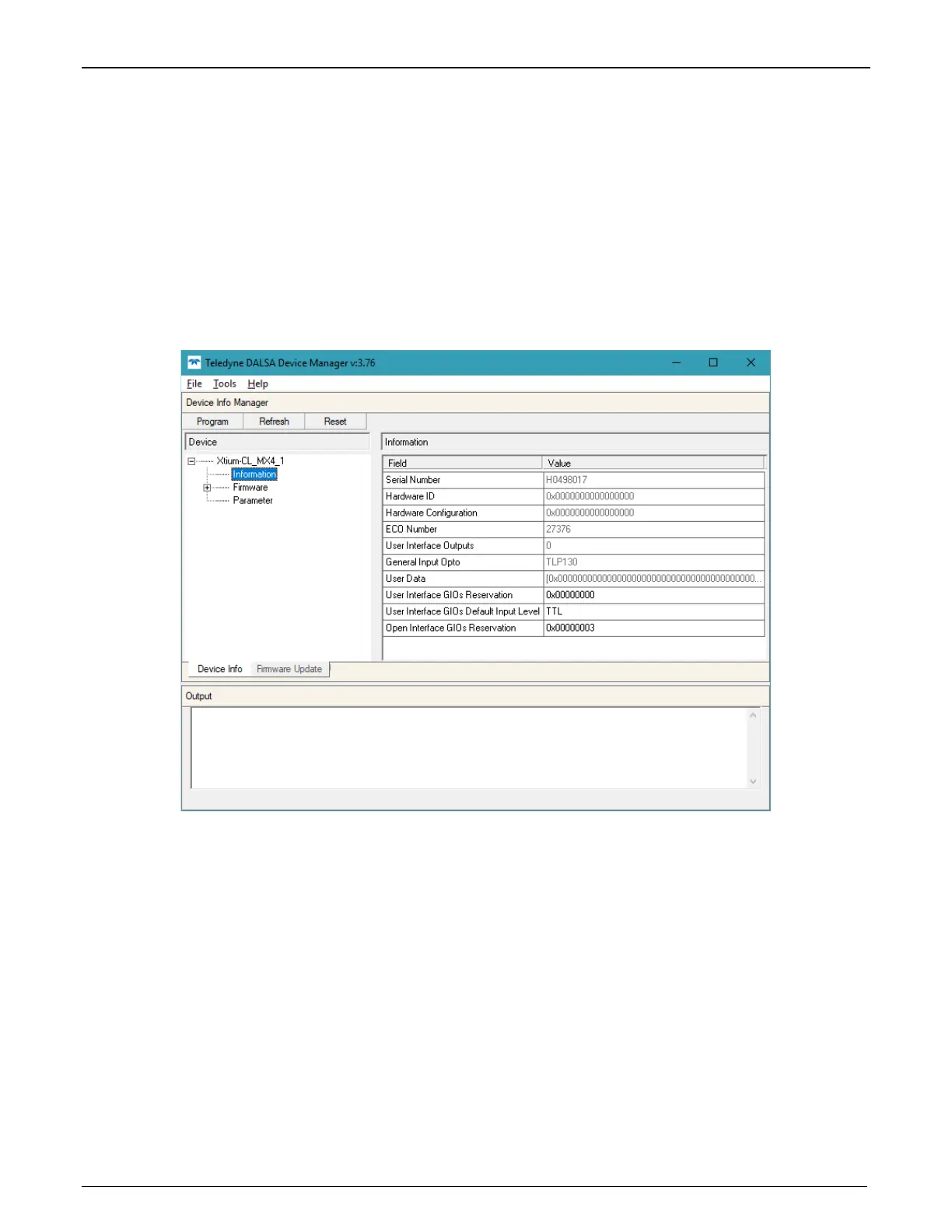

The following screen image shows the Device Manager program with the Information/Firmware tab
active. The left window displays all Teledyne DALSA Xtium-CL MX4 boards in the system and their
individual device components. The right window displays the information stored in the selected
board device. This example screen shows the Xtium-CL MX4 board information.
Figure 6: Board Information via Device Manager
