Cables & Accessories

The following cables and accessories are available for purchase. Contact sales at Teledyne DALSA.

DH40-27S Cable to Blunt End (OR-YXCC-27BE2M1, Rev B1)

Cable assembly consists of a 2000 mm (~6 ft.) blunt end cable to mate to Xtium external

connector J1. Note: The applicable wiring color code table is included with the printed Product

Notice shipped with the cable package — no other wiring table should be used.

Important: Cable part number OR-YXCC-27BE2M0 rev.3 is obsolete and should not be used with

any Xtium series boards.

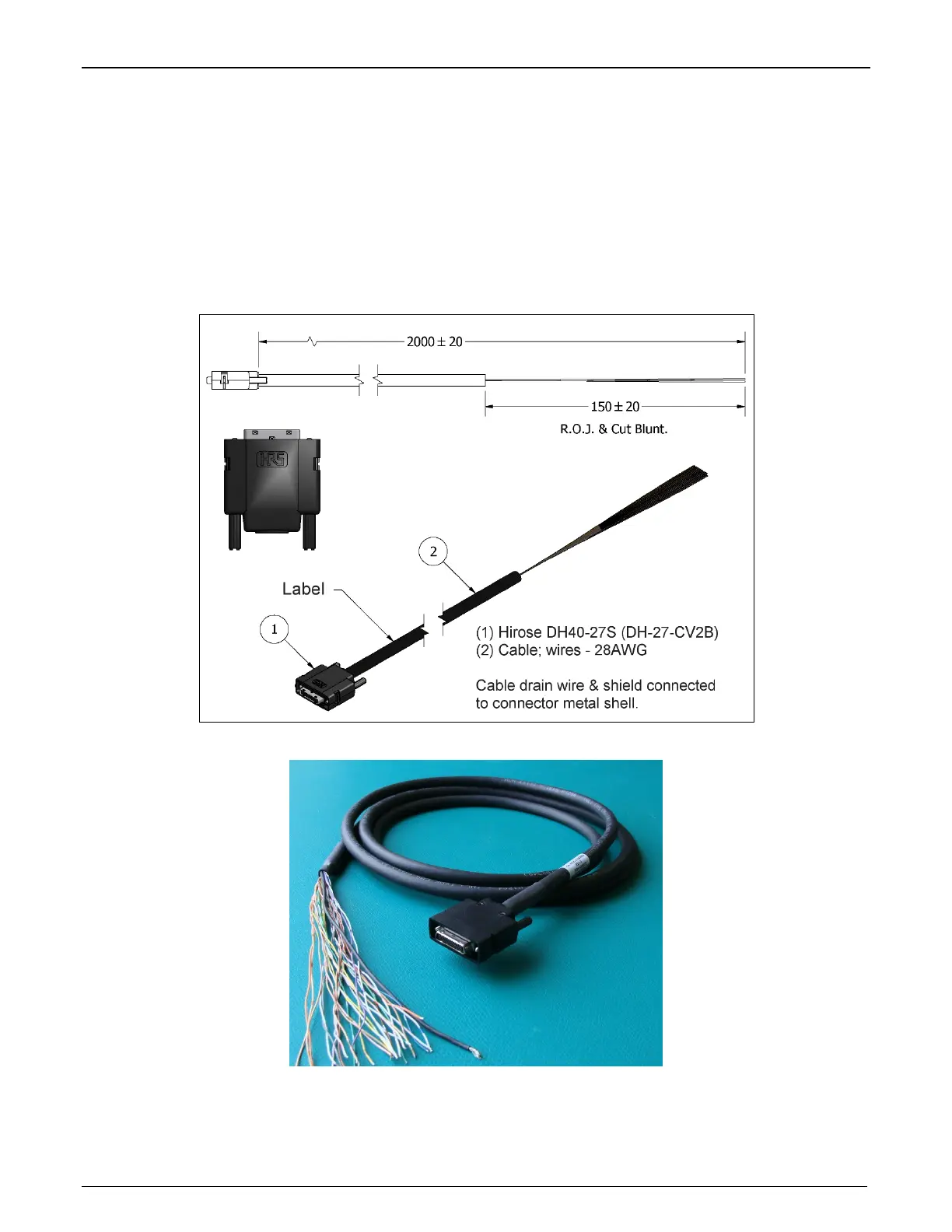

Figure 37: DH60-27P Cable No. OR-YXCC-27BE2M1 Detail

Figure 38: Photo of cable OR-YXCC-27BE2M1
