Xtium-CL MX4 User's Manual Technical Specifications • 115
Power Cable Assembly OR-YXCC-PWRY00
When the Xtium-CL MX4 supplies power to cameras via PoCL and/or when power is supplied to
external devices via the J1/J4 I/O connector, PC power must be connected to the Xtium external
power source connector (J7).
Recent computer power supplies provide multiple 6-pin power source connectors for PCI Express
video cards, where one is connected to J7 on the Xtium-CL. But if the computer is an older model,
this power supply adapter converts 2 standard 4-pin large power connectors to a 6-pin power
connector.

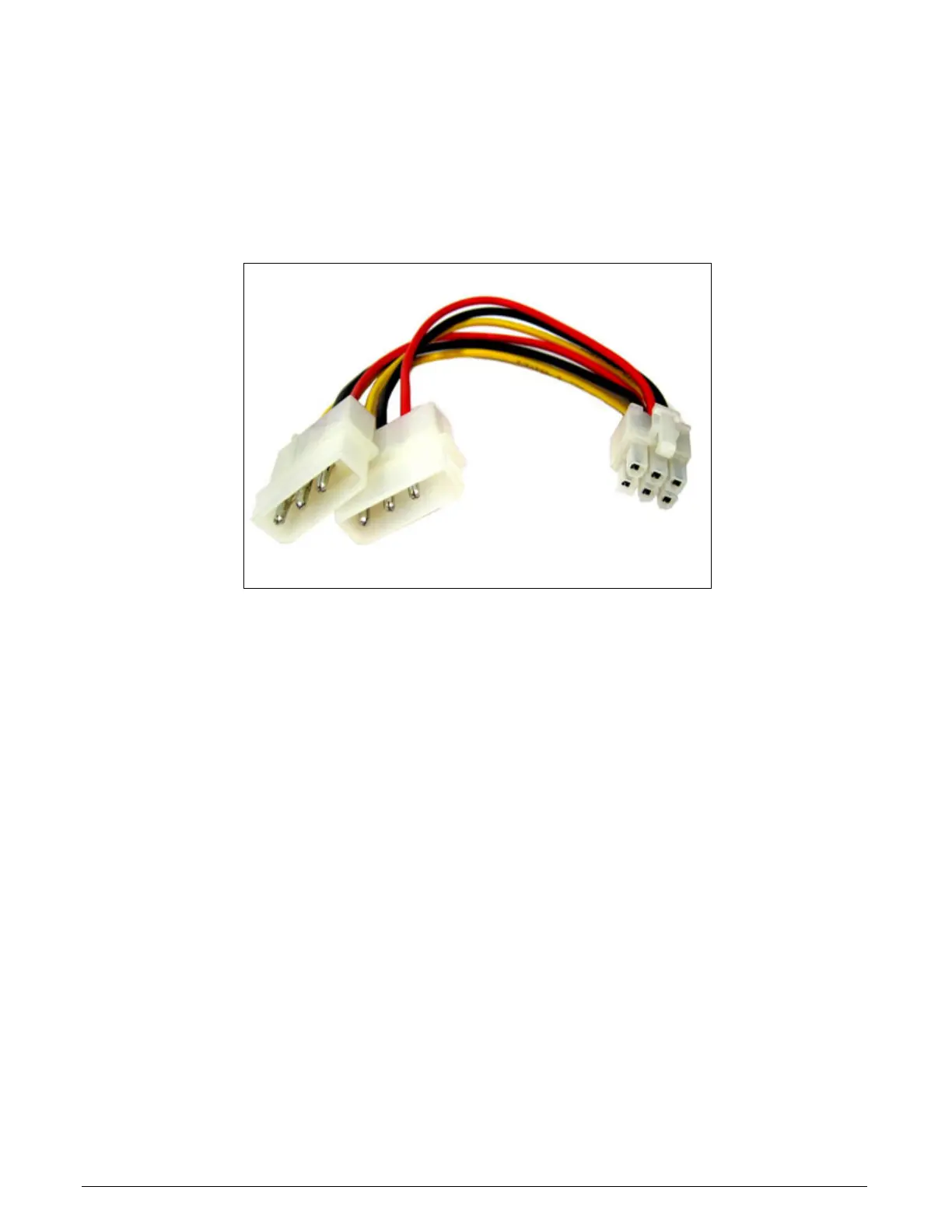

Figure 42: Photo of cable assembly OR-YXCC-PWRY00
This is an industry standard adapter cable which can be purchased from Teledyne DALSA.
