Datalogic SC5100 - Reader:C Configuration Data; Reader:I Input Data

ETHERNET/IP
PRODUCT REFERENCE GUIDE 106

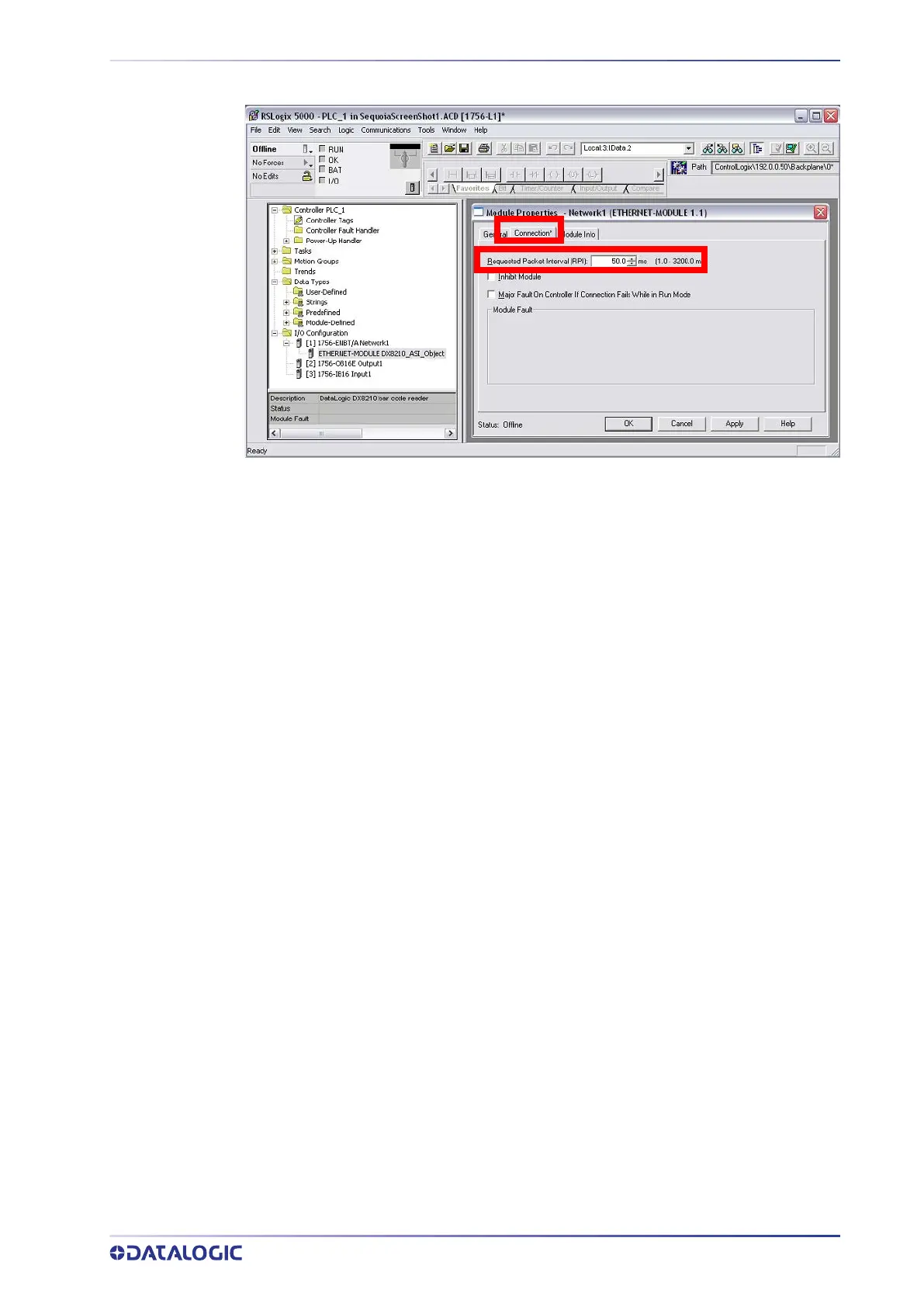

7. Click OK.
8. After the module definition for the reader has been completed, tags will be cre-
ated in the controller based on the name you specified for this reader on the prop-
erties page for the module. These tags will consist of the name followed either by
the letter
“Reader:C Configuration Data” on page 106 the “Reader:O Output
Data” on page 107
or the “Reader:I Input Data” on page 106. These tags are
based on the reader assembly objects.
Reader:C Configuration Data
This data is not used.
Reader:I Input Data
Tag Name Value Description
Reader:I.Data[0] Discrete Input Word See bit definitions.
Reader:I.Data[1] Bar Code Sequence Number
This field is updated every time
the bar code data is updated.
However, the bar code data will
only be updated when the “Last
Bar Code Sequence Number” (see
Output Data) is set equal to this
value.
Reader:I.Data[2] Bar Code Status Not currently used.
Reader:I.Data[3] Bar Code Size (words)
Number of words which contain
the barcode data
Reader:I.Data[4-67] Bar Code Data
