Datalogic SC5100 - AS1 Area Sensor to CBX100 Connections

TRIGGER AND FOCUSING DEVICE WIRING
PRODUCT REFERENCE GUIDE 50
AS1 Area Sensor to CBX100 Connections

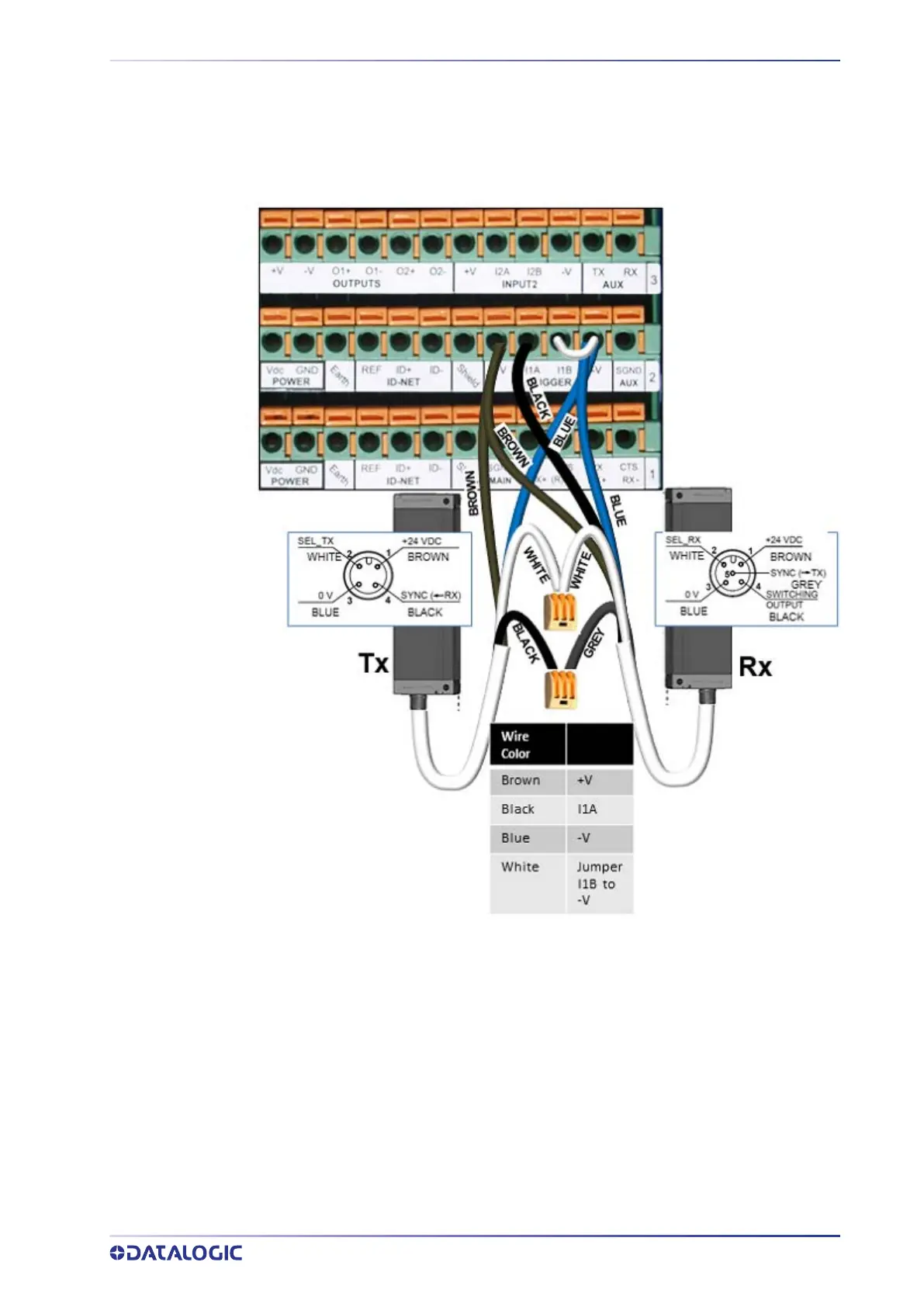

The AS1 area sensors can detect and provide trigger for very small or irregularly shaped
objects. The following diagram illustrates standard recommended wiring of the AS1
Area Sensor to a CBX100 Connector box in an SC5100 application.
