CBX CONNECTION BOX INITIAL CONFIGURATION
PRODUCT REFERENCE GUIDE
40

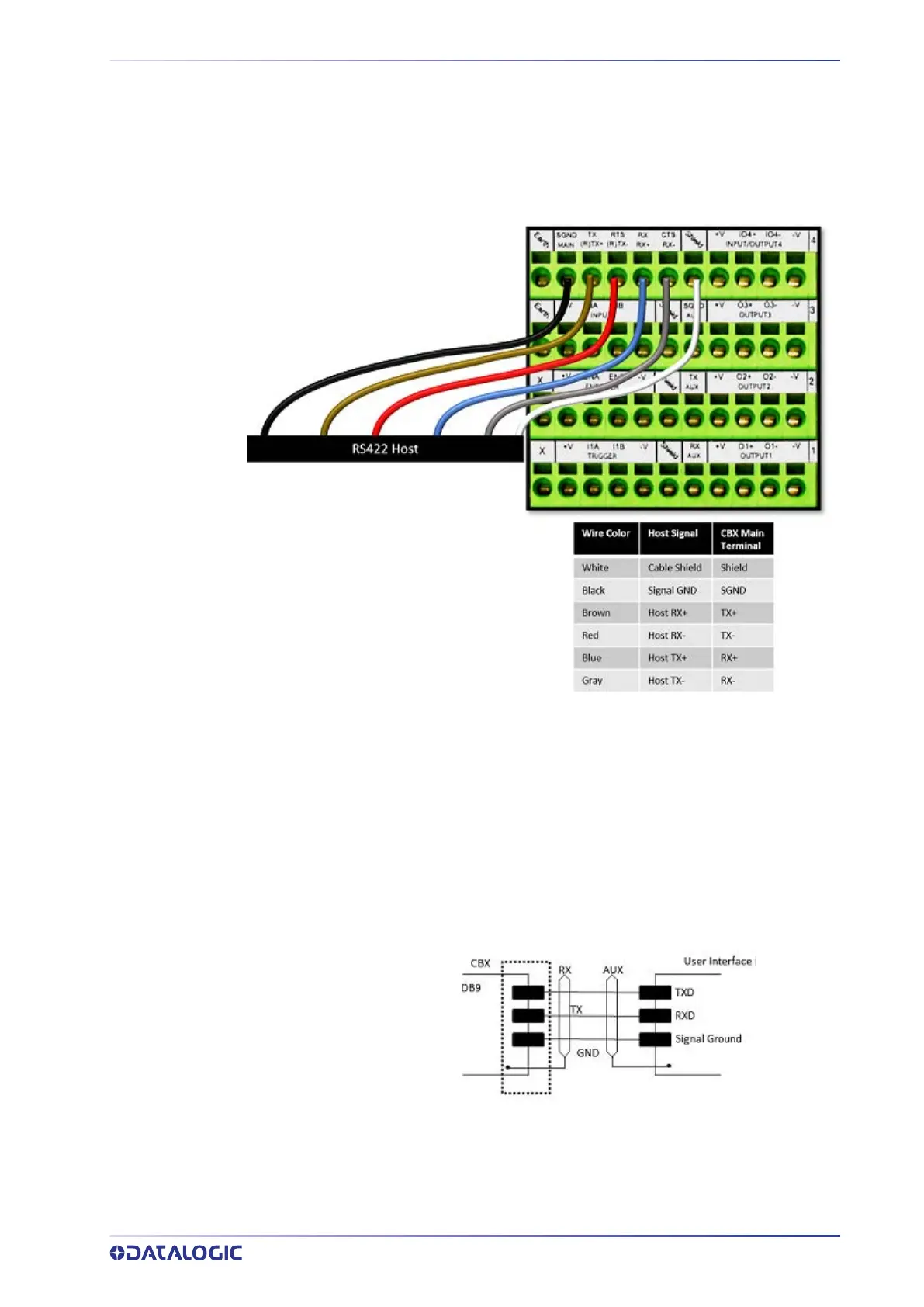

RS422FD HOST (Full Duplex)
Use RS422 for a direct connection to a controller, personal computer, or other device.
RS422 provides point-to-point communications at distances up to 1200 M [3940 ft]. Full
duplex wiring supports a four wire, double twisted pair RxD/TxD. The Signal GND and
shield cables are also required as shown.
Auxiliary Serial Connections for CBX510
The auxiliary serial interface is equipped with RS232 interface connections. In addition
to being an alternative serial interface, it can be used to connect hand held readers to
the reading system in a pass through configuration. Data transmission can be enabled or
disabled on the interface through the configuration parameters.
Pin Name Function
2 TX Transmit
3 RX Receive
5 GND Ground
