Datalogic SC5100 - Photoelectric Sensor to CBX100 (PNP)

149 pages

Save Page as PDF

To Next Page

To Previous Page

ELECTRICAL INSTALLATION

SC5100 CONTROLLER

Photoelectric Sensor to CBX100 (PNP)

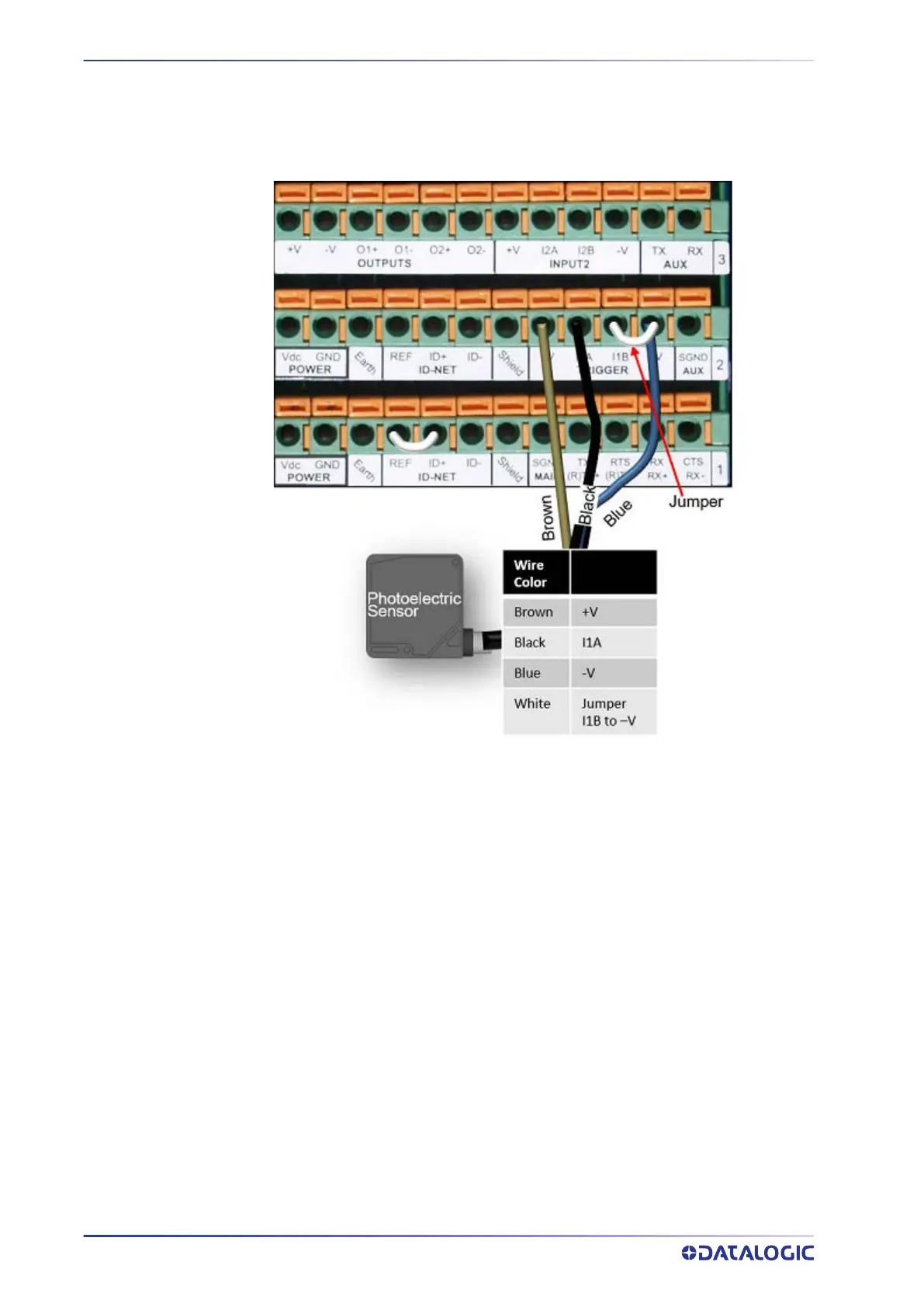

The following diagram illustrates standard recommended wiring of the PNP Photoelec-

tric sensor to a CBX100 Connector box in an SC5100 application.
