ELECTRICAL INSTALLATION

SC5100 CONTROLLER

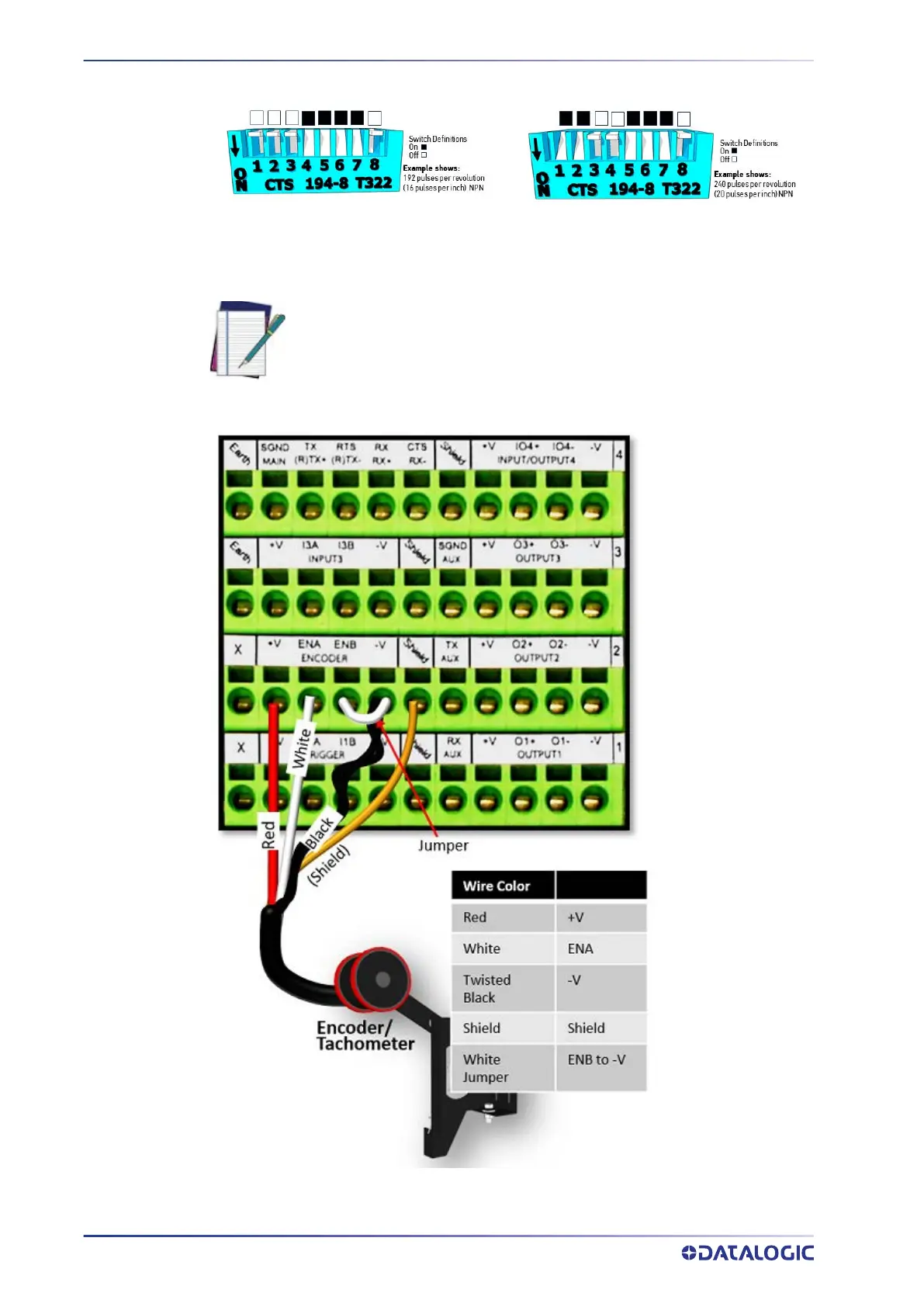

Encoder/Tachometer Wiring for PNP Output to CBX510

NOTE: Some Photocraft tachometers may have a different color coding:

(+V) Red or White/Orange

(Signal) White or White/Blue

(Ground) Black or Orange/White
