MECHANICAL INSTALLATION
21
SC5100 CONTROLLER
Mechanical Mounting
SC5100 can be mounted to a Bosch or 80/20® frame. Follow the steps outlined below:
Make sure there is appropriate access to all other devices and power and provide 300
mm (12 in) clearance.

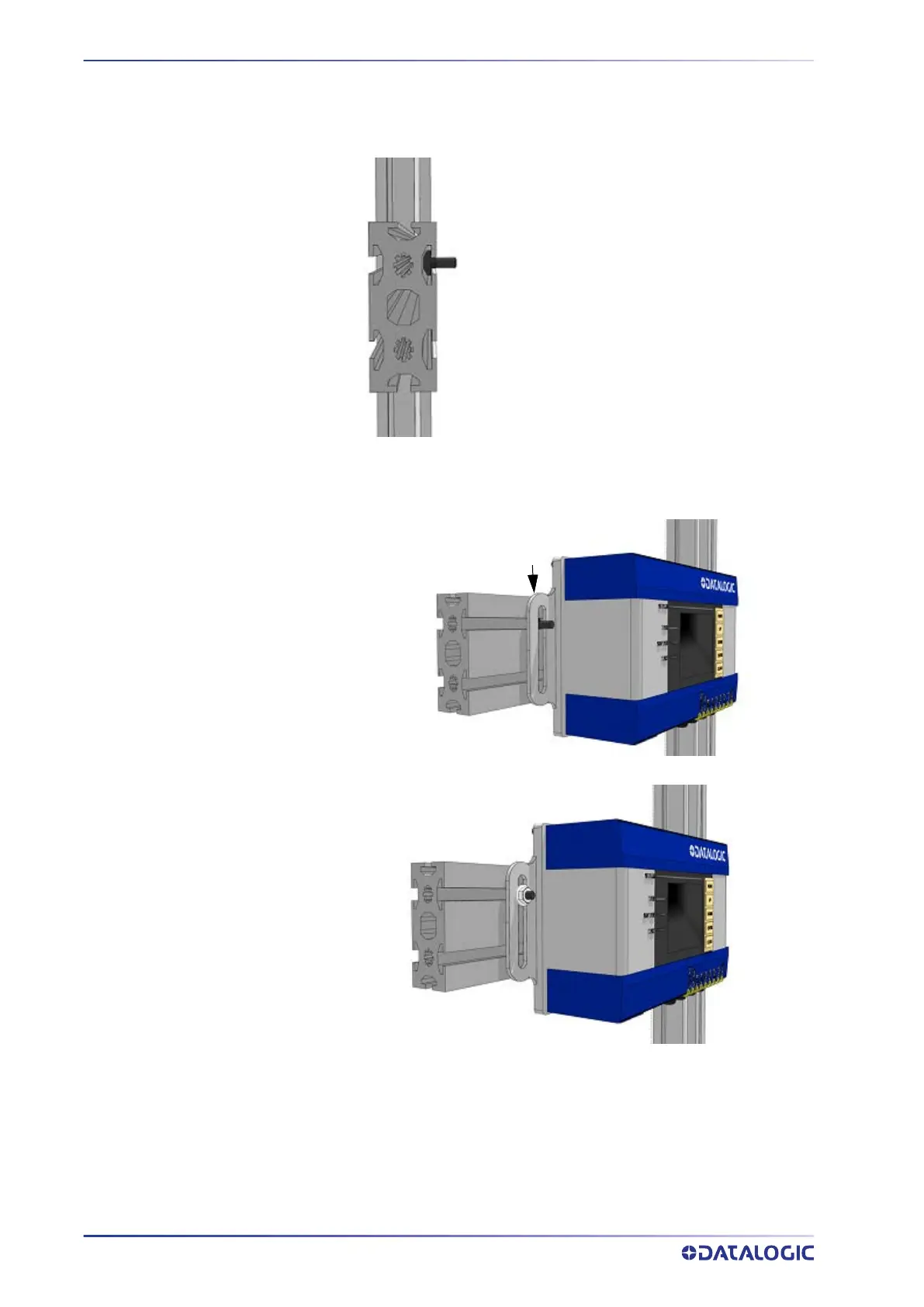

Drop T-Slot stud into slot of 80/20 or
Bosch structure (M8 thread or 5/16”-18).
Place SC5100 Back Cover
Spacer into place over T-stud.
Back Cover Spacer
Place Flange hardware on stud
and tighten.
