ELECTRICAL INSTALLATION
51
SC5100 CONTROLLER
Encoder/Tachometer Wiring to CBX100
SC5100 applications over a conveyor belt use an accessory tachometer and mounting
kit. Use the cable provided with the tach to connect to the CBX terminal block as shown
below.

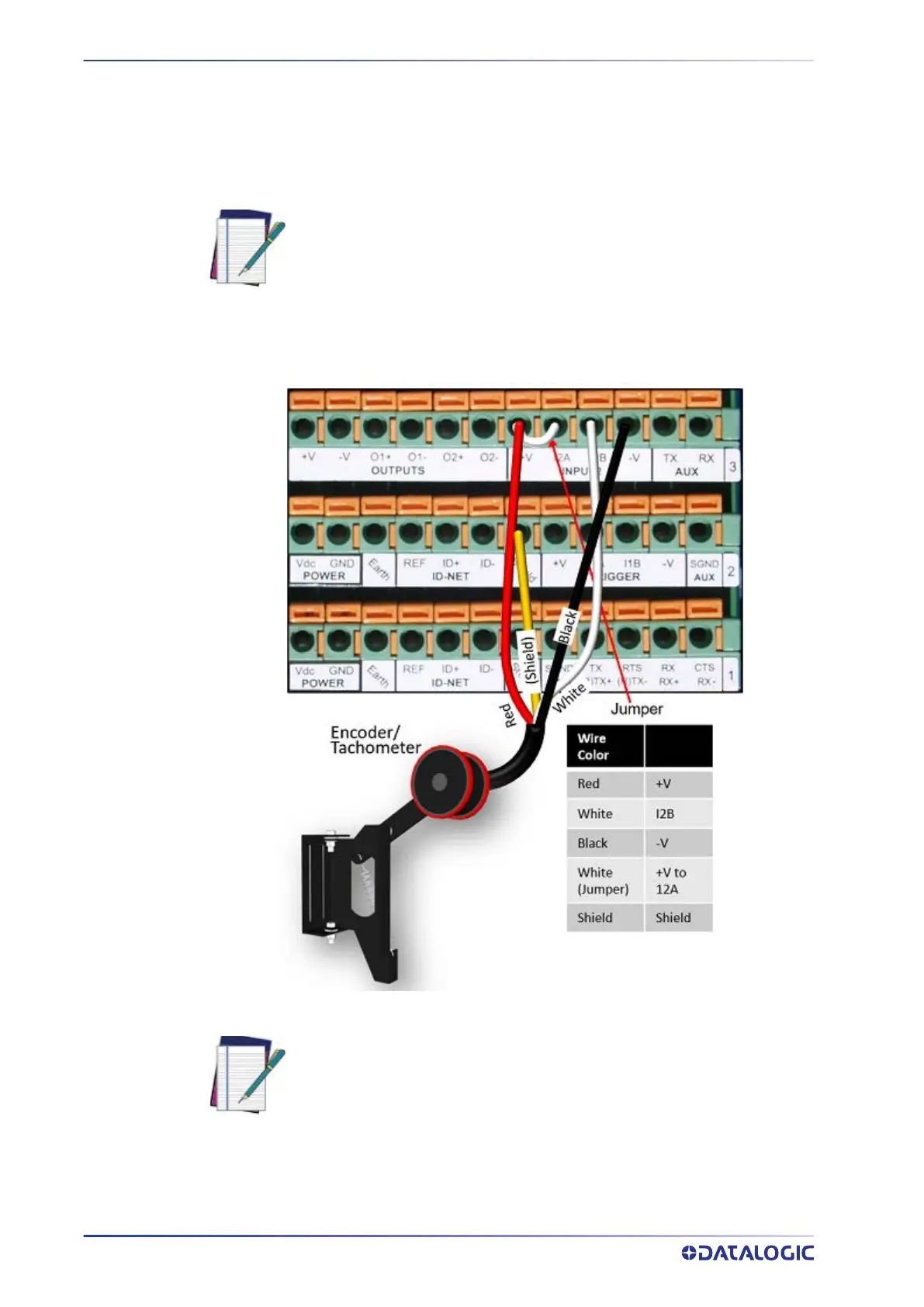

Encoder/Tachometer Wiring for NPN Output to CBX100
NOTE: The Encoder/Tachometer signal can only be configured on CBX Port 1
of the SC5100. Therefore any Encoder/Tachometer signal must be con-
nected to a CBX plugged into SC5100 CBX Port 1.
NOTE: Some Photocraft tachometers may have a different color coding:
(+V) Red or White/Orange
(Signal) White or White/Blue
(Ground) Black or Orange/White
