ELECTRICAL INSTALLATION
29 SC5100 CONTROLLER
USB
The SC5100 has two USB Connectors which support USB 2.0 standard. These USB ports
can be used to support handheld scanning devices.
Profibus Interface
The Profibus interface is only available in the SC5100-100B and SC5100-102B Profibus
model and allows inserting the controller in a Profibus network.
A pair of Male and Female M12 5-pin B-Coded connectors are provided on the SC5100’s
right-most front panel for Profibus connections.
Water Tight Connectors
The Profibus interface is used for communication with a PROFIBUS DP Host and allows
expanding the networking and remote diagnostic capabilities of the controller.
ONLY the last slave node on the Profibus network must be terminated and this can be
done in one of two ways:

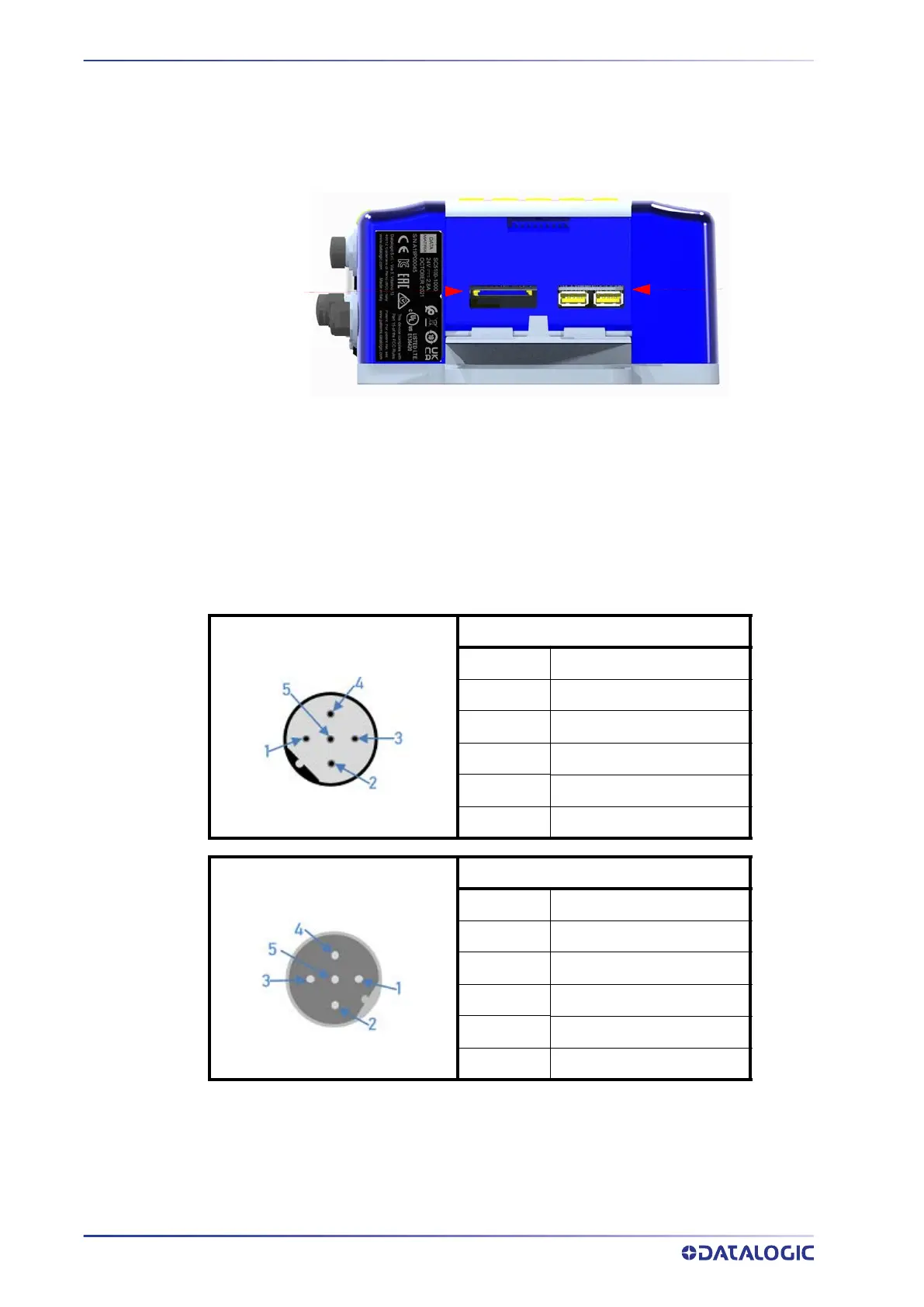

SD Card Slot
Two USB Ports
Profibus In M12 5P Male (B-coded)
Pin Function
1 +5V Bus
2 A Line (-)
3 GND Bus
4 B Line (+)
5 Shield
Profibus Out M12 5P Female (B-coded)
Pin Function
1 +5V Bus
2 A Line (-)
3 GND Bus
4 B Line (+)
5 Shield
