ELECTRICAL INSTALLATION
47
SC5100 CONTROLLER

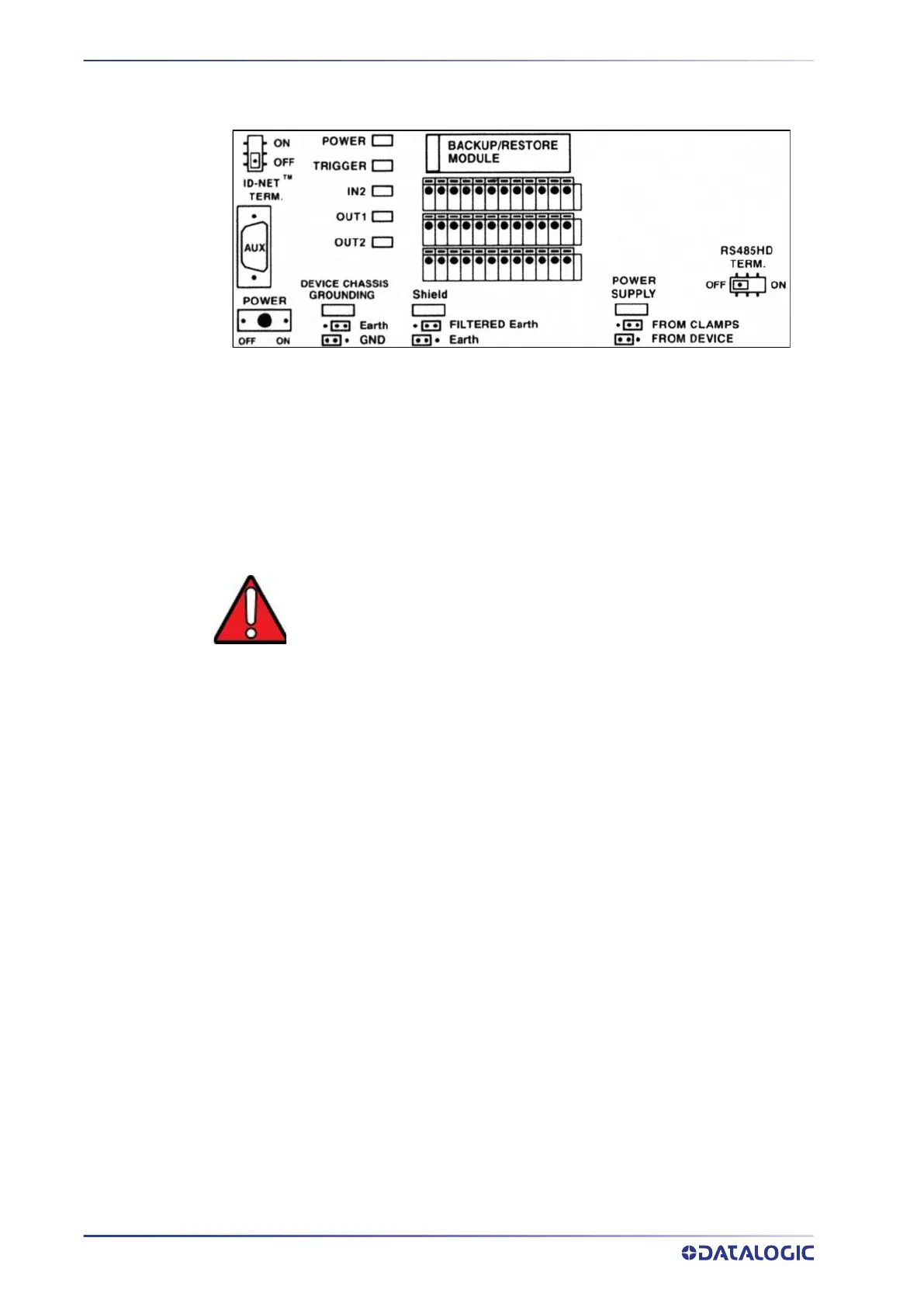

Box Interior Diagram
Photoelectric Sensor Connections to CBX100
Barcode scanning applications may use a Datalogic photoelectric sensor as a trigger
device. The photoelectric sensor is wired directly into the CBX100 terminal block.
If your application uses a trigger other than the one specified by Datalogic, follow the
appropriate wiring diagram to assure proper wiring.
The following diagrams illustrate standard recommended wiring of the Photoelectric
Sensor to the CBX100 terminal block.
WARNING: You must use shielded interface cables with this product. To
maintain FCC compliance, the cable shield must make a 360-degree con-
nection to the shielded mating connector.
