ELECTRICAL INSTALLATION
55
SC5100 CONTROLLER
Auxiliary Serial
The auxiliary serial interface is equipped with RS232 interface connections. In addition
to being an alternative serial interface, it can be used to connect a hand held readers to
the reading system in a pass through configuration. data transmission can be enabled or
disabled on the interface through the configuration parameters.

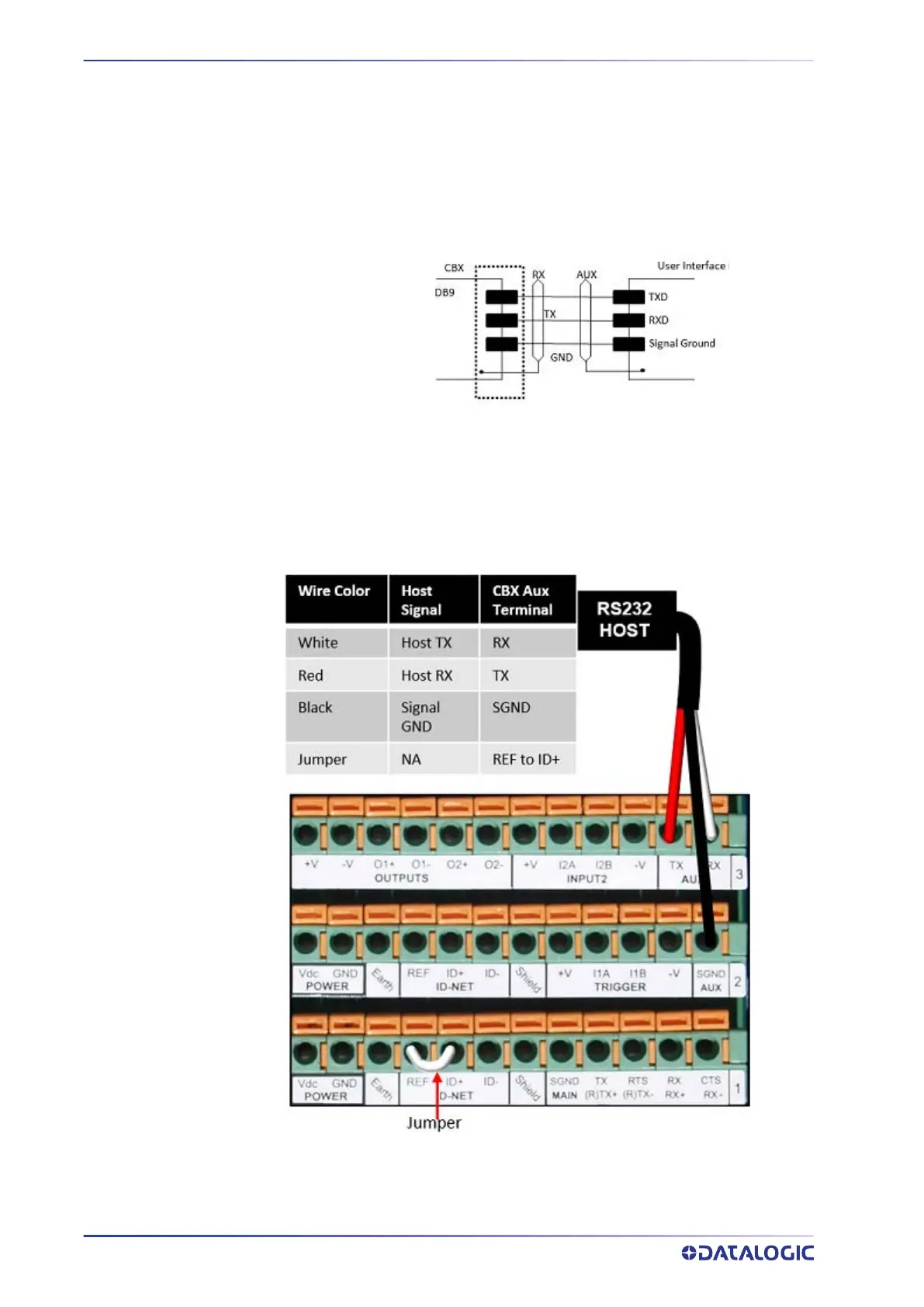

The 9-pin connector is normally used for quick/temporary connection. For a more per-
manent connection you can also use the CBX Box’s spring clamp connectors, in particu-
lar the positions labeled RX, AUX, TX, AUX and SGND AUX.
Pin Name Function
2 TX Transmit
3 RX Receive
5 GND Ground
