TRIGGER AND FOCUSING DEVICE WIRING
An external device can be used to trigger and/or measure the position of parcels as they
enter the Field of view of a bar code reading system. This information is used by the sys-
tem to determine the correct position for optimal focusing. The Datalogic focusing
devices may be one of the following:
• AS1
• DK502 - S-85 Position Sensor Kit
• DM3610 Dimensioner
ASI

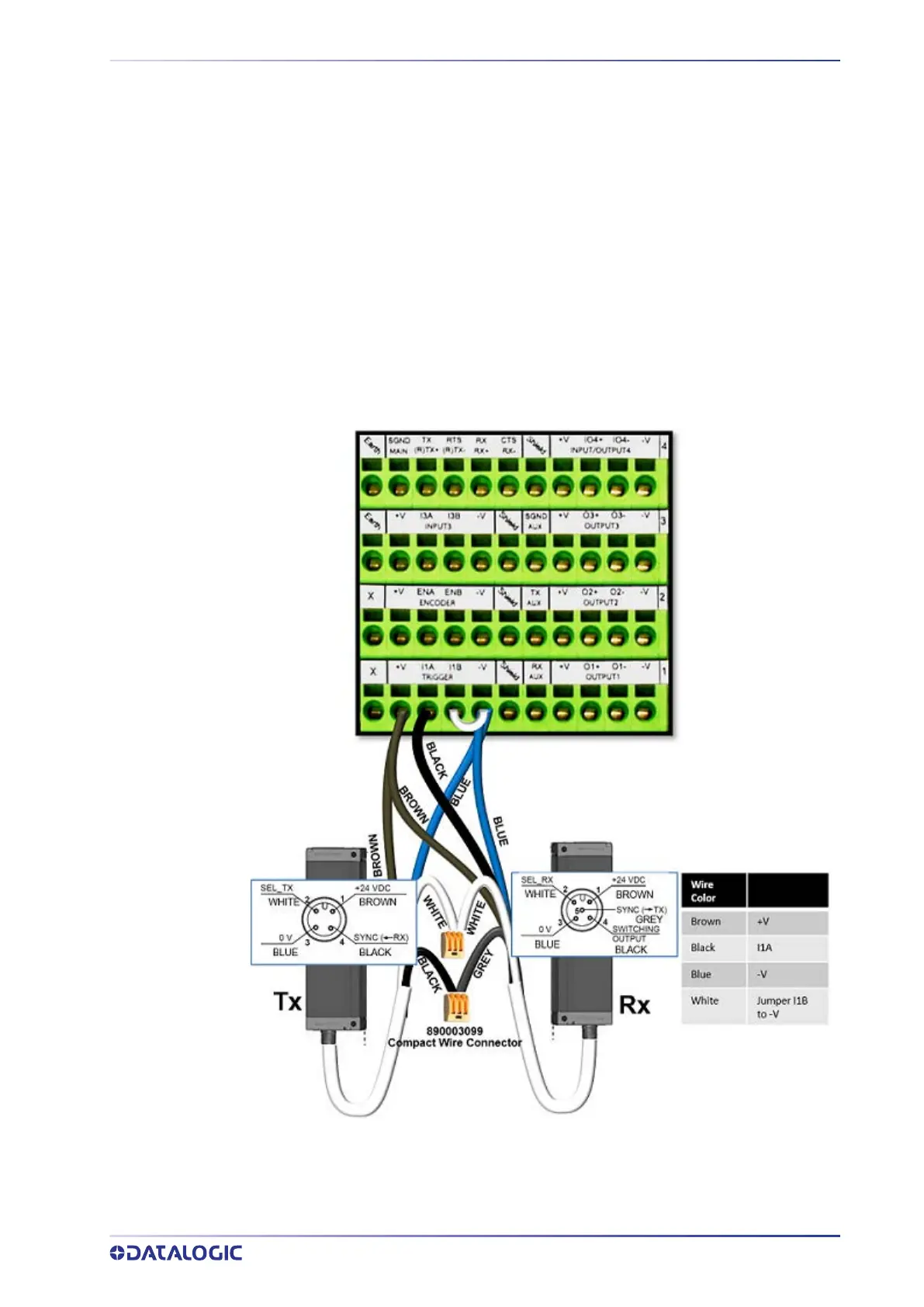

When using an AS1 for trigger, the AS1 must be wired to the CBX510 connected to the
controller using a flying lead to M12 cable (FOCUS CONTROL 5MT CABLE (M12-FREE
WIRES) 93A201203.)
