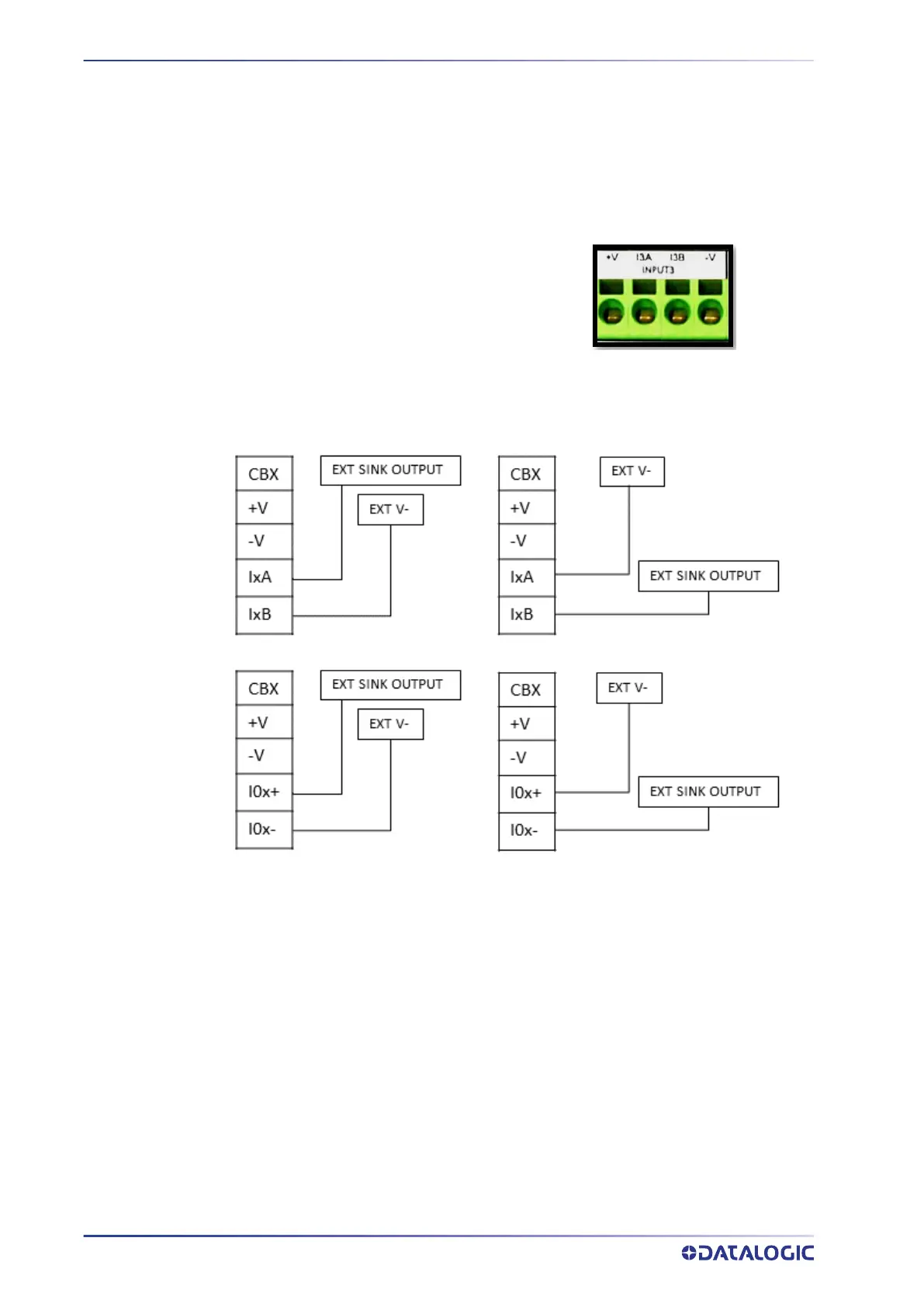

General Use Digital Input Configuration from CBX510
The CBX510 includes two general purpose isolated inputs, INPUT3 and INPUT/OUT-
PUT4. INPUT4 is shared with OUTPUT4 so it must be configured using e-Genius soft-
ware. If a second CBX is connected to CBX Port 2 on the SC5100, all inputs on the
secondary CBX become general use inputs.
Inputs 3 - 4
Operating Voltage 10-30V
Current Draw: Typical 5 mA
NPN
PNP
