ELECTRICAL INSTALLATION
27 SC5100 CONTROLLER

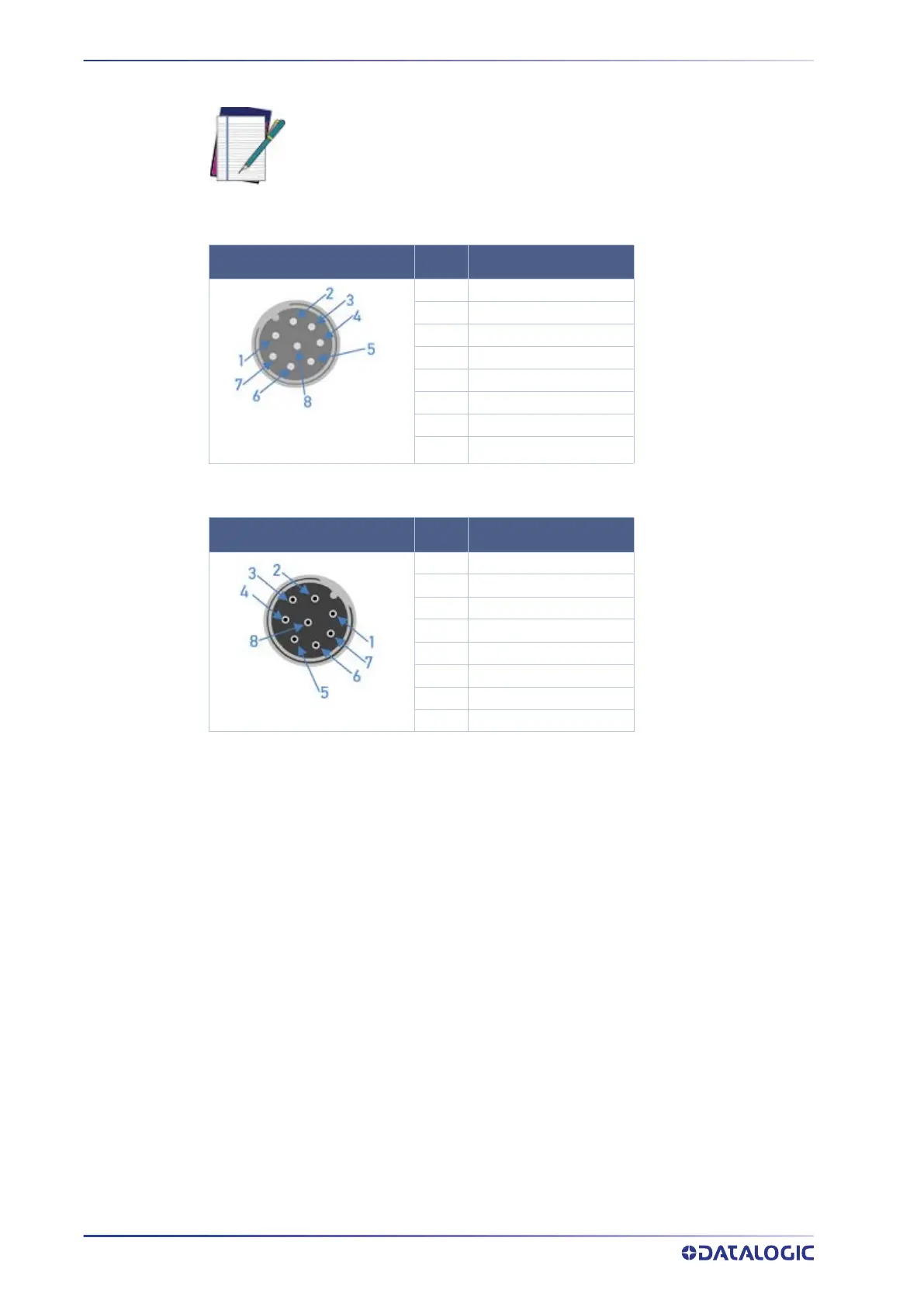

SYNC IN
SYNC OUT
NOTE: Syncnet in large AV tunnels must have a completed loop. Sync
cables must be kept as short as possible. Failure may cause tachometer
errors in the tunnel.
M12 5P FEMALE
PIN FUNCTION
1 RS485 IN RX-
2 RS485 IN TX+
3 RS485 IN TX-
4 ETNERNET TX+
5 ETHERNET RX+
6 ETNERNET TX-
7 RS485 IN RX+
8 ETHERNET RX-
M12 5P MALE
PIN FUNCTION
1 RS485 OUT TX-
2 RS485 OUT RX+
3 RS485 OUT RX-
4 ETNERNET RX+
5 ETHERNET TX+
6 ETNERNET RX-
7 RS485 OUT TX+
8 ETHERNET TX-
