DDC Total-AceXtreme MIL-STD-1553 User Manual

MIL- STD- 1553 TRANSCEIVER OPTIONS
Data Device Corporation DS-BU-67301B-G
www.ddc-web.com
1/14
102

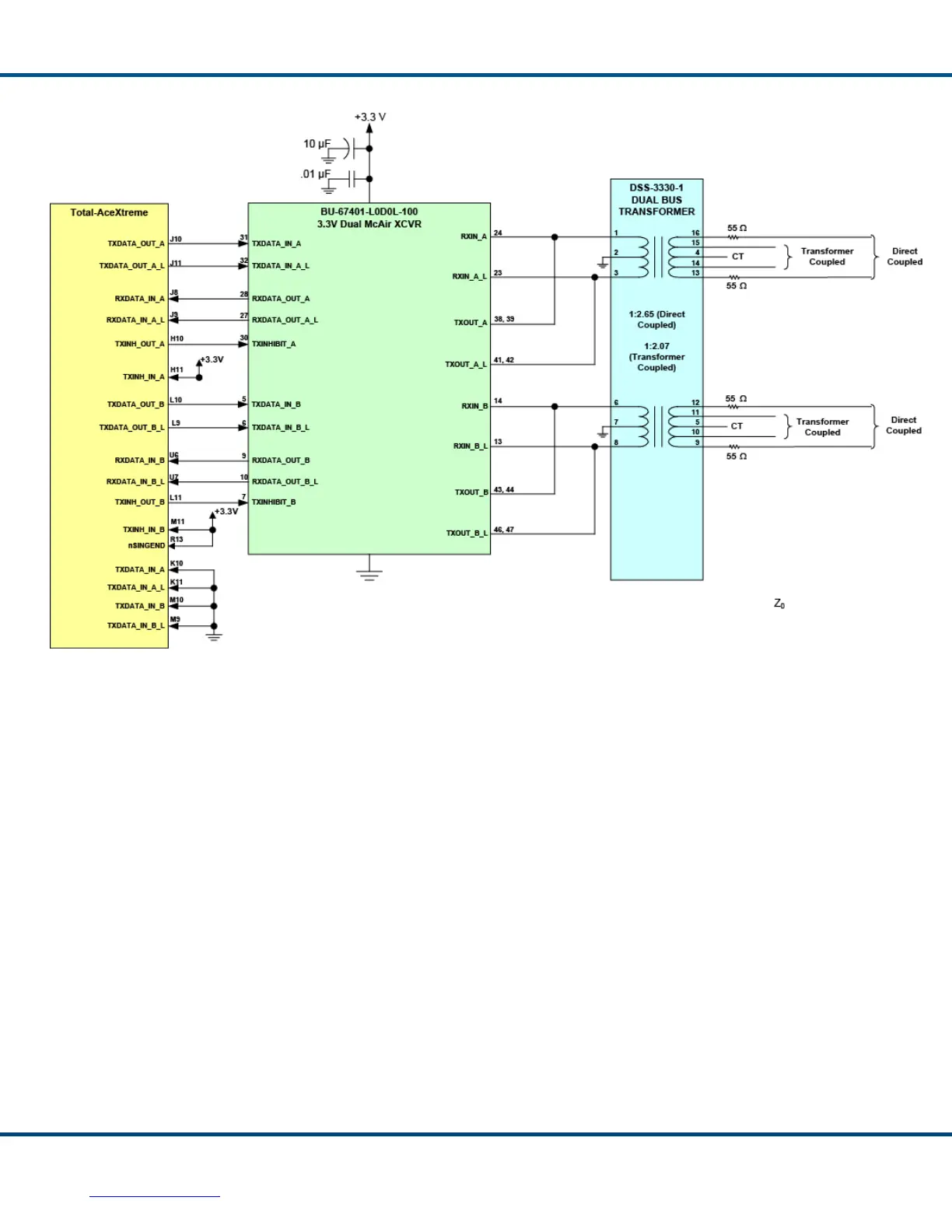

Figure 59. Total-AceXtreme Interface to External McAir Transceiver
8.2 Using External Fiber Optic Transceivers
As an alternative to using the internal transceivers and transformers, it is possible to
use Total-AceXtreme® with external (electrical) MIL-STD-1553 transceivers, or with
fiber optic transceivers. Figure 60 illustrates the interface between Total-AceXtreme
and a pair of external fiber optic transceivers. Note for this interface, it is necessary to
configure the Total-AceXtreme’s Manchester decoders to accept a single-ended
input signal. This is done by connecting the nSINGEND to logic ‘0’.
