13 Maintenance
254
1

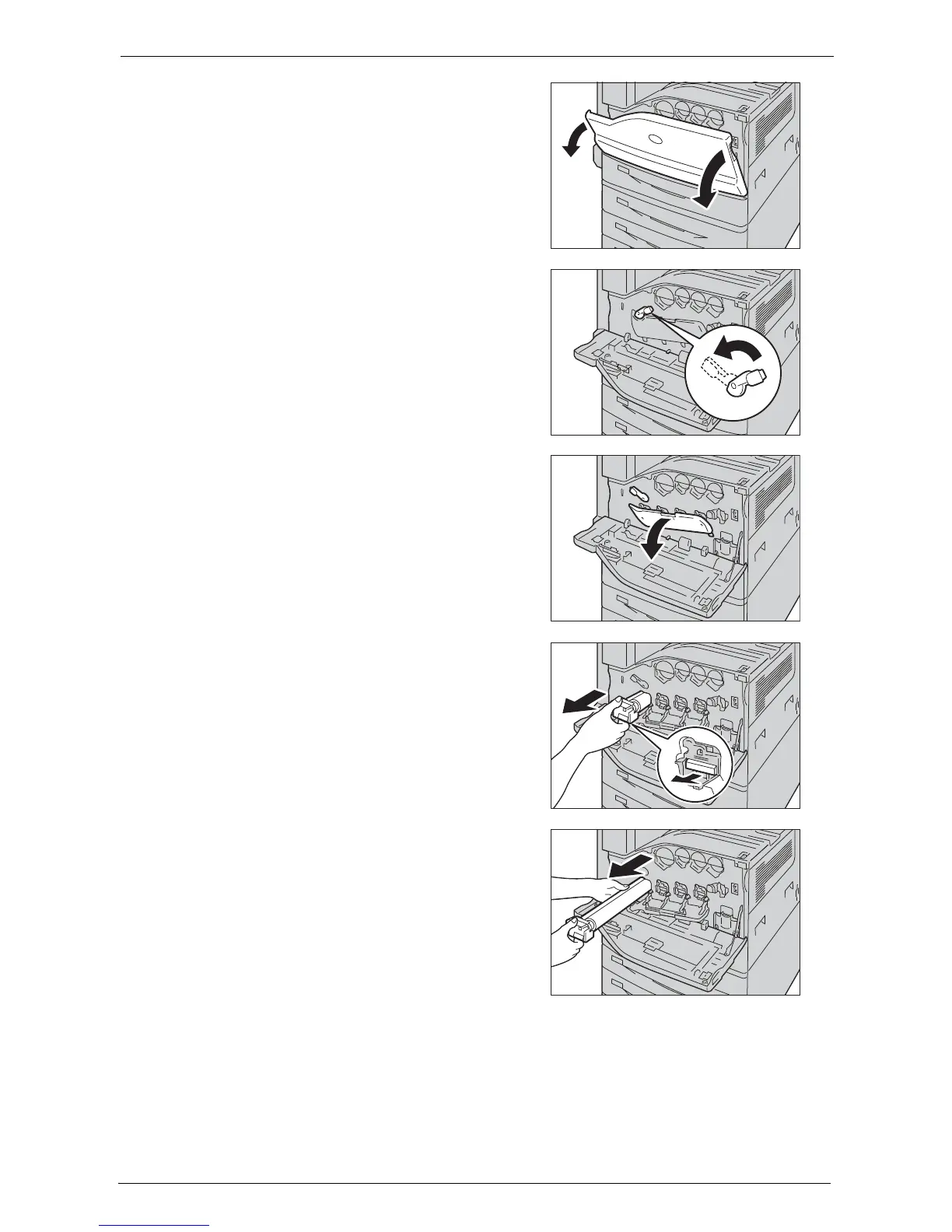

Make sure that the machine is not operating,
and open the front cover.
2
Rotate the release lever of the drum cartridge
cover counterclockwise.
3
Lower the cover.
Note • The drum cartridge is unlocked.
4
Grasp the handle of the drum cartridge R1, R2,
R3, or R4 indicated in the message and gently
slide out the cartridge.
Note • When removing the drum cartridge, be careful
not to drop it on the floor.
• The illustrations in this section explains how
to replace the drum cartridge R1, as an
example.
5
Hold the bottom of the drum cartridge as
shown in the illustration, and pull it out from
the machine.
Note • Be careful not to touch the toner attached to
the cartridge.
6
Take the new drum cartridge out of the box, and insert the used drum cartridge into the
supplied plastic bag and place it into the box.
Note • Do not place the new drum cartridge in an upright position.
To Next Page
