Executing Calibration
267

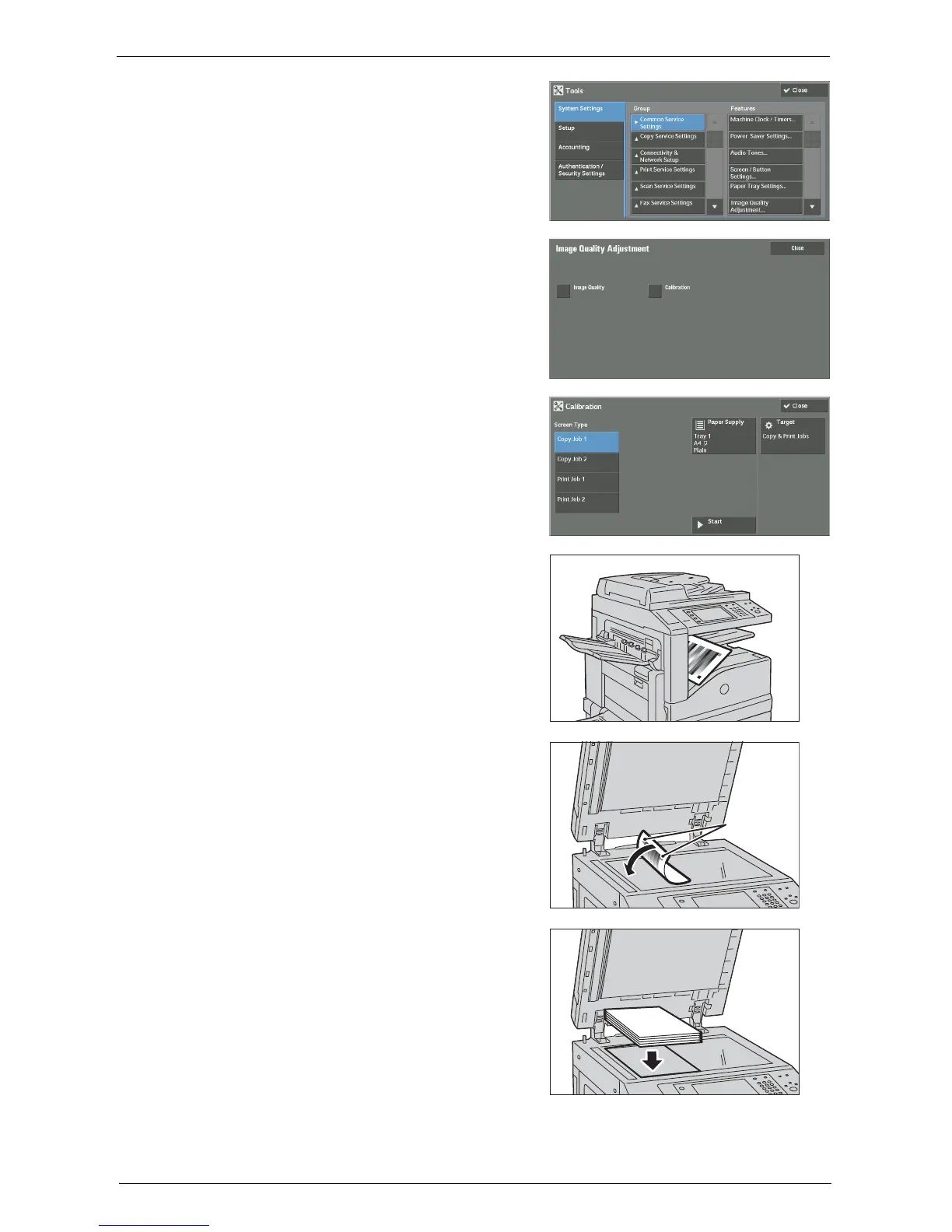

4) Select [System Settings] > [Common
Service Settings] > [Image Quality
Adjustment].
5) Select [Calibration].
2
Set [Screen Type] and [Paper Supply].
Note • [Copy Job 1] is selected here as an example.
• Make sure that [Target] is set to [Copy & Print
Jobs]. If not, calibration will not be effective
for jobs outside the selected range.
3
Select [Start].
Note • A message saying "Outputting the Calibration
Chart... - Copy Job 1" appears, and the
machine prints the Calibration Chart.
4
Place the Calibration Chart face down on the
document glass with the magenta marks on
corners on your left hand side.
Note • Place the Calibration Chart on the document
glass.
5
Place at least five sheets of white paper on the
Calibration Chart to cover the Chart and close
the document cover.
To Next Page
