Delta VFD-M-D series User Manual

Chapter 5 Parameters|VFD-M-D Series
5-70 Revision Jan. 2007, MDE2, SW V1.05

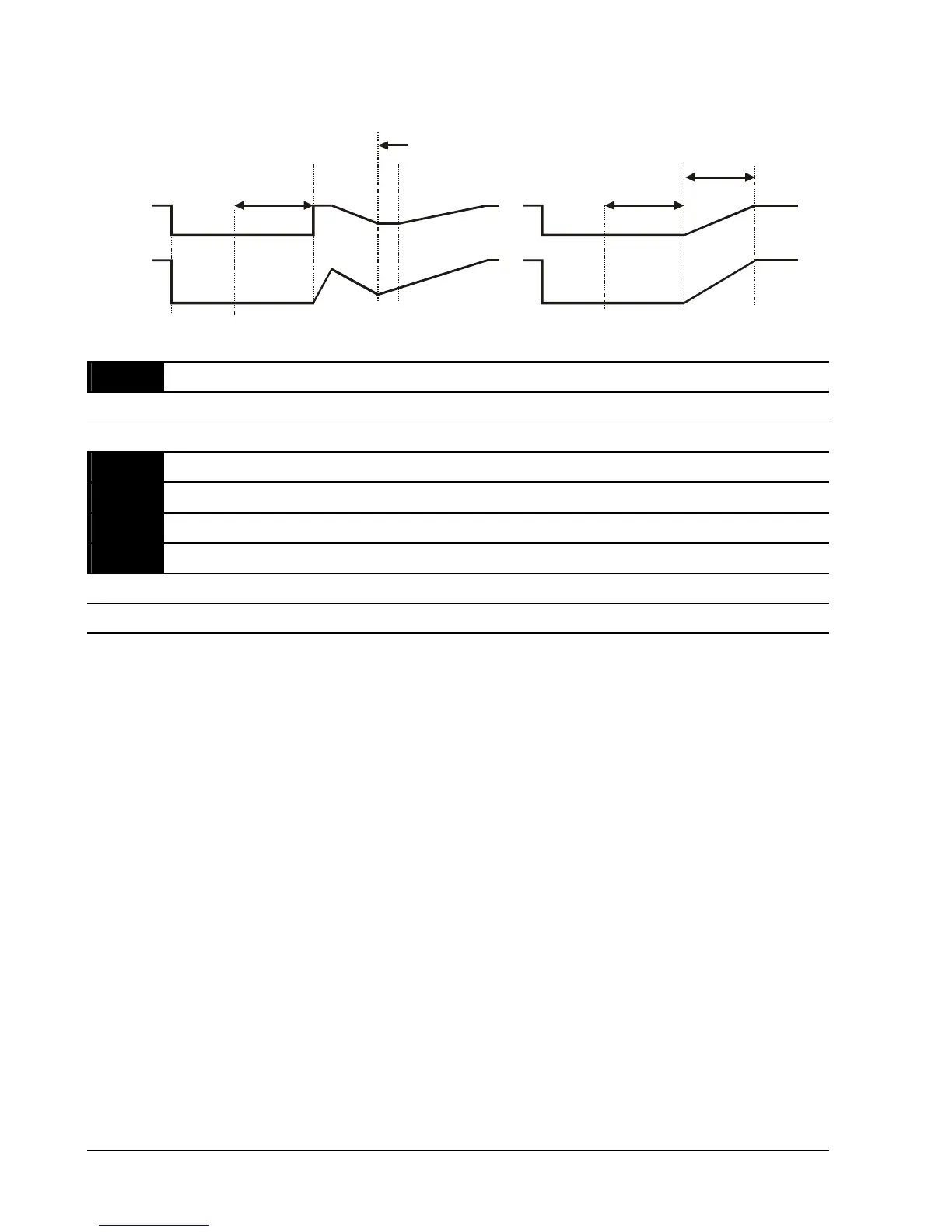

Output
Frequency
Output
Voltage
7-11
7-13=00
7-11
7-14=01
Delay Time
Speed Search
Speed
Synchronization
Detection
Delay Time
Fault occur Fault clear Fault occur Fault clear
Operation continues after fault clear,
speed search starts with the Master
Frequency reference value
Operation continues after fault clear,
speed search starts with the minimum frequency
7 - 14 Auto Reset Time at Restart after Fault Unit: 1
Settings 00 to 9999 sec Factory Setting: 600
7 - 15 Present Fault Record
7 - 16 Second Most Recent Fault Record
7 - 17 Third Most Recent Fault Record
7 - 18 Fourth Recent Fault Record
Factory Setting: 00
Readings 00 No fault
01 Over-current (oc)
02 Over-voltage (ov)
03 Overheat (oH)
04 Overload (oL)
05 Overload1 (oL1)
06 External fault (EF)
07 Reserved
08 CPU failure (cF3)
09 Hardware protection failure (HPF)
10 Current exceeds 2 times rated current during accel.(ocA)
11 Current exceeds 2 times rated current during decel.(ocd)
12 Current exceeds 2 times rated current during steady state operation (ocn)
13 Ground fault (GFF)
14 Reserved
15 CPU READ failure (CF1)
16 CPU WRITE failure (CF2)
17 Reserved
