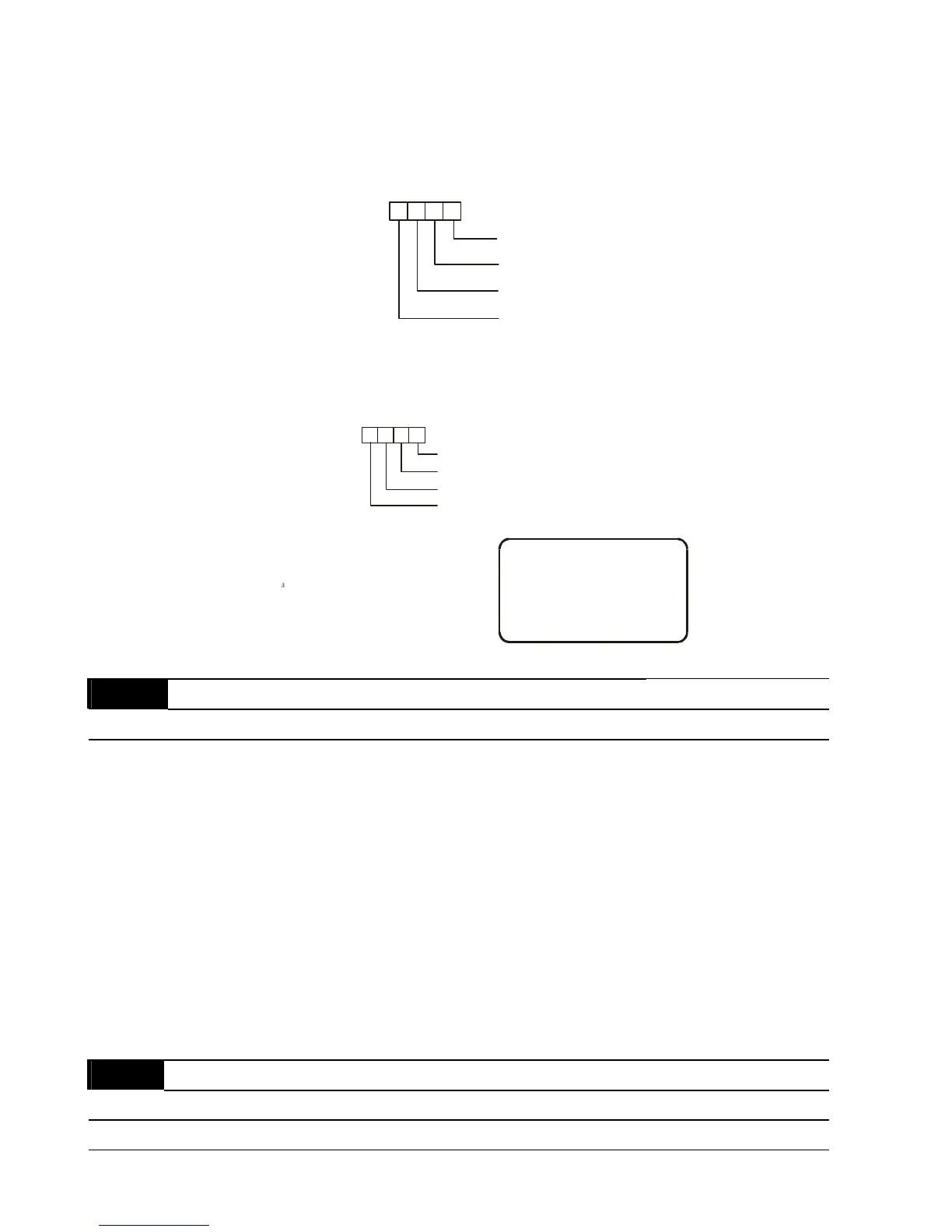

 Setting 12: It is used to display the status of the external multi-function output terminals,
including relay1, relay2, MO1 and MO2. The value it displays is hexadecimal number. It needs
to be converted to binary to get the result as following diagram.
3 2 1 0
2222
3210
*0 OFF *1 ON ＝＝
Relay 1
Relay 2
MO1
MO2
Weights
Bit
 For example: when it displays o. C. After converting C(HEX) to binary (1100), it indicates that
the terminals MO1 and MO2 are ON.
2222
3210
1100
Relay 1 =OFF
Relay 2 =OFF
MO1 =ON
MO2 =ON
*0 OFF *1 ON ＝＝
The display value
＝
＝
＝
＝
bit3x2+bit2x2+bit1x2+bit0x2
1x2+1x2+0x2+0x2
8+4+0+0
12 C (H)
＝
21
0
210
3
NOTE:
2 1 2 8 2 64
2 2 2 16 2 128
2 4 2 32
＝＝＝
＝＝＝
＝＝
0
1
2
3
4
5
6
7
Weights
Bit
0 - 05 User Defined Coefficient K Unit: 0. 1
Settings 0.1 to 160.0 Factory Setting: 1.0
 The coefficient K determines the multiplying factor for the user-defined unit.
The display value is calculated as follows:
U (User-defined unit) = Frequency Command * K (Pr.0-05)
H (actual output) = Actual output frequency * K (Pr.0-05)
Example:
A conveyor belt runs at 13.6m/s at motor speed 60Hz.
K = 13.6/60 = 0.21 (0.226667 rounded to 1 decimal), therefore Pr. 0-05=0.2
With Frequency command 35Hz, display shows U and 35*0.2=7.0m/s.
(To increase accuracy, use K=2.2 or K=22.7 and disregard decimal point.)
0 - 06 Software Version
Settings Read Only
Display #.#
