Chapter 2 Installation and Wiring|VFD-M-D Series
Revision Jan. 2007, MDE2, SW V1.05 2-13

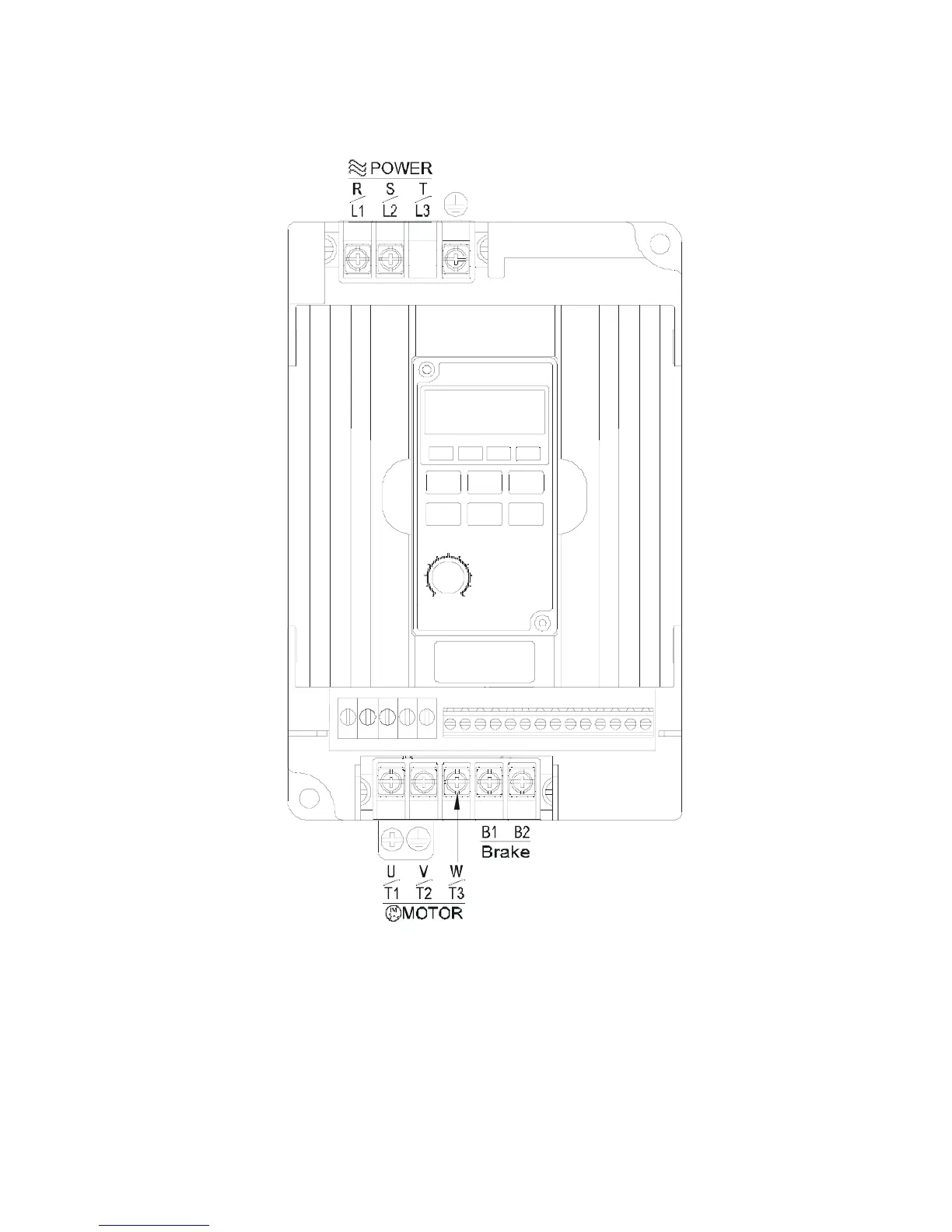

2.4.5 Main Circuit Terminals
0.5HP (0.4kW) VFD004M21B-D
Control Terminal
Torque: 2.5Kgf-cm (2.2 in-lbf)
Wire: 16-22 AWG (1.3-0.3 mm
2
)
Power Terminal
Torque: 14 kgf-cm (12 in-lbf)
Wire Gauge: 12-14 AWG (3.3-2.1mm
2
)
Wire Type: Copper only, 75°C

Delta VFD-M-D series Specifications
