Delta VFD-M-D series User Manual

Appendix B Accessories|VFD-M-D Series
B-10 Revision Jan. 2007, MDE2, SW V1.05

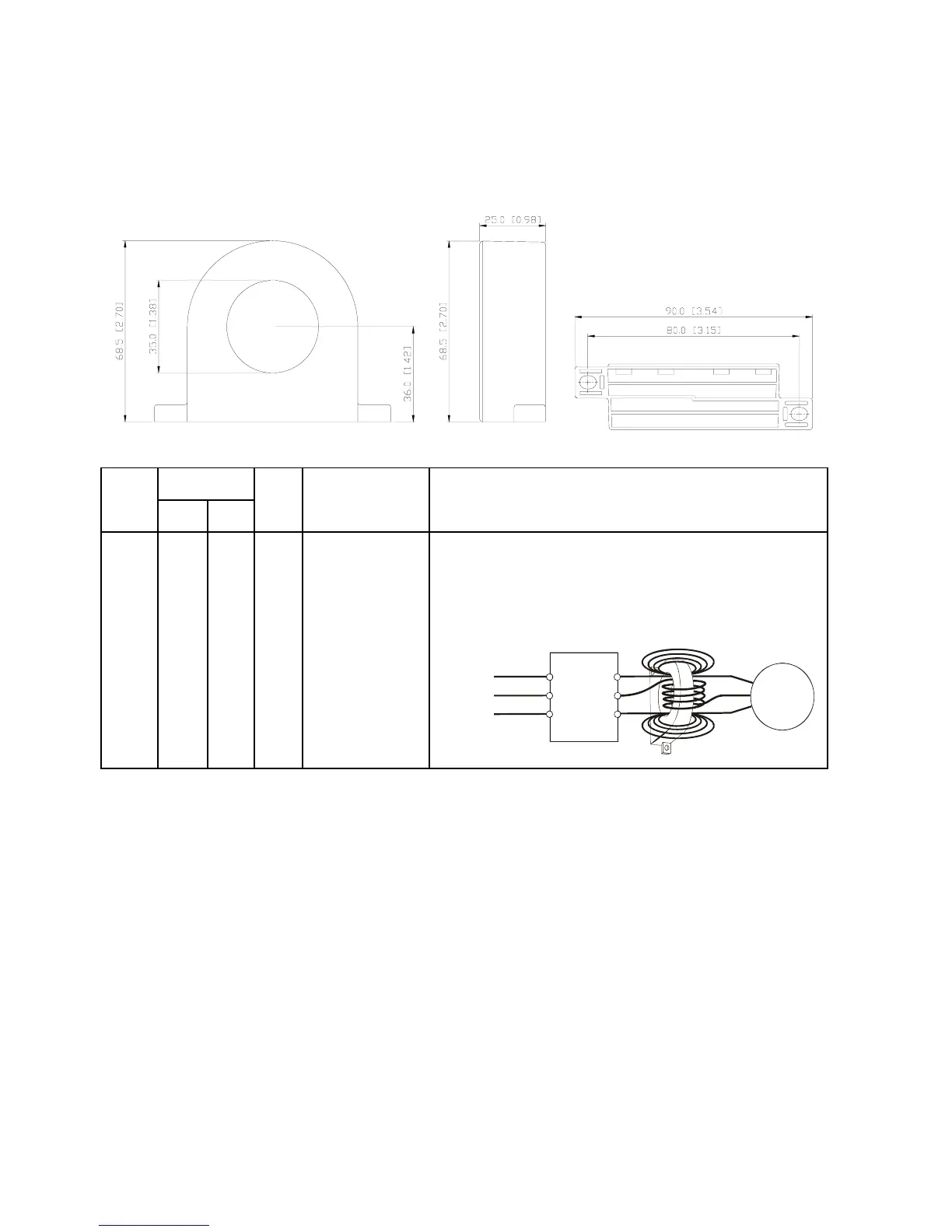

B.4 Zero Phase Reactor (RF220X00A)
Dimensions are in millimeter and (inch)
Motor
HP kW
Qty.
Recommended
Wire Size
(mm
2
)
Wiring Method
230V
Series
1/2 0.5 1 0.5 - 5.5
Please wind each wire 4 times around the core. The
reactor must be put at inverter output as close as
possible.
Power
Supply
Zero Phase Reactor
MOTOR
U/T1
V/T2
W/T3
R/L1
S/L2
T/L3
