Delta VFD-M-D series - B.2.1 Dimensions

Appendix B Accessories|VFD-M-D Series
B-6 Revision Jan. 2007, MDE2, SW V1.05

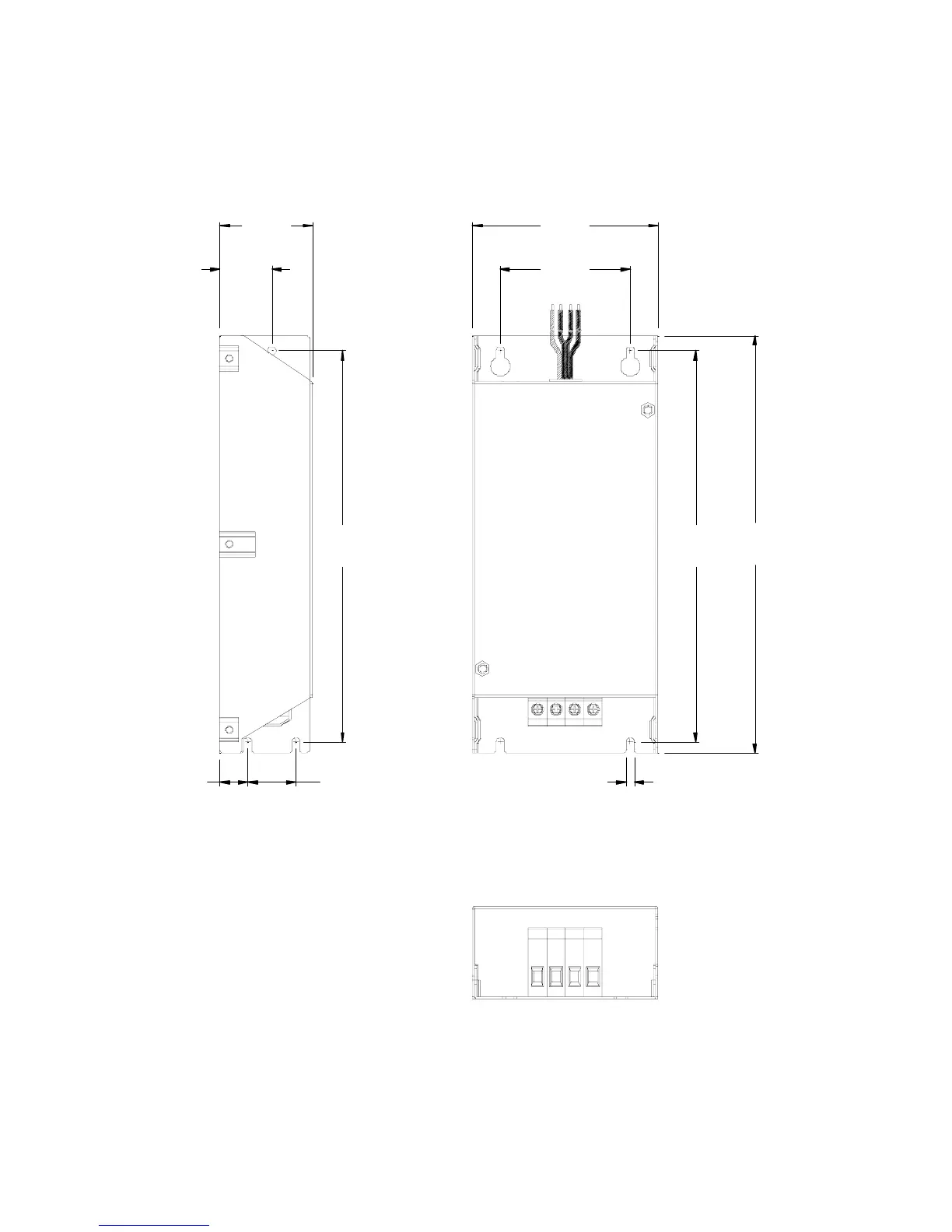

B.2.1 Dimensions
Dimensions are in millimeter and (inch)
Order P/N: RF015M21AA
70
(2.76)
226
(8.9)
100
(3.94)
212
(8.35)
212
(8.35)
28
(1.1)
50
(1.97)
26
(1.02)
15
(0.59)
4.5
(0.18)
