Delta VFD-M-D series User Manual

Chapter 5 Parameters|VFD-M-D Series
5-48 Revision Jan. 2007, MDE2, SW V1.05
4 - 18
Re-open Acceleration Boundary
Unit: 0.1
Settings 8.0 to 97.0% (100% is the door width,
acceleration area is Pr. 4-18~100%)
Factory Setting: 70.0
 During the door close, it will re-close from the open complete position to the close complete
position when there is an obstacle (the stall current exceeds Pr.4-10/4-11/4-12/4-13).
 Pr.4-14 is used to set the time for decelerating to 0Hz when there is an obstacle. It is
recommended to set a minimum value that less than the current limit to re-open in the shortest
time for people’s safety.
 It needs large current when accelerating for start open/close door. Therefore, it needs to have

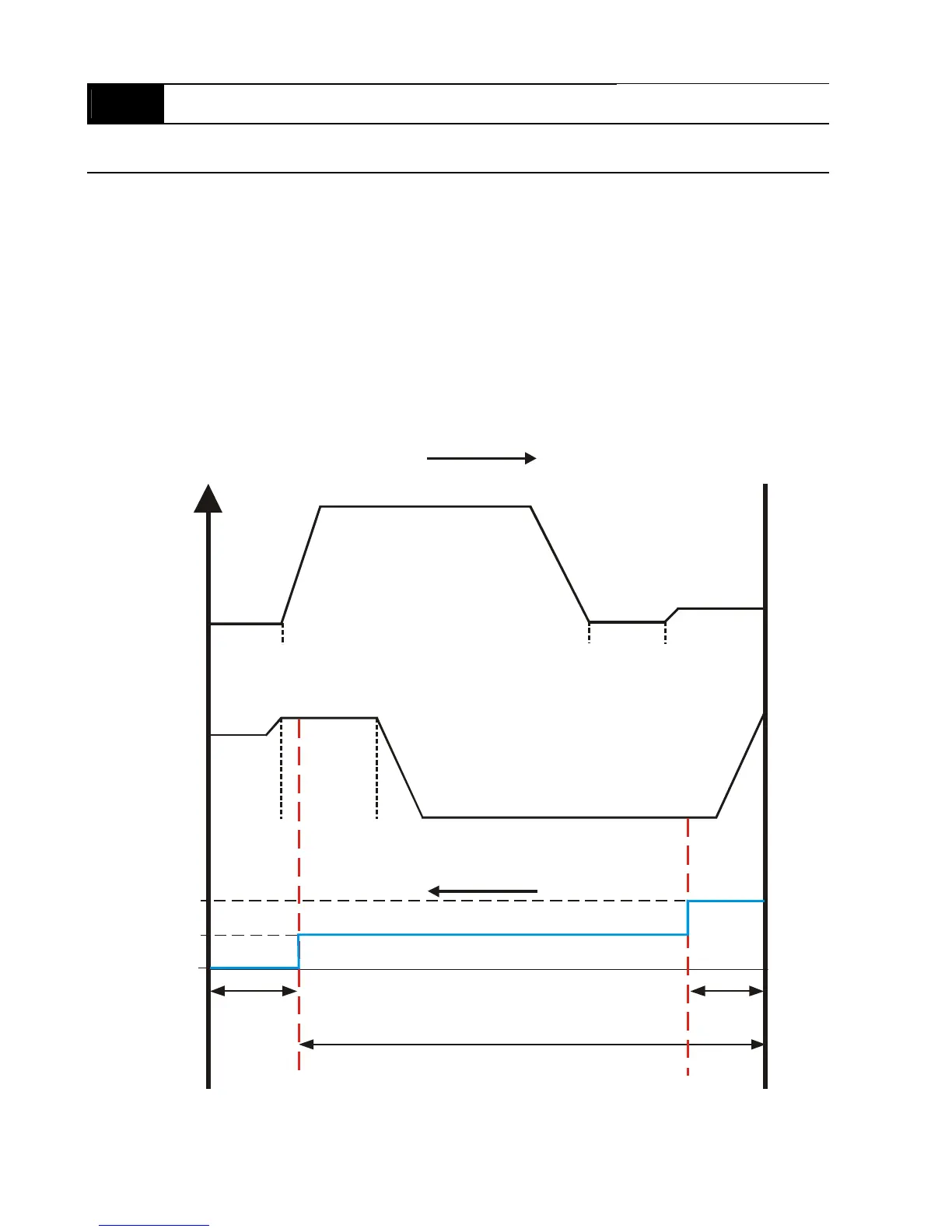

larger re-open current in the acceleration area. Please refer to following figure for setting re-
open current and acceleration area.
3-02
1st Step
Door High SpeedOpen
Open Door (REV)
3-06
Door Open
Holding Speed
3-08
1st Step Door Open
Deceleration Time
3-07
1st Step Door Open
Acceleration Time
3-00
Door Open
Coupling
Speed
3-04
Door Open
Final Speed
3-01
Door Open
High Speed
Start
3-03
Door Open Final
Speed Start
3-05
Door Open
Holding
Speed Start
Close Door (FWD)
4-05
Door Close
Acceleration
Time 1
Door Open Limit
100.0%
4-01
Door Close
Final Speed
Start
4-00
Door Close
High Speed 1
4-06
Door Close
Deceleration
Time 1
4-02
Door Close
Final Speed
4-03
Door Close
Holding Speed
Start
4-10/4-12
Re-open current
level
4-04
Door Close
Holding Speed
4-17
Re-open for Low speed
Area
4-18
Re-open
A
cceleration
Boundary
Re-open Detected Area
Door Close Limit
0.0%
4-11/4-13
Re-open current
level for Acceleration
Area
4-24
Re-open current
level for low speed
Area
