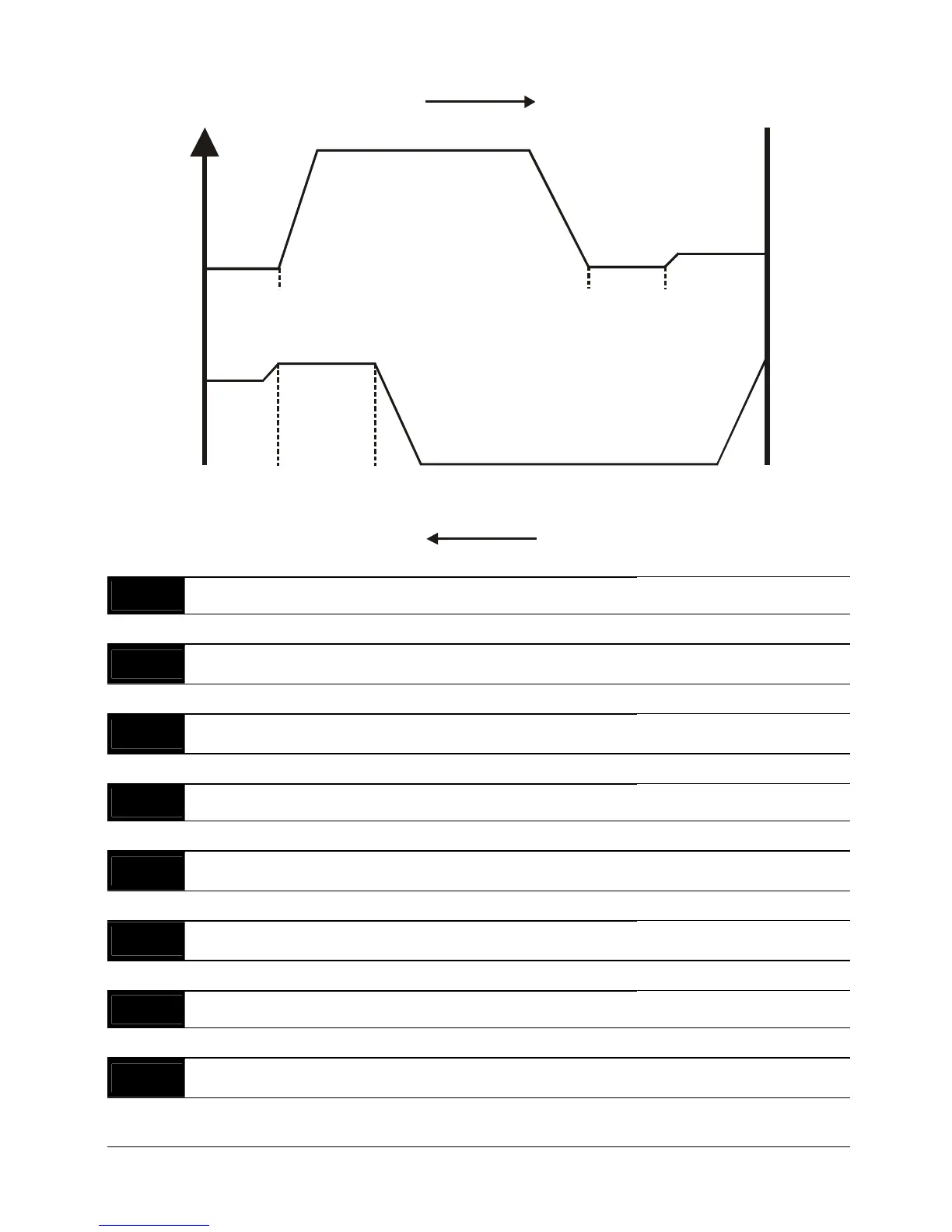

3-02
1st Step
Door High SpeedOpen
Open Door (REV)
3-06
Door Open
Holding Speed
3-08
1st Step Door Open
Deceleration Time
3-07
1st Step Door Open
Acceleration Time
3-00
Door Open
Coupling
Speed
3-04
Door Open
Final Speed
3-01
Door Open
High Speed
Start
3-03
Door Open Final
Speed Start
3-05
Door Open
Holding
Speed Start
Close Door (FWD)
4-05
Door Close
Acceleration
Time 1
Door Open Limit
100.0%
4-01
Door Close
Final Speed
Start
4-00
Door Close
High Speed 1
4-06
Door Close
Deceleration
Time 1
4-02
Door Close
Final Speed
4-03
Door Close
Holding Speed
Start
Door Close Limit
0.0%
4-04
Door Close
Holding Speed
4 - 10 Re-open Current Level 1 Unit: 0.1
Settings 0.0~150.0% (100.0% is drive rated current) Factory Setting: 100.0
4 - 11
Re-open Current Level 1 for Acceleration Area
Unit: 1
Settings 100~200% (100% is Pr.4-10 setting) Factory Setting: 150
4 - 24
Re-open Current Level 1 for Low Speed Area
Unit: 1
Settings 100~200% (100% is Pr.4-10 setting) Factory Setting: 150
4 - 12 Re-open Current Level 2 Unit: 0.1
Settings 0.0~150.0% (100.0% is drive rated current) Factory Setting: 100.0
4 - 13
Re-open Current Level 2 for Acceleration Area
Unit: 1
Settings 100~200% (100% is Pr.4-12 setting) Factory Setting: 150
4 - 25
Re-open Current Level 2 for Low Speed Area
Unit: 1
Settings 100~200% (100% is Pr.4-10 setting) Factory Setting: 150
4 - 14 Re-open Deceleration Time Unit: 0.1
Settings 0.1~3600sec Factory Setting: 0.2
4 - 17
Re-open for Low Speed Area
Unit: 0.1
Settings 1.0 to 99.0% (100% is the door width, low
speed area is 0%~Pr. 4-17)
Factory Setting: 2.0
