Delta VFD-M-D series User Manual

Chapter 5 Parameters|VFD-M-D Series
5-40 Revision Jan. 2007, MDE2, SW V1.05

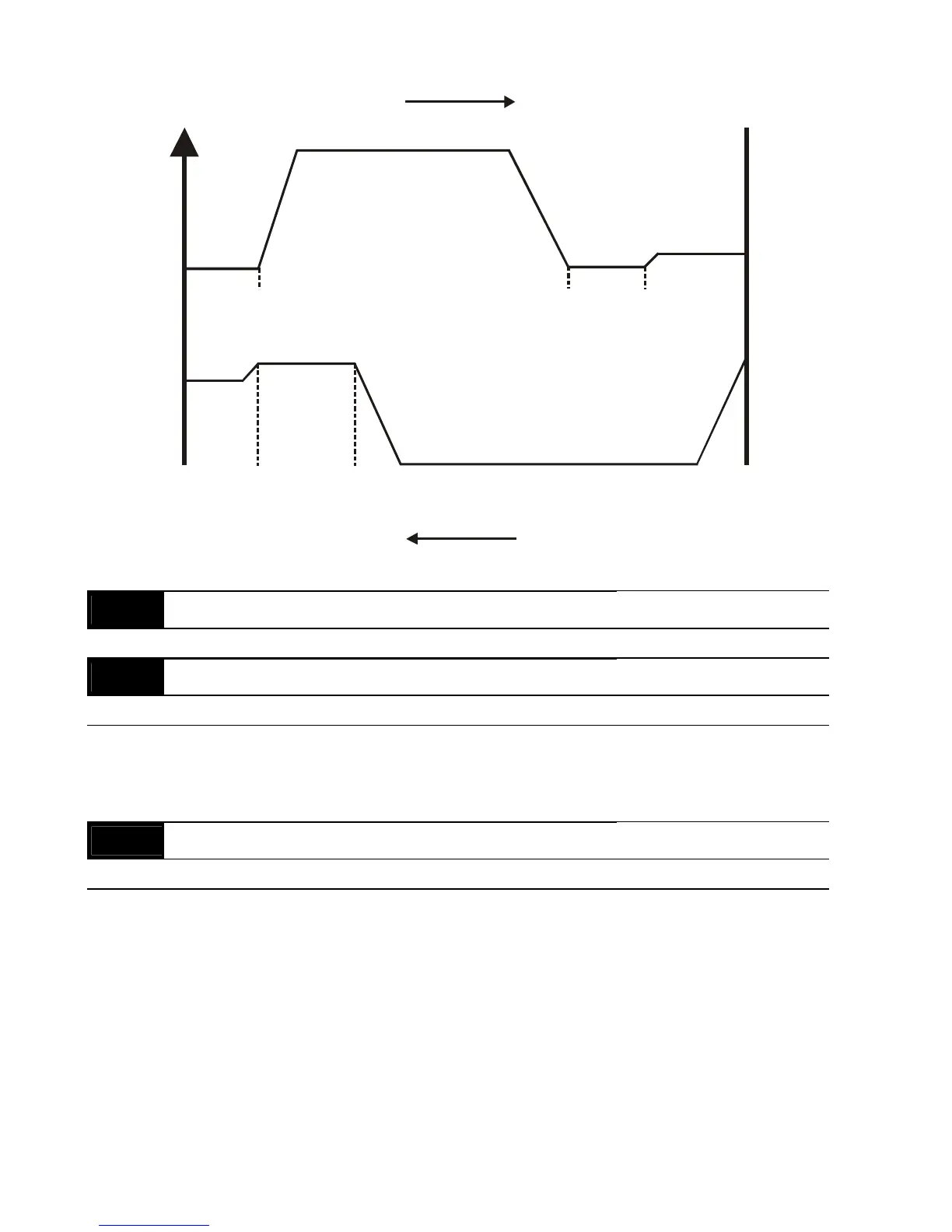

3-02
1st Step
Door High SpeedOpen
Open Door (REV)
3-06
Door Open
Holding Speed
3-08
1st Step Door Open
Deceleration Time
3-07
1st Step Door Open
Acceleration Time
3-00
Door Open
Coupling
Speed
3-04
Door Open
Final Speed
3-01
Door Open
High Speed
Start
3-03
Door Open Final
Speed Start
3-05
Door Open
Holding
Speed Start
Close Door (FWD)
4-05
Door Close
Acceleration
Time 1
Door Open Limit
100.0%
4-01
Door Close
Final Speed
Start
4-00
Door Close
High Speed 1
4-06
Door Close
Deceleration
Time 1
4-02
Door Close
Final Speed
4-03
Door Close
Holding Speed
Start
Door Close Limit
0.0%
4-04
Door Close
Holding Speed
3 - 12 Door Open Holding Torque (100.0% is drive rated current) Unit: 0.1
Settings 0.0~100.0% Factory Setting: 50.0
3 - 13 Response Time of Door Open Holding Torque Unit: 0.01
Settings 0.01~10.00sec Factory Setting: 0.20
 When the door is in the open complete position, it needs holding torque to make the door be in
that position. To prevent motor overload, the holding torque should be limited (Pr.3-12).
3 - 14 Door Open Time-out Setting Unit: 0.1
Settings 0.0~180.0sec (0.0: disable) Factory Setting: 0.0
 When the door open exceeds this setting, the fault code “doEr” will occur and the motor will
decelerate to stop. It needs to have door open/close command again after resetting the AC
motor drive.
 Any type of voltmeter can be used. If the meter reads full scale at a voltage less than 10 volts,
the parameter 03-06 should be set using the following formula:
Pr. 03-06 = ((meter full scale voltage)/10) x 100%
For Example: When using the meter with full scale of 5 volts, adjust Pr.03-06 to 50%. If Pr.03-
05 is set to 0, then 5VDC will correspond to Maximum Output Frequency.
