Delta VFD-M-D series User Manual

Chapter 5 Parameters|VFD-M-D Series
Revision Jan. 2007, MDE2, SW V1.05 5-21

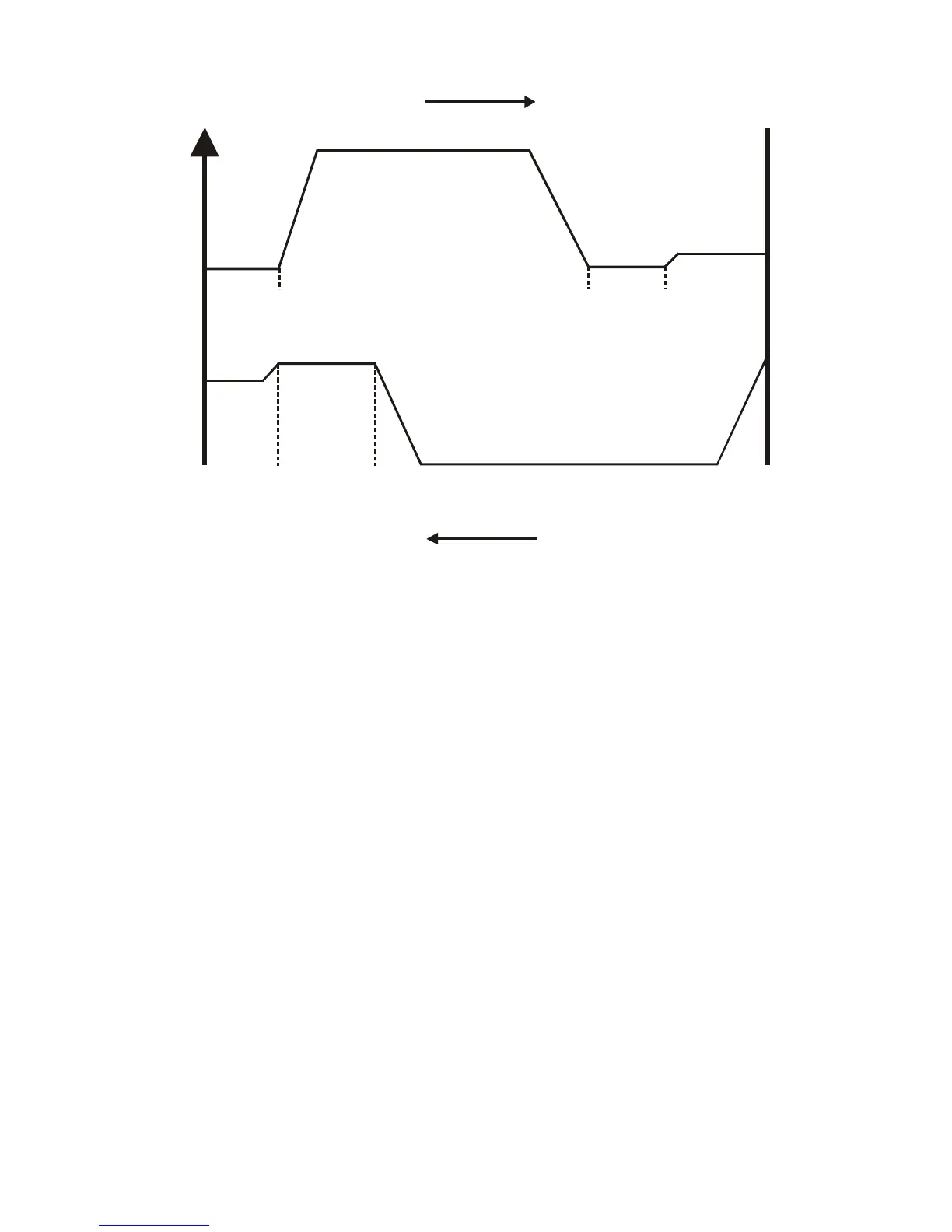

3-02
1st Step
Door High SpeedOpen
Open Door (REV)
3-06
Door Open
Holding Speed
3-08
1st Step Door Open
Deceleration Time
3-07
1st Step Door Open
Acceleration Time
3-00
Door Open
Coupling
Speed
3-04
Door Open
Final Speed
3-01
Door Open
High Speed
Start
3-03
Door Open Final
Speed Start
3-05
Door Open
Holding
Speed Start
Close Door (FWD)
4-05
Door Close
Acceleration
Time 1
Door Open Limit
100.0%
4-01
Door Close
Final Speed
Start
4-00
Door Close
High Speed 1
4-06
Door Close
Deceleration
Time 1
4-02
Door Close
Final Speed
4-03
Door Close
Holding Speed
Start
Door Close Limit
0.0%
4-04
Door Close
Holding Speed
 01 Distance control mode 2
This function is the same as “00 distance control mode 1”. The difference is using PG to
control the speed. Refer to the following diagram for detail. In this mode, position function will
be executed whenever power again and operates with low speed to the 0% or 100% door
width by the operation direction.
 02 Multi-step control mode 1
The drive is controlled by sensorless control. For operating the door, it uses four multi-input
(level trigger) for speed switch and limit switches for completed position.
