Delta VFD-M-D series User Manual

Chapter 5 Parameters|VFD-M-D Series
5-60 Revision Jan. 2007, MDE2, SW V1.05
5 - 34 Reset after re-open/re-close
Factory Setting: 00
Settings 00 Bit0=0: Disable to detect the incorrect open/close limit function
01 Bit0=1: Enable to detect the incorrect open/close limit function
02 Bit1=0: Enable to re-open when door close error
03 Bit1=1: Disable to re-open when door close error
04 Bit2=0 Enable S-Curve when re-open
05 Bit2=1 Disable S-Curve when re-open

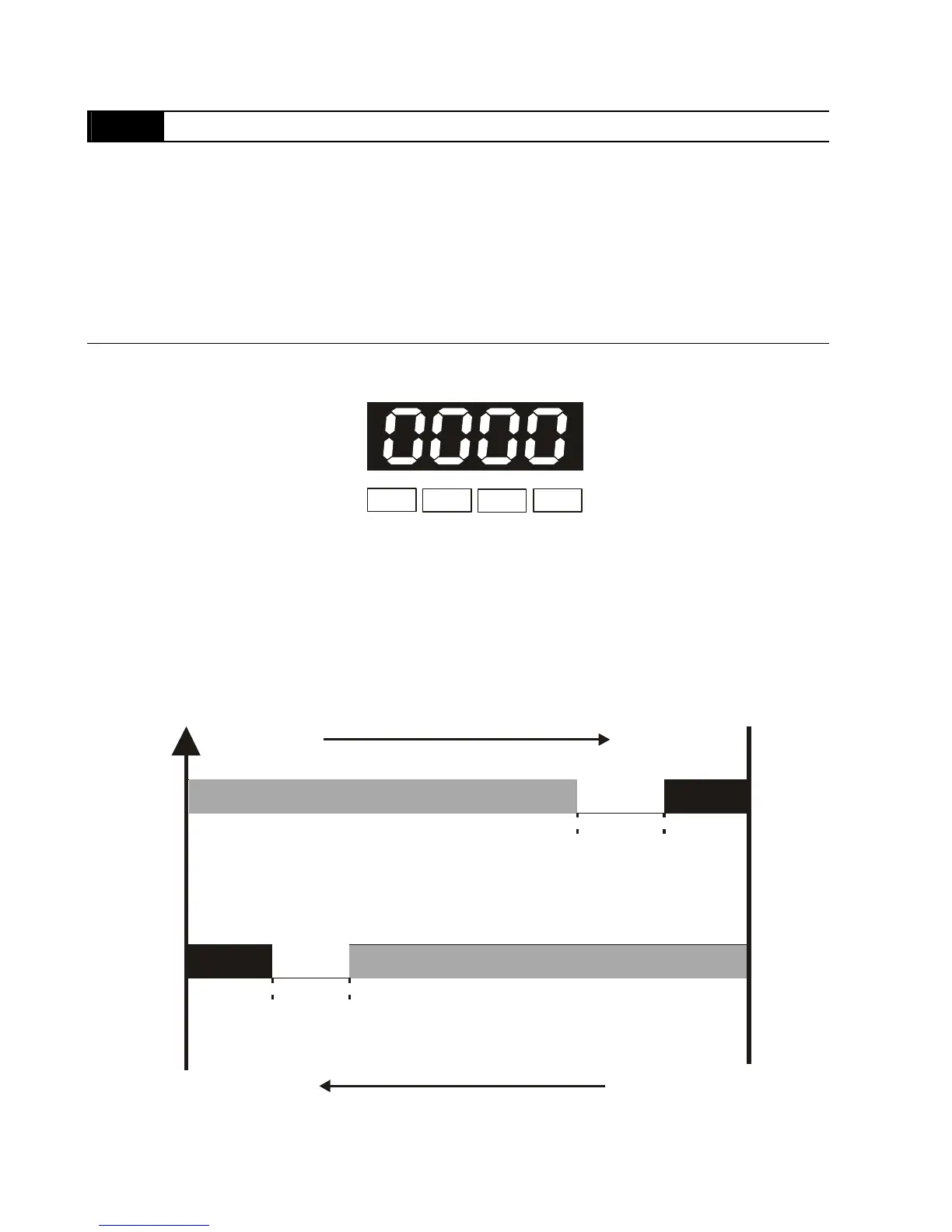

It uses bit setting. Following figure shows the relation between the bit and the keypad.
RUN
STOP
FWD
REV
Bit
012
3
 The keypad LC-M2E will display PSEr (position signal error) when following item occurs.
1. When Pr.5-34 is set to Bit0=1 and Pr.0-09 is set to 00 or 01: incorrect door open/close limit.
2. When Pr.5-34 is set to Bit0=1 and Pr.00-09 is set to 04: The operation steps for the door
open/close aren’t by the setting.
 When Pr.0-09 is set to 00/01, the detection method for the incorrect door open/close limit is
shown as follows.
3-03
Door Open Final
Speed Start
3-05
Door Open
Holding
Speed Start
Door Open Limit
100.0%
4-01
Door Close
Final Speed
Start
4-03
Door Close
Holding Speed
Start
Door Close Limit
0.0%
Open(REV)
Close(FWD)
No signal
for the door
close limit
The signal for the door close limit is received
The signal for the door open limit is received
No signal
for the door
open limit
