Delta VFD-M-D series User Manual

Chapter 5 Parameters|VFD-M-D Series
5-64 Revision Jan. 2007, MDE2, SW V1.05
Settings Function Description
21
The signal outputs when
it is in close completed
position
Active when position mode (Pr.0-15) is set to 00 or 04 and
the door width is less than Pr.4-03 setting during the door
close.
Active when position mode (Pr.0-15) is set to 02 or 03 and
one of the Pr.5-00 to Pr.5-10 is set to 18.
22
The signal outputs when
it is in open completed
position
Active when position mode (Pr.0-15) is set to 00 or 04 and
the door width is greater than Pr.3-05 during the door open.
Active when position mode (Pr.0-15) is set to 01 or 03 and
one of the Pr.5-00 to Pr.5-10 is set to 17.
23 Door Close Error
Active when door close error. (no matter it will re-open or
not)
24 Reserved
25 Position Complete Signal
Active when finishing position after applying power again or
PGEr.
26 Reserved

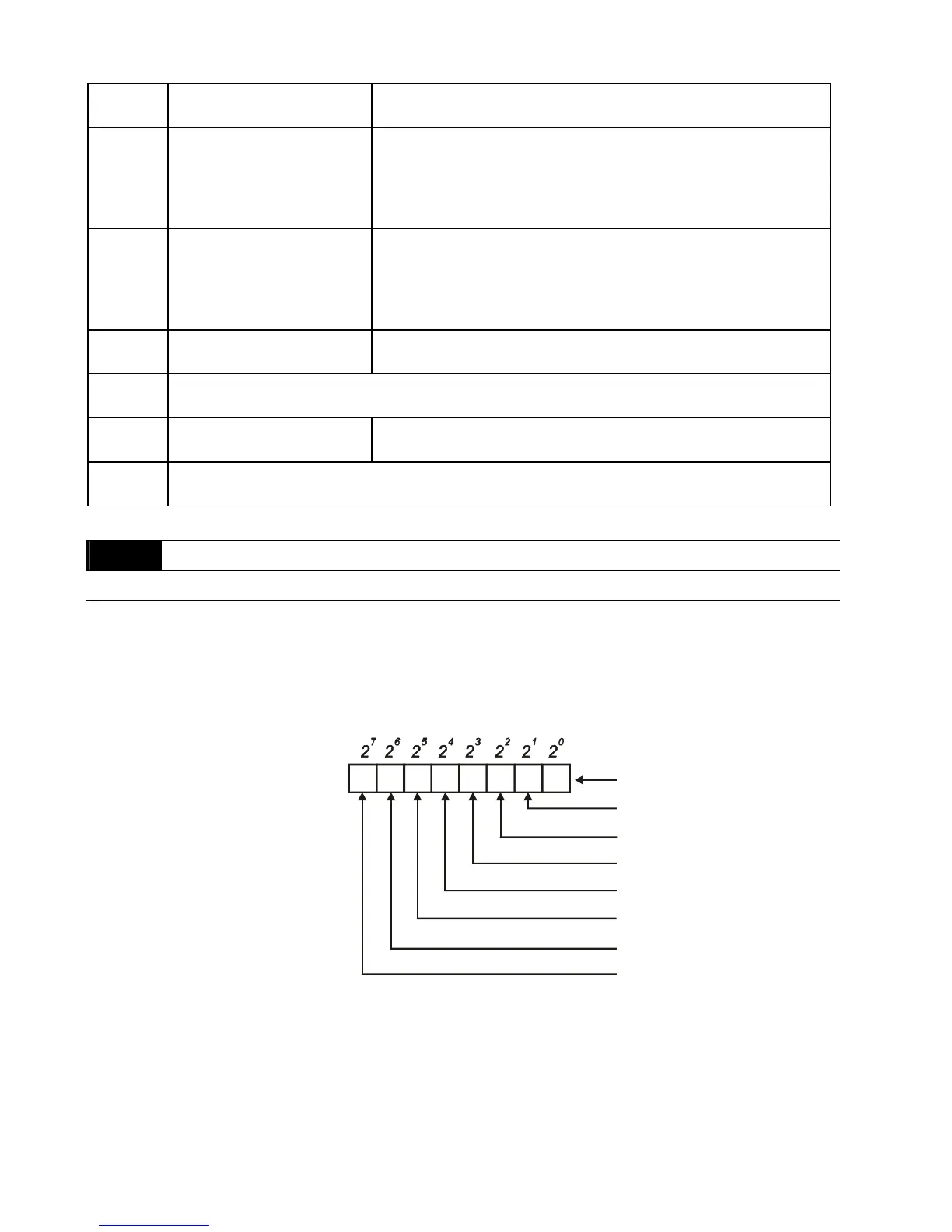

 This parameter is used to determinate the output status (N.O./N.C.) of Pr.6-00 to Pr.6-07.
 The equivalent 8-bit number is used to program the output status of Pr.6-00 to Pr.6-07 as
shown in the following. This 8-bit number should be converted to decimal number to input to
this parameter (Pr.6-08).
12345 0
0=N.O
1=N.C
Relay 1
Relay 2
MO1
MO2
MO3
MO4
Weights
Bit
67
MO5
MO6
For example:
6 - 08
 Multi-function Output Status
Unit: 1
Settings
00 to 255
Factory Setting: 00
