Chapter 5 Parameters|VFD-M-D Series
Revision Jan. 2007, MDE2, SW V1.05 5-31

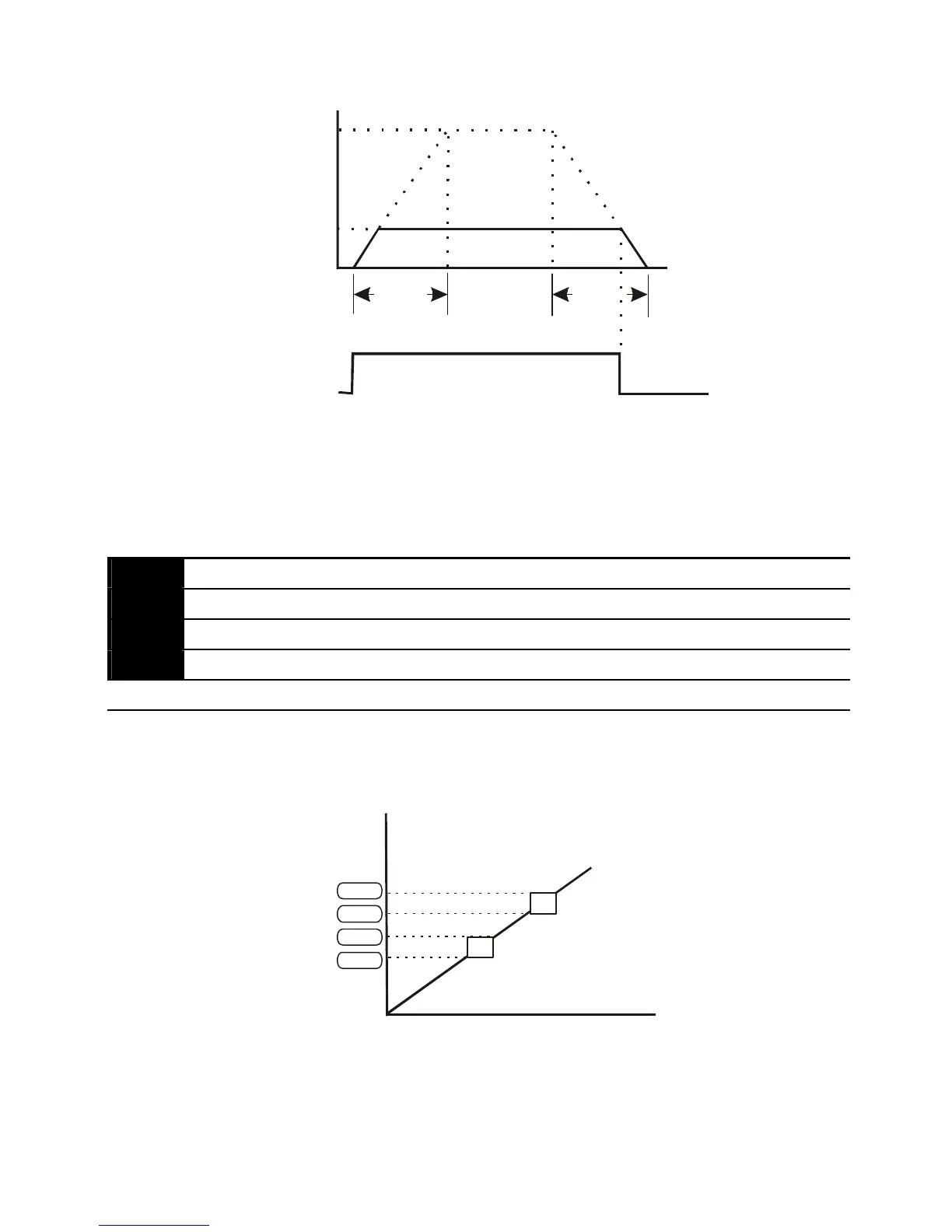

Frequency
Max.
Output
freq.
Pr.1-00
Low
Speed
Freq.
Pr.1-07
Acceleration Time
Deceleration Time
Time
Low speed
operation
command
ON
OFF
Pr. 1-08
Pr. 1-09
 It will run by these settings (Pr.1-07, Pr.1-08 and Pr.1-09) for position function (demo mode,
power on position, position after PG error, position after limit switch error or input position
signal again).
1 - 10 Skip Frequency 1 Upper Limit Unit: 0.01
1 - 11 Skip Frequency 1 Lower Limit Unit: 0.01
1 - 12 Skip Frequency 2 Upper Limit Unit: 0.01
1 - 13 Skip Frequency 2 Lower Limit Unit: 0.01
Settings 0.00 to 400.0Hz Factory Setting: 0.00
 These parameters set the Skip Frequencies. It will cause the AC motor drive never to remain
within these frequency ranges with continuous frequency output.
 These four parameters should be set as follows Pr.1-10 ≥ Pr.1-11 ≥ Pr.1-12 ≥ Pr.1-13.
0
1-10
1-11
1-12
1-13
setting frequency
internal frequency command
