8. Multi-step mode 2 (Pr.0-09=3)
MI1
MI2
MI3
05-00=1
05-01=2
05-02=3
MI3
05-03=17
5-19
3rd step
speed
5-17
1st step
speed
5-18
2nd step
speed
5-20
4th step
speed
5-21
5th step
speed
Door Open(REV)
5-22
6th step
speed
5-23
7th step
speed
5-24
8th step
speed
Door Open Limit

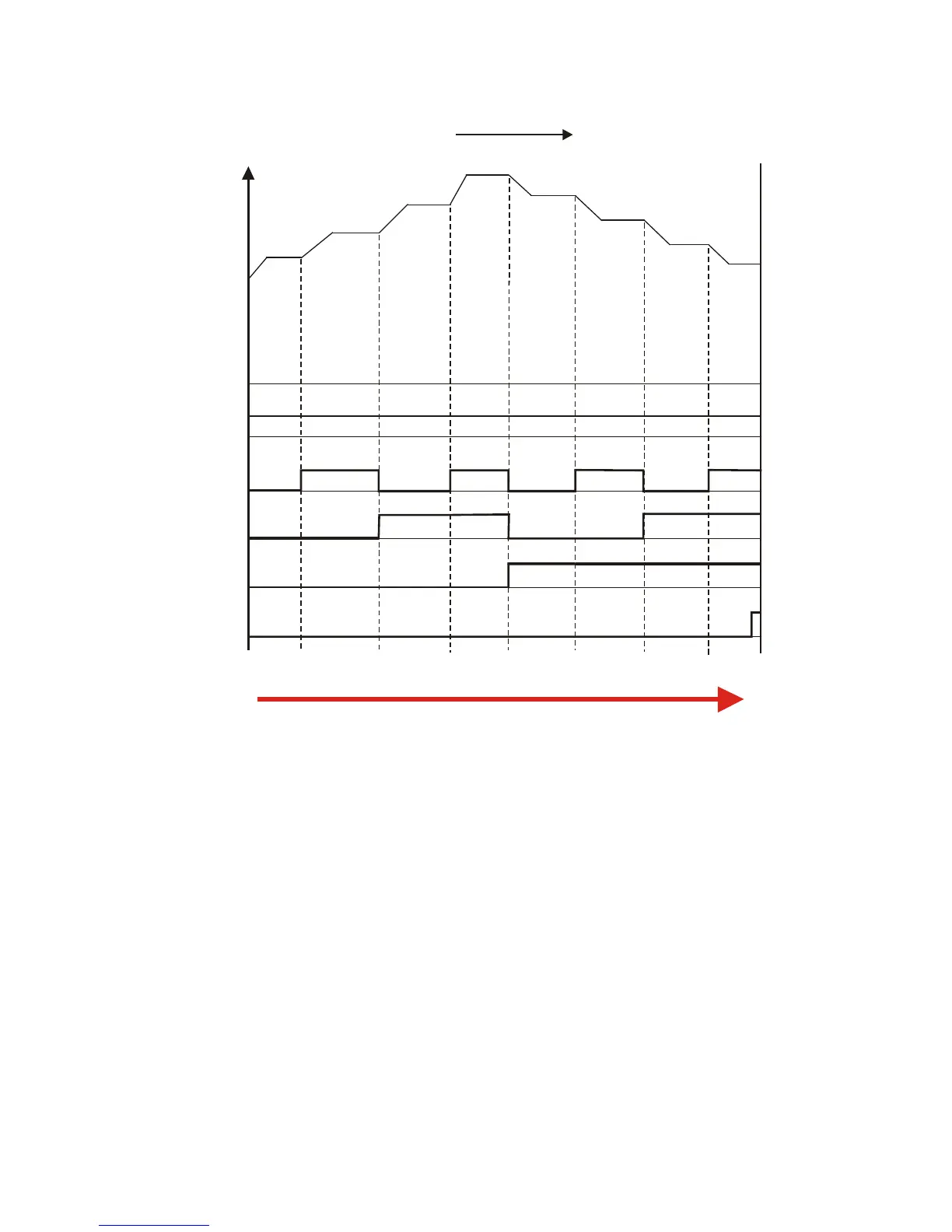

Timing Diagram for the Door Open
