Chapter 5 Parameters|VFD-M-D Series
Revision Jan. 2007, MDE2, SW V1.05 5-45
10. Multi-step mode 4 (Pr.0-09=5)
FWD
REV
MI1
MI2
MI3
MI4
5-18
5-19
5-20
5-21
5-22
Door Open(REV)

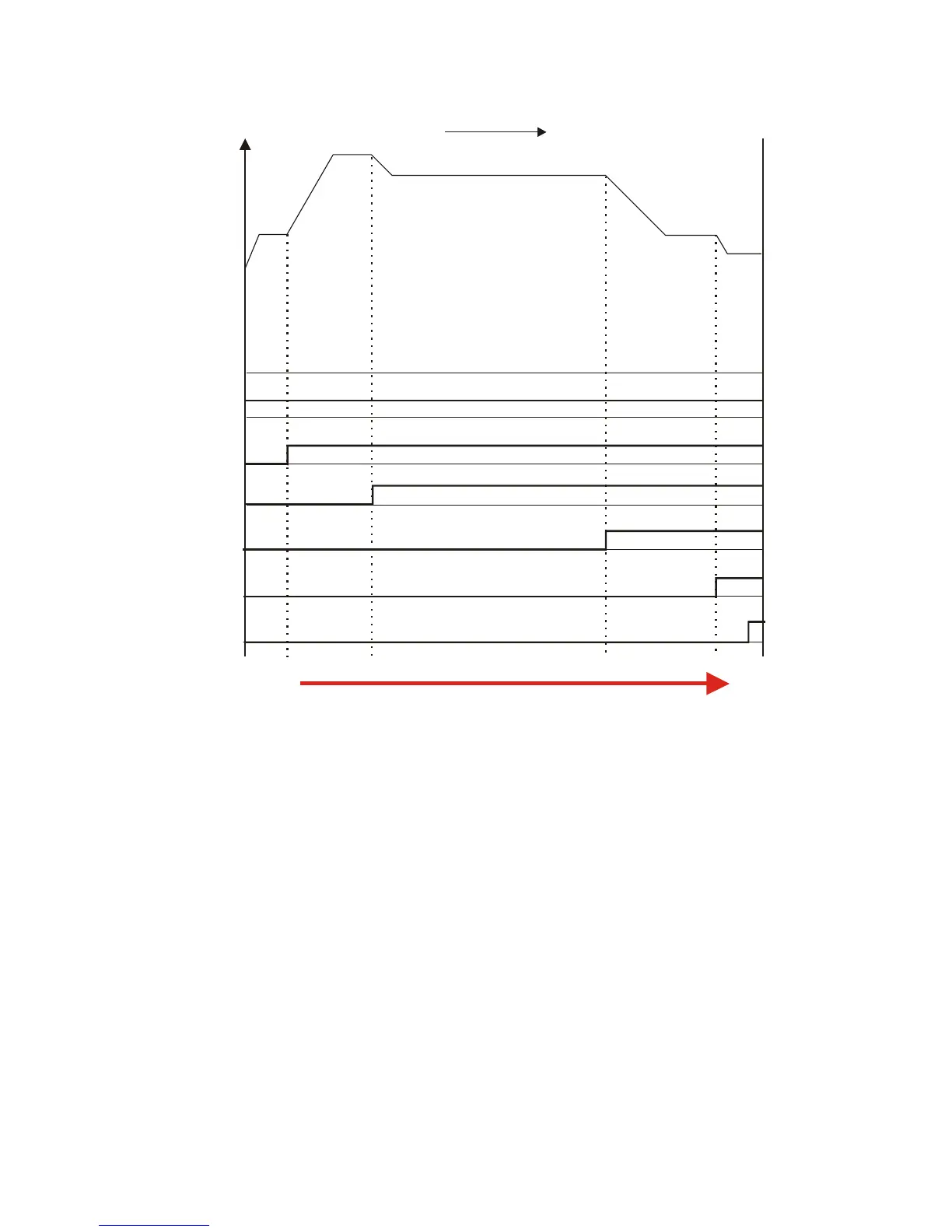

Timing Diagram for the Door Open
05-00=1
05-01=2
05-02=3
05-03=4
MI5
05-04=17
Door Open Limit
3-07
1st Step Door Open
Acceleration Time
3-08
1st Step Door Open
Deceleration Time
