3. Multi-step mode 3 (Pr.0-09=4)
FWD
REV
5-23
5-24
5-27
5-26
5-25
Door Close(FWD)
MI1
MI2
MI3
MI4
05-00=1
05-01=2
05-02=3
05-03=4
A
05-05=18
Door Close Limit
4-06
Door Close
Deceleration
Time 1
4-05
Door Close
Acceleration
Time 1

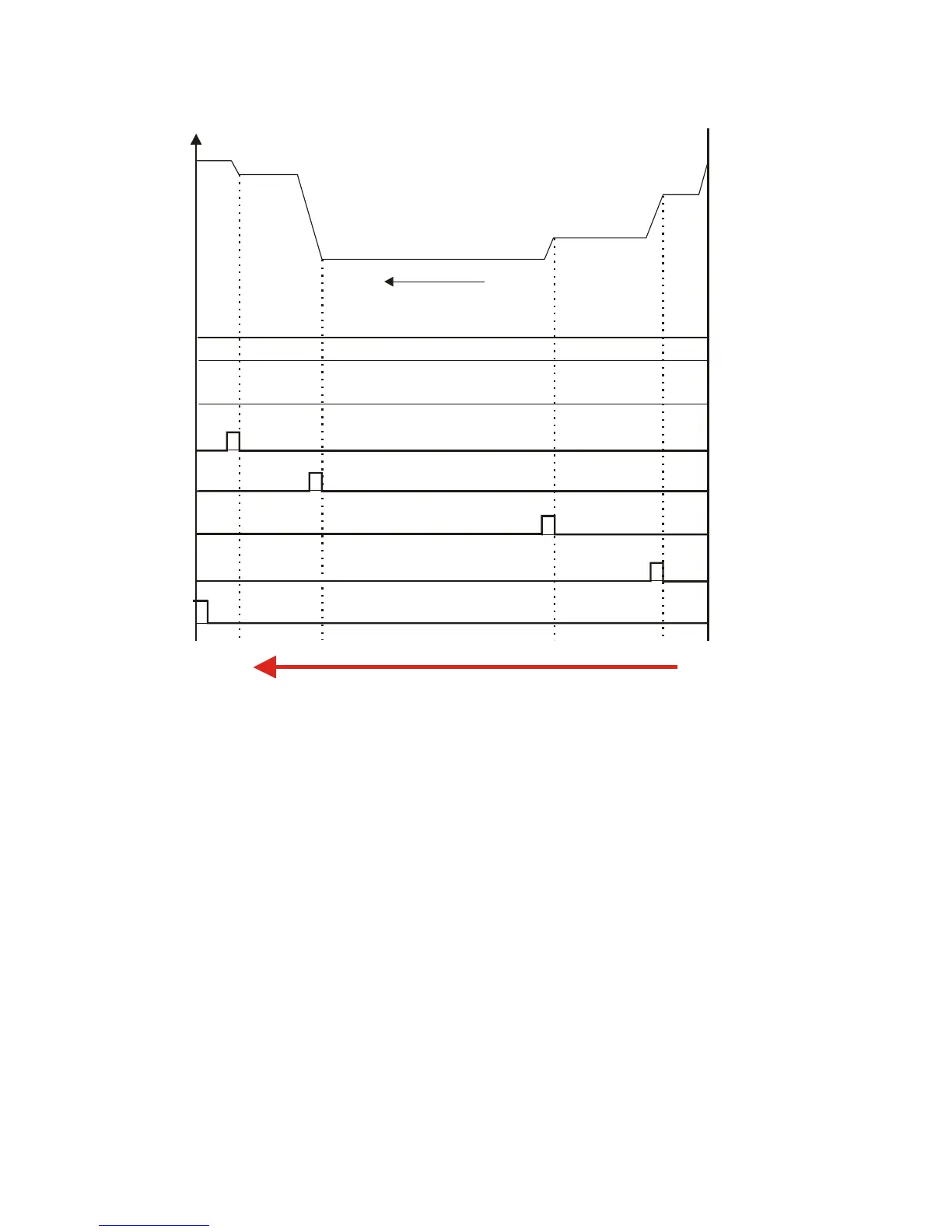

Timing Diagram for the Door Close
