103
2 Amp Assign mode
Normal : This is the recommended amplifier assignment mode. Normally select this when not conducting the power amplifier
assignment.
By default, this is set to “Normal”.
Advanced : With this mode, the power amplifiers can be assigned freely to the desired channels according to the speaker system you are
using.
Adv+Front B : With this mode, the power amplifiers can be assigned freely to the desired channels and front B.
• The following modes can be selected when there are power amplifiers that are free with respect to the recommended amplifier assignment
(“Normal”).
+Zone2 : This mode is the setting of the status in which the power amplifier is assigned to the Zone2 output channel.
+Zone3 : This mode is the setting of the status in which the power amplifier is assigned to the Zone3 output channel.
+Zone4 : This mode is the setting of the status in which the power amplifier is assigned to the Zone4 output channel.
+Zone2/3 : This mode is the setting of the status in which the power amplifier is assigned simultaneously to the Zone2 and 3 output
channels.
+Zone3/4 : This mode is the setting of the status in which the power amplifier is assigned simultaneously to the Zone3 and 4 output
channels.
+Zone2/4 : This mode is the setting of the status in which the power amplifier is assigned simultaneously to the Zone2 and 4 output
channels.
+Zone2/3/4 : This mode is the setting of the status in which the power amplifier is assigned simultaneously to the Zone2, 3 and 4 output
channels.
Bi-Amp+Front : This mode is the setting for playing the front channel with Bi–amp connections.
Bi-Amp : This mode is the setting for playing the front, center and surround channels with Bi–amp connections.
NOTES:
• The amplifier assignment modes that can be selected differ according to the channel settings made at “7-1. Channel Setup” (See pages
97~100).
• The status in which power amplifiers are assigned to output channels in the different amplifier assignment modes differs according to
the channel settings for the different zones. (See pages 103~105)
• If the “Advanced” or “Adv+Front B” amplifier assignment mode is selected, the channels to which power amplifiers can be assigned
differ according to the channel settings for the different zones. (See page 105)
2 Table of power amplifier assignment modes with respect to the channel settings for the different zones and
assignment modes
• Amp Assign mode: Normal
Channel Setup /
Power Amp Assign
MAIN ZONE
L1
9.1 CH
FL R1 FR
L2 C R2 –
L3 SL A R3 SR A
L4 SL B R4 SR B
L5 SBL R5 SBR
L1
7.1 CH
FL R1 FR
L2 C R2 –
L3 SL A R3 SR A
L4 – R4 –
L5 SBL R5 SBR
L1
5.1 CH
FL R1 FR
L2CR2–
L3 SL A R3 SR A
L4–R4–
L5–R5–

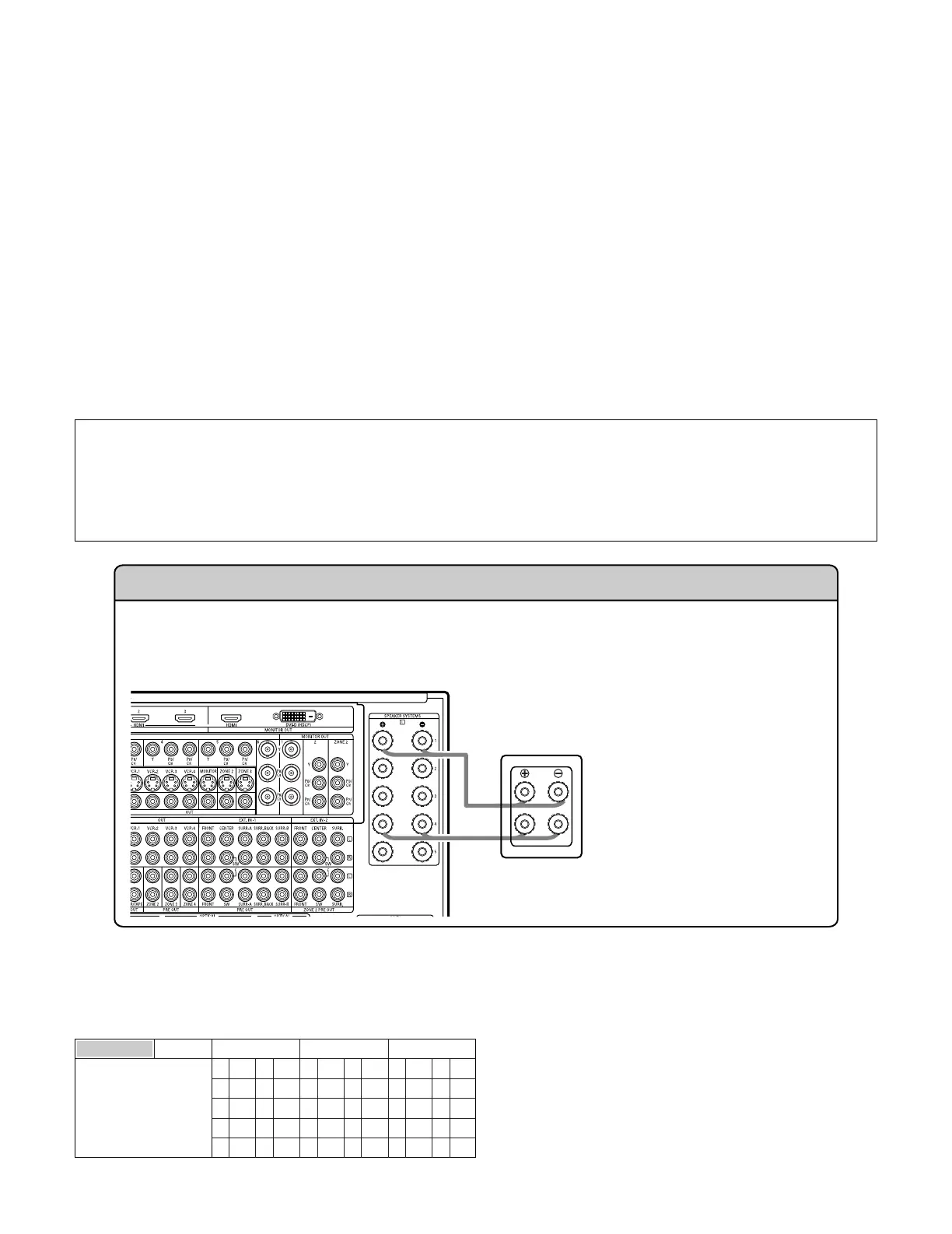

Bi-Amp connections
Certain loudspeakers are equipped with two sets of input terminals, for bi-amplification. The AVR-5805 Amp Assign mode allows
you to power bi-amp-capable speakers with two amplifier channels, up to a total of 5 bi-amplified speakers in a system using all
10 of the AVR-5805 amplifier channels. Be sure to consult the owner’s manual of your bi-amp-capable speakers for further
information before proceeding.
AVR-5805
SPEAKER
NOTE:
• When making bi-amp connections,
be sure to remove the short-circuiting
bar included with the speaker.
To Next Page
