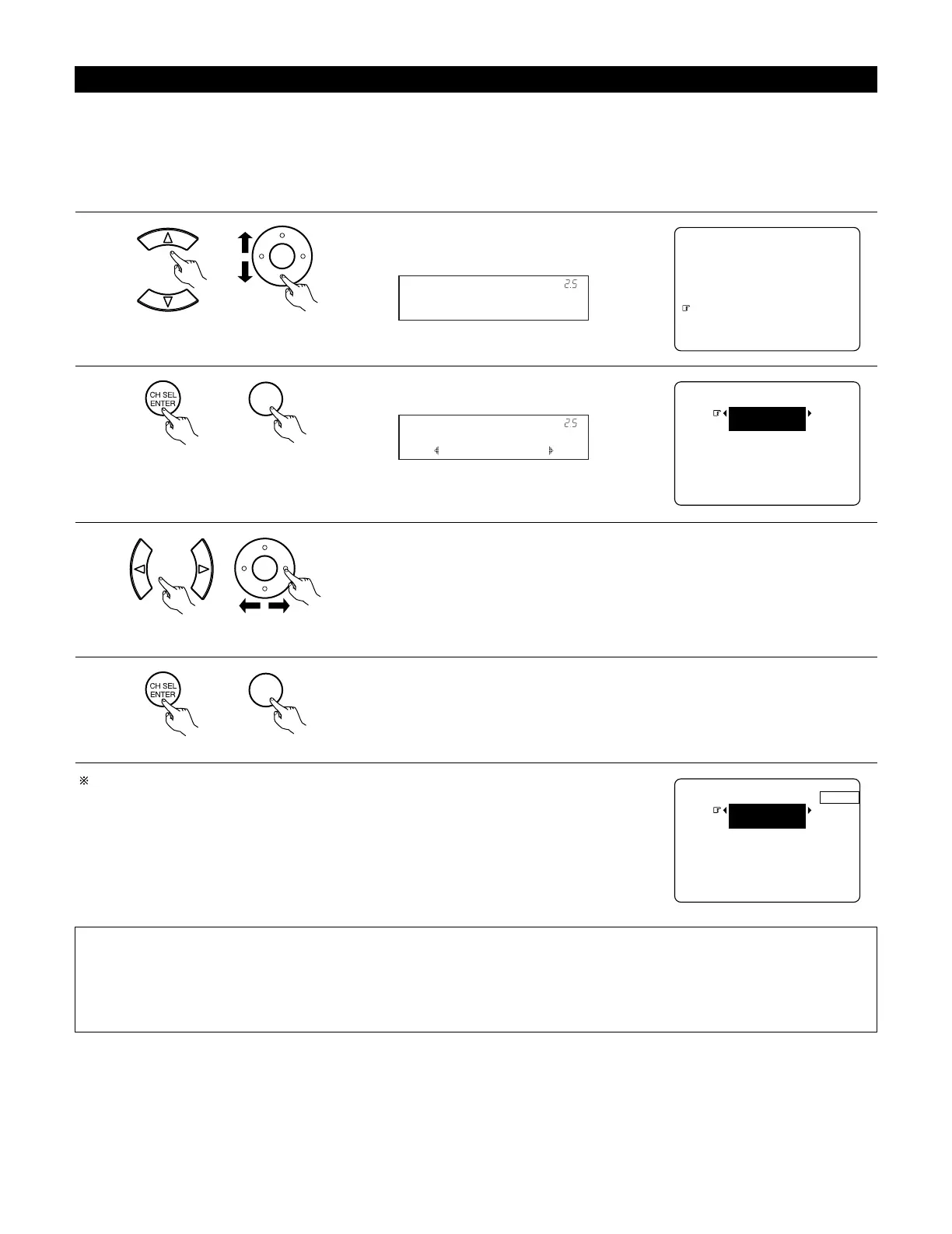

2-5. Setting the Crossover Frequency
ĺἩńŭŪŮŮŪűŠŭ¥ŇŭŠŬŰŠũŞŴ
¥
¥
¥
¥
¥
¥
¥¥¥¥¥¥¥¥¥ŇŤųŠş
¥
¥¥¥¥¥¥¥¥¥áŕʼnřá
1
Select the “Crossover Frequency” at the Speaker
Setup Menu.
• Set the crossover frequency according to the low frequency response characteristics of the various (front, center, surround and surround back)
speaker systems.
• If a connected main or surround loudspeaker has a specified –3 dB low frequency response rolloff, adjust the crossover frequency for that
speaker to match the specified low frequency response limit – e.g. 80 Hz.
• When a speaker is set to SMALL, low frequencies in that channel that are below the crossover frequency are directed to the system’s
subwoofer(s), or to speakers that are set to LARGE, for systems with no connected subwoofer(s).
Select the frequency.
Crossover Freq.
*Speaker Setup
4
Enter the setting.
The Speaker Setup Menu reappears.
3
2
Display the Crossover Frequency screen.
Fixed -THX-
*Crossover Freq
¥¥¥
¥¥Ĺ©ŔūŠŜŦŠŭ¥ńŪũšŤŢ©
¥¥ĺ©ŔŰŝŲŪŪšŠŭ¥ŔŠůŰū
¥¥Ļ©ŅŠŧŜŴ¥ŕŤŨŠ
¥¥ļ©ńţŜũũŠŧ¥ōŠűŠŧ
¥¥Ľ©ńŭŪŮŮŪűŠŭ¥ŇŭŠŬŰŠũŞŴ
¥¥ľ©ŔŰŭŭŪŰũş¥Ŕū¥ŔŠůŰū
¥¥Ŀ©ŕʼnř¥łŰşŤŪ¥ŔŠůŰū
¥¥ņųŤů
¥ĺ©ŔūŠŜŦŠŭ¥ŔŠůŰū
FIXED –THX– :
Set to the THX rated 80 Hz crossover frequency.
VARIABLE 40, 60, 80, 90, 100, 110, 120, 150, 200, 250 Hz :
Set as desired according to your speakers’ bass playback ability.
Advanced :
The crossover frequency can be set individually for the different speakers. (See page 54)
If “LFE+Main” is set at “2-2. Subwoofer Setup”, “SW:LFE+Main” (see page 48) is displayed at the
top right of the screen.
ĺἩńŭŪŮŮŪűŠŭ¥ŇŭŠŬŰŠũŞŴ
¥
¥
¥
¥
¥
¥
¥¥¥¥¥¥¥¥¥ŇŤųŠş
¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥ŔŘ«
¥¥¥¥¥¥¥¥¥áŕʼnřá
.('/CKP
NOTES:
• The crossover frequency is set to 80 Hz in the HOME THX CINEMA mode.
• We recommend using with the crossover frequency set to “FIXED –THX–”, but depending on the speaker, setting it to a different
frequency may improve frequency response near the crossover frequency.
• The crossover frequency mode is valid only when subwoofer is set to ON, and when one or more speakers are set to SMALL, as
described in section “2-1. Speaker Configuration” settings.
