11

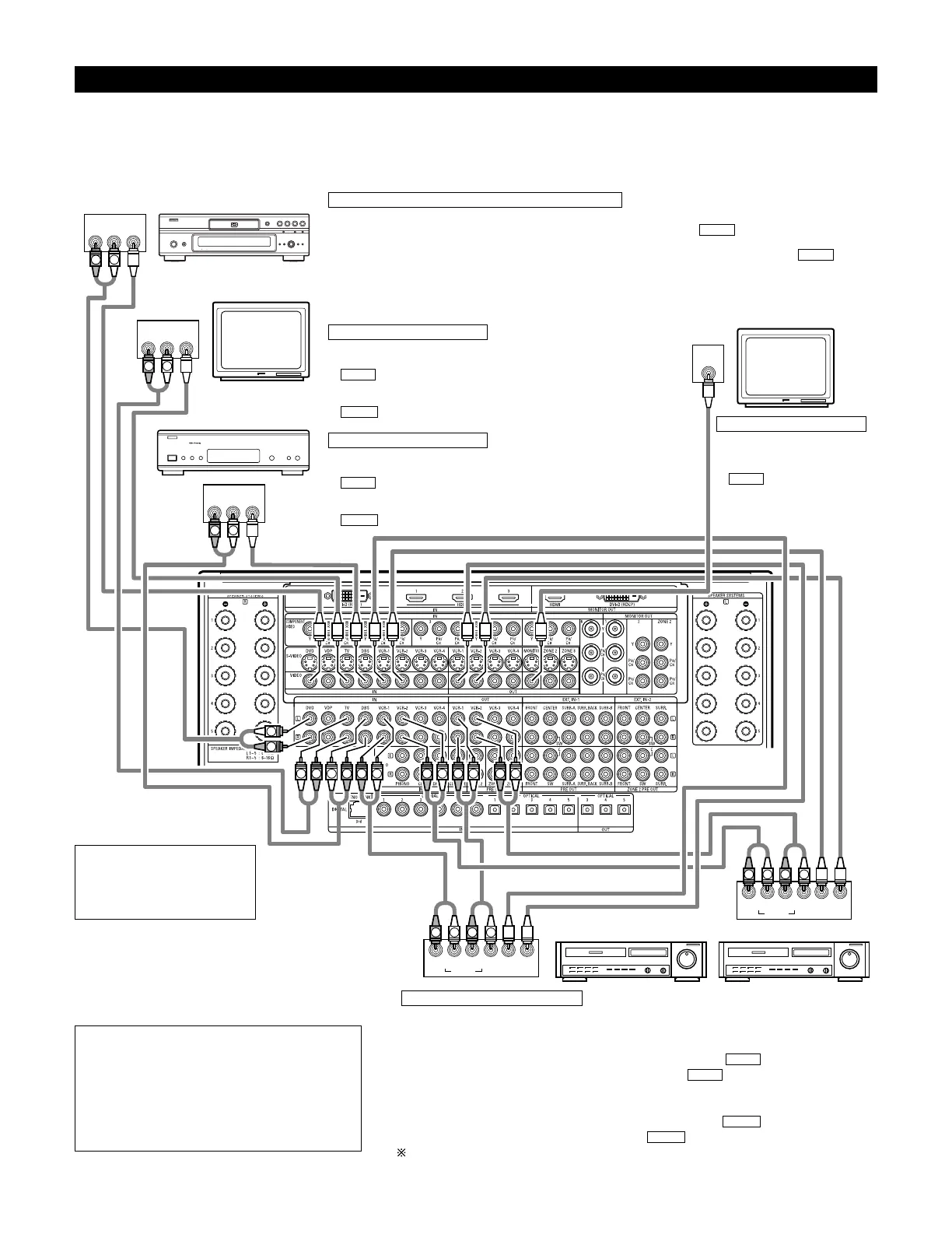

Connecting Video Components
To connect the video signal, connect using a 75 1/ohms video signal cable cord. Using an improper cable can result in a drop in picture quality.
When making connections, also refer to the operating instructions of the other components.
The AVR-5805 is equipped with a function for up and down converting video signals. (See page 13)
The signal connected to the video signal terminal is output to the S-Video and component video monitor out terminals.
But the REC OUT terminals have no conversion function, so when recording connect the appropriate video terminals.
R OUT
VIDEO
OUT
L
AUDIO
R OUT
VIDEO
OUT
L
AUDIO
R OUT IN
AUDIO
VIDEO
OUT IN
LRL
R OUT IN
AUDIO
VIDEO
OUT IN
LRL
R OUT
VIDEO
OUT
L
AUDIO
IN
VIDEO
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
B
TV
DVD player or video disc player (VDP), etc.
Monitor TV
Connecting a TV tuner
TV
Connect the TV’s tuner’s video output jack (VIDEO OUTPUT) to the
(yellow) TV IN jack using a 75 1/ohms video coaxial pin plug
cord.
Connect the TV’s tuner’s audio output jacks (AUDIO OUTPUT) to the
TV IN jacks using pin plug cords.
AUDIO
VIDEO
C
onnecting a DVD player or a video disc player (VDP)
DVD
Connect the video disc player’s video output jack (VIDEO OUTPUT) to the (yellow) DVD IN jack using a
75 1/ohms video coaxial pin plug cord.
Connect the video disc player’s analog audio output jacks (ANALOG AUDIO OUTPUT) to the DVD IN
jacks using pin plug cords.
VDP can be connected to the VDP jacks in the same way.
AUDIO
VIDEO
MONITOR OUT
Connect the TV’s video input
jack (VIDEO INPUT) to the
MONITOR OUT jack
using a 75 1/ohms video
coaxial pin plug cord.
VIDEO
Note on connecting the digital
input jacks
Only audio signals are input to
the digital input jacks. For details,
see page 10.
Video deck 2Video deck 1
There are four sets of video deck (VCR) jacks, so four video decks can be connected for
simultaneous recording or video copying.
Video input/output connections:
Connect the video deck’s video output jack (VIDEO OUT) to the (yellow) VCR-1 IN jack,
and the video deck’s video input jack (VIDEO IN) to the (yellow) VCR-1 OUT jack using
75 1/ohms video coaxial pin plug cords.
Connecting the audio output jacks
Connect the video deck’s audio output jacks (AUDIO OUT) to the VCR-1 IN jacks, and the
video deck’s audio input jacks (AUDIO IN) to the VCR-1 OUT jacks using pin plug cords.
Connect other video decks to the VCR-2, VCR-3 or VCR-4 jacks in the same way.
AUDIO
AUDIO
VIDEO
VIDEO
Connecting the video recorders
Connecting a monitor TV
Connecting a DBS tuner
DBS
Connect the DBS tuner’s video output jack (VIDEO OUTPUT) to the
(yellow) DBS IN jack using a 75 1/ohms video coaxial pin
plug cord.
Connect the DBS tuner’s audio output jacks (AUDIO OUTPUT) to the
DBS IN jacks using pin plug cords.
AUDIO
VIDEO
NOTE:
Connecting a LD (laser disc) player with a Dolby
Digital RF Output.
The AVR-5805 does not have a DD RF demodulator
function. Therefore, you need to use a commercially
available outboard DD RF demodulator and connect its
digital output to one of the AVR-5805 available digital
inputs. Refer to the demodulator’s owner’s manual for
further information.
DBS tuner
