152
MULTI ZONE MUSIC ENTERTAINMENT SYSTEM
[1] ZONE2 playback
The AVR-5805 is equipped with pre-out terminals for which the volume is adjustable and video output terminals (composite, S-Video and
component) as the ZONE2 output terminals.
A separately sold power amplifier or premain amplifier can be connected to enjoy ZONE2 playback.

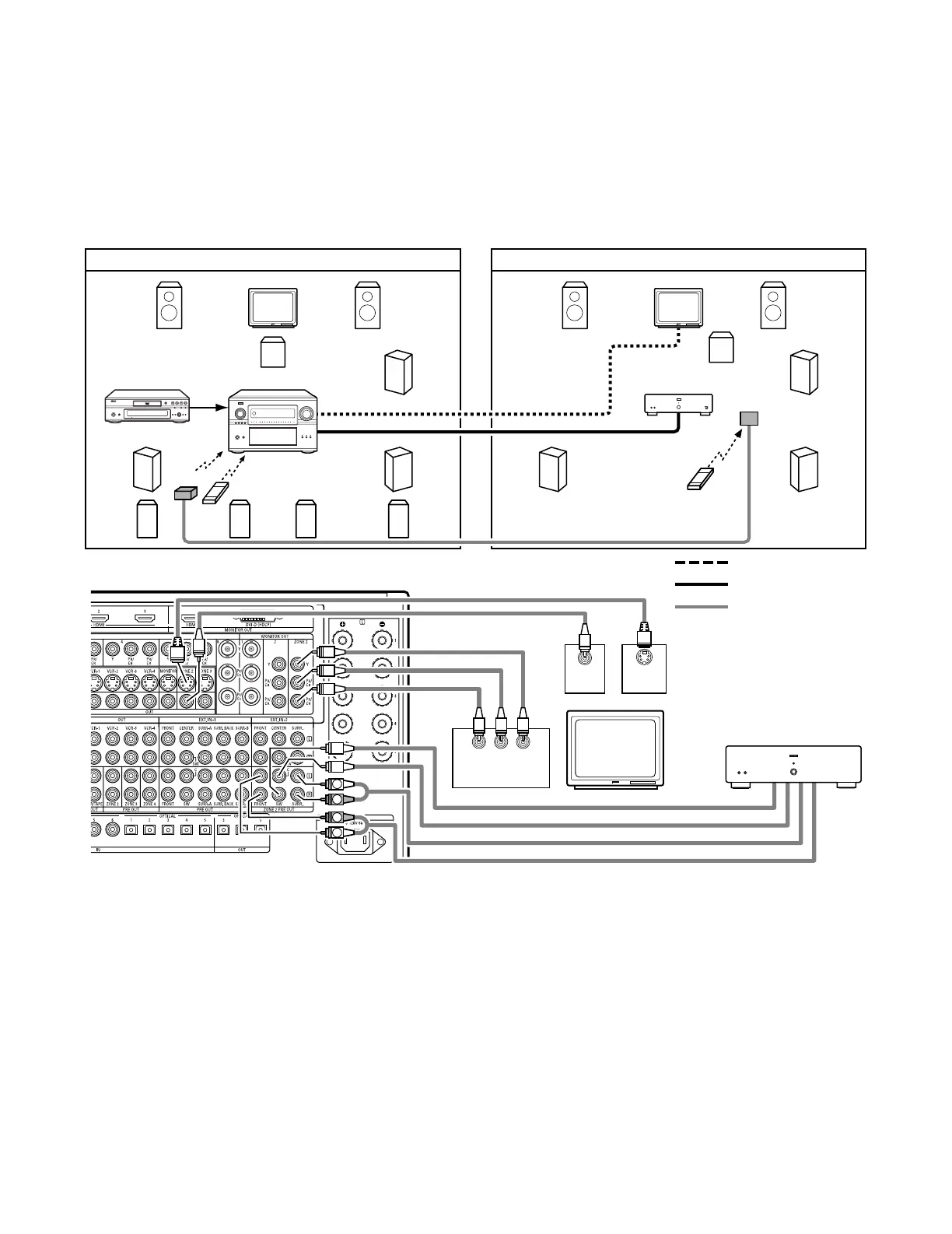

2 ZONE2 5.1-channel system
• 5.1 channel playback is possible in ZONE2 if “5.1CH” is selected for the ZONE2 playback channel setting at “7-1. Channel Setup” (pages
97~100) in the System Setup Menu. (Default setting of ZONE2 channel is “5.1CH”.)
AVR-5805DVD player
Input
RC-616
Monitor
MAIN ZONE 9.1-channel system
ZONE2
AUDIO OUT
(VARIABLE OUT)
ZONE2
VIDEO OUT
SYSTEM REMOTE
CONTROL UNIT RC-995
Integrated amplifier or
power amplifier
Monitor
ZONE2 5.1-channel system
RC-617
PROGRAMMABLE
REMOTE CONTROL UNIT
C
C
FL FR
SL
A
SW
SR
A
FL FR
SL
SW
SR
B
SB
R
SR
B
SB
L
SL
B
PB
COMPONENT
VIDEO IN
YPR
VIDEO
IN
S-VIDEO
IN
L
R
R
L
MULTI SOURCE AUDIO signal cable
Monitor TV
Integrated amplifier or
power amplifier
Subwoofer
Center
Surround
Front
ZONE2 VIDEO signal cable
ROOM-TO-ROOM REMOTE CONTROL
SYSTEM (separately sold) control line
To Next Page
