Denon AVR-5805 User Manual

153
PB
COMPONENT
VIDEO IN
YPR
VIDEO
IN
S-VIDEO
IN
L
R
R
L
R
L
Monitor TV
Integrated amplifier or
power amplifier
Front
Subwoofer
Center
Surround
MULTI SOURCE AUDIO signal cable
ZONE2 VIDEO signal cable
ROOM-TO-ROOM REMOTE CONTROL
SYSTEM (separately sold) control line
Surround back

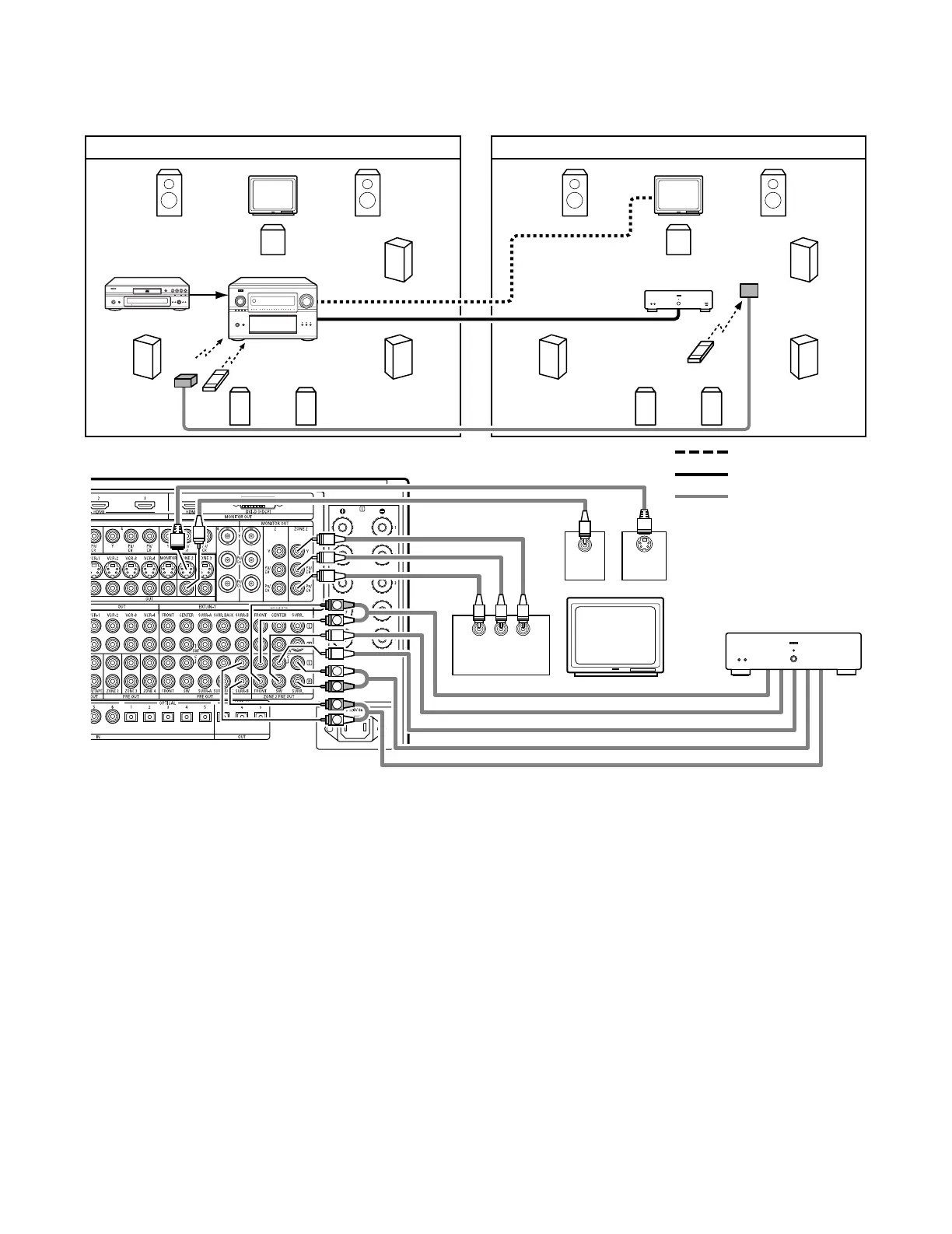

2 ZONE2 7.1-channel system
• 7.1 channel playback is possible in ZONE2 if “7.1CH” is selected for the ZONE2 channel setting at “7-1. Channel Setup” in the System
Setup Menu.
AVR-5805DVD player
Input
RC-616
Monitor
MAIN ZONE 7.1-channel system
ZONE2
AUDIO OUT
(VARIABLE OUT)
ZONE2
VIDEO OUT
SYSTEM REMOTE
CONTROL UNIT RC-995
Integrated amplifier or
power amplifier
Monitor
ZONE2 7.1-channel system
RC-617
PROGRAMMABLE
REMOTE CONTROL UNIT
C C
FL FR
SL
SW
SR
FL FR
SL
SW
SR
B
SB
R
SB
L
SB
R
SB
L
